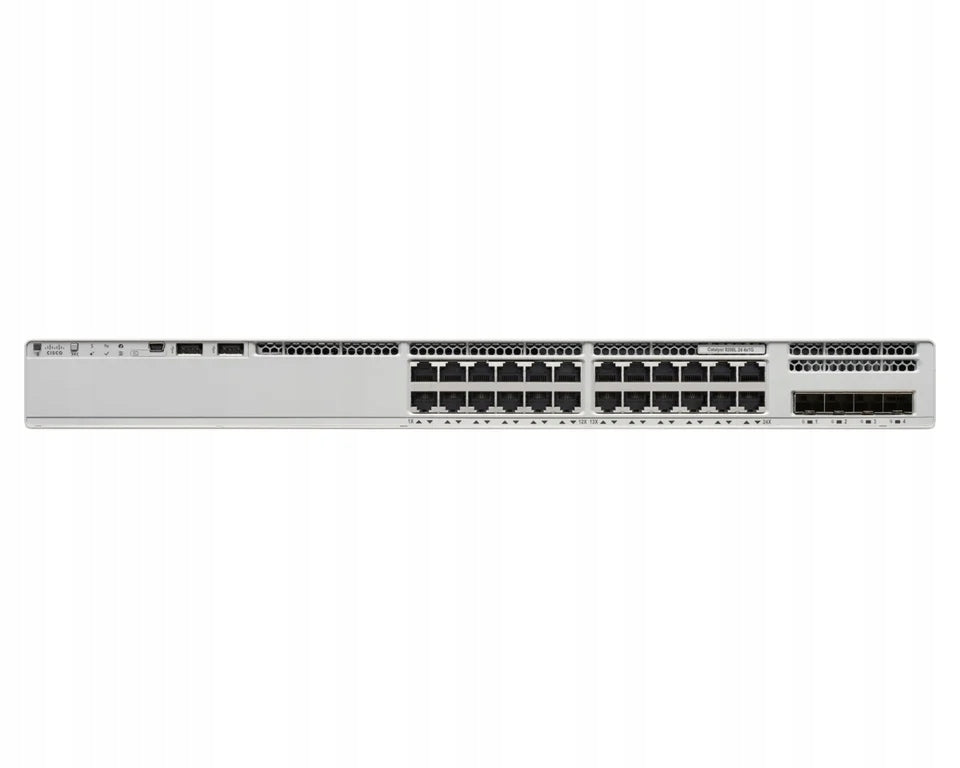

Valdomas tinklo komutatorius Cisco Catalyst C9200L, L3, Gigabit Ethernet (10/100/1000)

Trumpai apie prekę

Prekė: Valdomas tinklo komutatorius Cisco Catalyst C9200L, L3, Gigabit Ethernet (10/100/1000). Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Cisco
• Modelis: C9200L

Cisco Catalyst C9200L. Switch Type: Managed, Switch Layer: L3. Basic RJ-45 Ethernet Switching Ports Type: Gigabit Ethernet (10/100/1000), Basic RJ-45 Switching Number of Ethernet Ports: 24. Full duplex. Address table size: 16000 inputs, Routing/switching throughput: 128 Gbit/s. Communication standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE... Power connector: AC input socket. PoE support

✏️ Key Technical Specifications:

• Data transfer - Routing/switching capacity: 128 Gbit/s
• Data transfer - Forwarding rate: 95.23 Mpps
• Data transfer - Address table size: 16000 entries
• Data transfer - Packet buffer memory: 4.1 MB
• Multicast features - Multicast support: Yes
• Multicast features - MAC address table (multicast): 1000 entries
• Multicast features - IPv4 multicast entries: 3000
• Multicast features - IPv6 multicast entries: 1500
• Power over Ethernet (PoE) - Fast Ethernet (PoE) ports quantity: 24
• Power over Ethernet (PoE) - Power over Ethernet Plus (PoE +) ports quantity: 24
• Performance - Flash memory size: 4000 MB
• Features - Product color: Gray
• Performance - Copper Ethernet cabling technology: 10BASE-T, 10GBASE-T, 100BASE-TX, 1000BASE-T
• Features - Input current: 12 - 6 A
• Features - Communication standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
• Features - Full duplex: Yes
• Performance - Memory type: DRAM
• Weight & dimensions - Product width: 445 mm
• Weight & dimensions - Product height: 44 mm
• Weight & dimensions - Product depth: 350 mm
• Weight & dimensions - Product weight: 5.5 kg
• Certifications - Certificates: RoHS, IEC 60950-1, UL 60950-1, CAN/CSA C22.2 No. 60950-1, EN 60950-1, AS/NZS 60950.1, Class I Equipment
• Memory - Internal memory capacity: 2000 MB
• Network - 10G support: Yes
• Network - Jumbo Frames support: Yes
• Network - Jumbo Frames expansion: 9198
• Network - Flow control support: Yes
• Network - IP routing: Yes
• Network - Routing table: 3000
• Network - Spanning Tree Protocol: Yes
• Network - VLAN support: Yes
• Network - Number of VLANs: 1024
• Ports & interfaces - Basic switching RJ-45 Ethernet ports quantity: 24
• Ports & interfaces - Basic switching Ethernet RJ-45 ports type: Gigabit Ethernet (10/100/1000)
• Ports & interfaces - Fast Ethernet (copper) ports quantity: 24
• Ports & interfaces - Power connector: AC input socket
• Management features - Switch type: Managed
• Management features - Switch layer: L3
• Management features - Quality of Service (QoS) support: Yes
• Management features - Web-based management: Yes
• Management features - Traffic classification: Yes
• Management features - ARP inspection: Yes
• Management features - Command-line interface (CLI) configuration: Yes
• Management features - MIB support: BRIDGE-MIB, CISCO-BRIDGE-EXT-MIB, CISCO-BULK-FILE-MIB, CISCO-CABLE-DIAG-MIB, CISCO-CALLHOME-MIB, CISCO-CEF-MIB, CISCO-CIRCUIT-INTERFACE-MIB, CISCO-CONFIG-COPY-MIB, CISCO-CONFIG-MAN-MIB, CISCO-DEVICE-LOCATION-MIB, CISCO-DHCP-SNOOPING-MIB, CISCO-EIGRP-MIB, CISCO-EMBEDDED-EVENT-MGR-MIB, CISCO-ENTITY-FRU-CONTROL-MIB, CISCO-ENTITY-SENSOR-MIB, CISCO-ENTITY-VENDORTYPE-OID-MIB, CISCO-ERR-DISABLE-MIB, CISCO-FLASH-MIB, CISCO-FLOW-MONITOR-MIB, CISCO-FTP-CLIENT-MIB, CISCO-HSRP-EXT-MIB, CISCO-HSRP-MIB, CISCO-IETF-BFD-MIB, CISCO-IETF-PPVPN-MPLS-VPN-MIB, CISCO-IETF-PW-MPLS-MIB, CISCO-IF-EXTENSION-MIB, CISCO-IGMP-FILTER-MIB, CISCO-IMAGE-LICENSE-MGMT-MIB, CISCO-IMAGE-MIB, CISCO-IP-CBR-METRICS-MIB, CISCO-IP-STAT-MIB, CISCO-IP-TAP-MIB, CISCO-IP-URPF-MIB, CISCO-IPSEC-FLOW-MONITOR-MIB, CISCO-IPSEC-MIB, CISCO-IPSEC-PROVISIONING-MIB, CISCO-IPSLA-AUTOMEASURE-MIB, CISCO-IPSLA-ECHO-MIB, CISCO-IPSLA-JITTER-MIB, CISCO-L2-CONTROL-MIB, CISCO-L2L3-INTERFACE-CONFIG-MIB, CISCO-LAG-MIB, CISCO-LICENSE-MGMT-MIB, CISCO-LOCAL-AUTH-USER-MIB, CISCO-MAC-NOTIFICATION-MIB, CISCO-MDI-METRICS-MIB, CISCO-MEDIA-METRICS-MIB, CISCO-MEMORY-POOL-MIB, CISCO-MPLS-LSR-EXT-STD-MIB, CISCO-NBAR-PROTOCOL-DISCOVERY-MIB, CISCO-NHRP-EXT-MIB, CISCO-NTP-MIB, CISCO-PAGP-MIB, CISCO-PORT-SECURITY-MIB, CISCO-PORT-STORM-CONTROL-MIB, CISCO-POWER-ETHERNET-EXT-MIB, CISCO-PRIVATE-VLAN-MIB, CISCO-PROCESS-MIB, CISCO-PRODUCTS-MIB, CISCO-RF-MIB, CISCO-RTP-METRICS-MIB ,CISCO-RTTMON-ICMP-MIB, CISCO-STACKWISE-MIB, CISCO-STP-EXTENSIONS-MIB, CISCO-SYSLOG-MIB, CISCO-TCP-MIB, CISCO-UDLDP-MIB, CISCO-VLAN-IFTABLE-RELATIONSHIP-MIB, ENTITY-MIB, HC-ALARM-MIB, HC-RMON-MIB, IEEE8023-LAG-MIB, IF-MIB, IP-FORWARD-MIB, IP-MIB, LLDP-EXT-MED-MIB, LLDP-MIB, MAU-MIB, MPLS-L3VPN-STD-MIB, MPLS-LSR-STD-MIB, MPLS-VPN-MIB, OLD-CISCO-CHASSIS-MIB, OLD-CISCO-CPU-MIB, OLD-CISCO-INTERFACES-MIB, OLD-CISCO-IP-MIB, OLD-CISCO-MEMORY-MIB, OLD-CISCO-SYS-MIB, OLD-CISCO-TCP-MIB, OLD-CISCO-TS-MIB, POWER-ETHERNET-MIB, RFC1213-MIB, RMON-MIB, RMON2-MIB, SMON-MIB, SNMPv2-MIB, SONET-MIB, TCP-MIB, UDP-MIB
• Construction - EMC standards: 47 CFR Part 15, CISPR 22 Class A, CISPR 32 Class A, CNS 13438, EN 300 386, EN 55022 Class A, EN 55032 Class A, EN61000-3-2, EN61000-3-3, ICES-003 Class A, KN 32, TCVN 7189 Class A, V-3 Class A, CISPR 24, EN 300 386, EN 55024, KN 35, TCVN 7317
• Power - Power supply included: Yes
• Power - Redundant Power Supply (RPS) support: Yes
• Protection - Encryption/security: 128-bit AES
• Power - AC input voltage: 100 - 240 V
• Power - AC input frequency: 50 - 60 Hz
• Protection - Access Control List (ACL): Yes
• Power - Power consumption: 125 W
• Power - PoE support: Yes
• Protocols - Management protocols: SNMPv1/v2c/v3
• Protocols - Routing protocol: CDP, EIGRP, OSPF, RIP, VRRP
• Package details - Package type: Box
• Logistics data - Harmonized System (HS) code: 85176990
• Operating conditions - Operating altitude: 0 - 3000 m
• Operating conditions - Operating relative humidity: 5 - 90%
• Operating conditions - Storage temperature: -40 - 70 °C
• Operating conditions - Operating temperature: -5 - 45 °C
• Classification - Manufacturer code: C9200-24P-A
• Classification - EAN: 889728168304
• Classification - Product ID: 66519991
