Valdomas Fast Ethernet tinklo komutatorius IE-SW-VL08MT-6TX-2SC

Trumpai apie prekę

Prekė: Valdomas Fast Ethernet tinklo komutatorius IE-SW-VL08MT-6TX-2SC. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Weidmüller
• Modelis: 1344770000

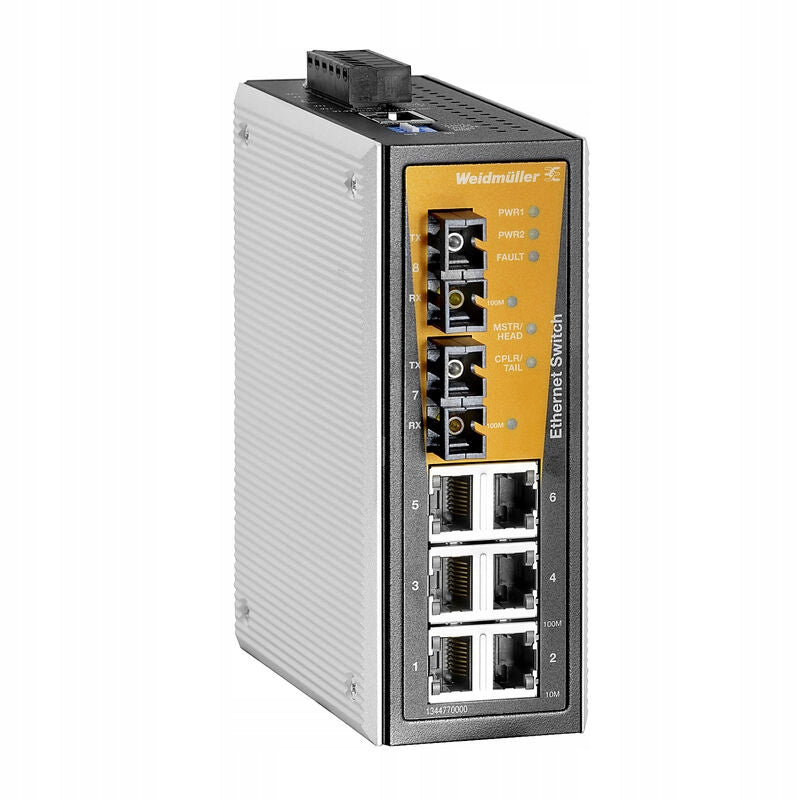

The industrial managed switch Weidmüller IE-SW-VL08MT-6TX-2SC is designed to work in demanding industrial environments where reliability, data transmission security and resistance to harsh operating conditions are crucial. The device belongs to the Value Line series, offering advanced network management features in a robust IP30 metal housing.

The switch is equipped with 6 Fast Ethernet RJ45 ports and 2 SC Multimode fiber ports, enabling stable communication over a distance of up to 5 km. With support for Turbo-Ring and Turbo-Chain redundancy with a recovery time of less than 20 ms, the device ensures high network availability and minimizes the risk of downtime.

Advanced management features include VLAN, QoS, SNMP, RMON, port mirroring, network monitoring, email alarms, and web browser, SNMP, or serial console management. Switch also supports popular industrial protocols such as PROFINET, EtherNet/IP and Modbus TCP.

The robust design allows it to operate at temperatures from -40°C to +75°C, making the device perfect for industrial automation, power engineering, transport and infrastructure installations.

Most important features:

• 6 ports RJ45 Fast Ethernet 10/100BaseT(X)
• 2 SC Multimode Fiber Optic Ports
• Managed industrial switch
• Turbo-Ring and Turbo-Chain redundancy (< 20 ms)
• Support VLAN, QoS, SNMP, RMON and IGMP
• Compatible with PROFINET, EtherNet/IP and Modbus TCP
• Management by Web, SNMP, Telnet and RS-232
• Metal housing IP30
• Operating temperature range: -40°C to +75°C
• DIN rail mounting
• Dual redundant 12/24/48 V DC power supply
• Alarms by email, SNMP Trap and relay
• Industrial and ATEX certificates
• Manufacturer's Warranty: 5 years

Model: IE-SW-VL08MT-6TX-2SC

Catalog No.: 1344770000

Specifications
