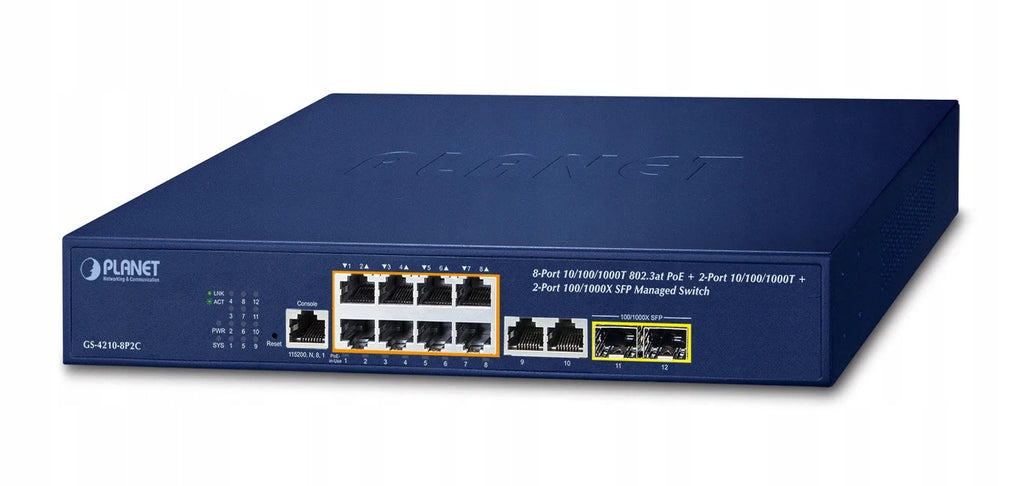

Valdomas 8 prievadų Gigabit Ethernet L2/L4 komutatorius PLANET, IPv4/IPv6

Trumpai apie prekę

Prekė: Valdomas 8 prievadų Gigabit Ethernet L2/L4 komutatorius PLANET, IPv4/IPv6. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Planet
• Modelis: GS-4210-8P2C

PLANET IPv4/IPv6, 8-Port Managed. Switch Type: Managed, Switch Layer: L2/L4. Basic RJ-45 Ethernet Switching Ports Type: Gigabit Ethernet (10/100/1000), Basic RJ-45 Switching Number of Ethernet Ports: 10, Number of SFP Modules Installed: 2. Full duplex. Address table size: 8000 inputs, Routing/switching throughput: 24 Gbit/s. Communication standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE... PoE support. Rack Mount Capabilities, Layout: 1U

✏️ Key Technical Specifications:

• Construction - Rack Mounting Capability: Yes
• Construction - Number of Fans: 1 fan
• Construction - Layout: 1U
• Construction - Housing Material: Metal
• Construction - LED Indicators: Yes
• Power over Ethernet (PoE) - PoE Support: Yes
• Power over Ethernet (PoE) - Total Power over Ethernet (PoE) Budget: 120 W
• Network - Communication Standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
• Network - 10G Support: No
• Network - Full Duplex: Yes
• Network - Half Duplex: Yes
• Network - Auto MDI/MDI-X: Yes
• Network - Spanning Tree Protocol: Yes
• Network - Auto-detection: Yes
• Network - VLAN Support: Yes
• Performance - Reset Button: Yes
• Data Transfer - Routing/Switching Capacity: 24 Gbps
• Data Transfer - Forwarding Rate: 17.85 Mpps
• Data Transfer - MAC Address Table: 8000 entries
• Data Transfer - Store-and-Forward: Yes
• Data Transfer - Jumbo Frames Support: Yes
• Data Transfer - Jumbo Frames Extension: 10000
• Features - Product Color: Blue
• Protection - MAC Address Filtering: Yes
• Protection - System Event Log: Yes
• Protection - IGMP Snooping: Yes
• Protection - SSH/SSL Support: Yes
• Features - Certificates: FCC Part 15 Class A, CE
• Ports & Interfaces - Basic Switching RJ-45 Ethernet Port Quantity: 10
• Ports & Interfaces - Basic Switching Ethernet RJ-45 Port Type: Gigabit Ethernet (10/100/1000)
• Ports & Interfaces - Installed SFP Module Quantity: 2
• Operating Conditions - Heat Dissipation: 525 BTU/h
• Operating Conditions - Operating Temperature Range: 0 - 50 °C
• Operating Conditions - Storage Temperature Range: -20 - 70 °C
• Operating Conditions - Relative Humidity Range: 5 - 95%
• Operating Conditions - Allowable Relative Humidity: 5 - 95%
• Power - Power Source: AC
• Power - Input Current: 4 A
• Power - AC Input Frequency: 50 - 60 Hz
• Power - AC Input Voltage: 100 - 240 V
• Management Features - Switch Type: Managed
• Management Features - Switch Layer: L2/L4
• Management Features - Web-based Management: Yes
• Management Features - Quality of Service (QoS) Support: Yes
• Management Features - Traffic Classification: Yes
• Management Features - ARP Inspection: Yes
• Weight & Dimensions - Product Weight: 1.7 kg
• Weight & Dimensions - Product Width: 280 mm
• Weight & Dimensions - Product Depth: 180 mm
• Weight & Dimensions - Product Height: 44 mm
• Classification - Manufacturer Part Number: GS-4210-8P2C
• Classification - EAN: 4711605286374
• Classification - Product ID: 96561240
