Valdiklis KALEA-INFORMATIQUE Lsi Oem 9300-16i PCIe 3.0, 16 SAS/SATA prievadų

Trumpai apie prekę

Prekė: Valdiklis KALEA-INFORMATIQUE Lsi Oem 9300-16i PCIe 3.0, 16 SAS/SATA prievadų. Kategorija: Tinklo plokštės.

• Gamintojas: no brand
• Modelis: 11549046

Product Description

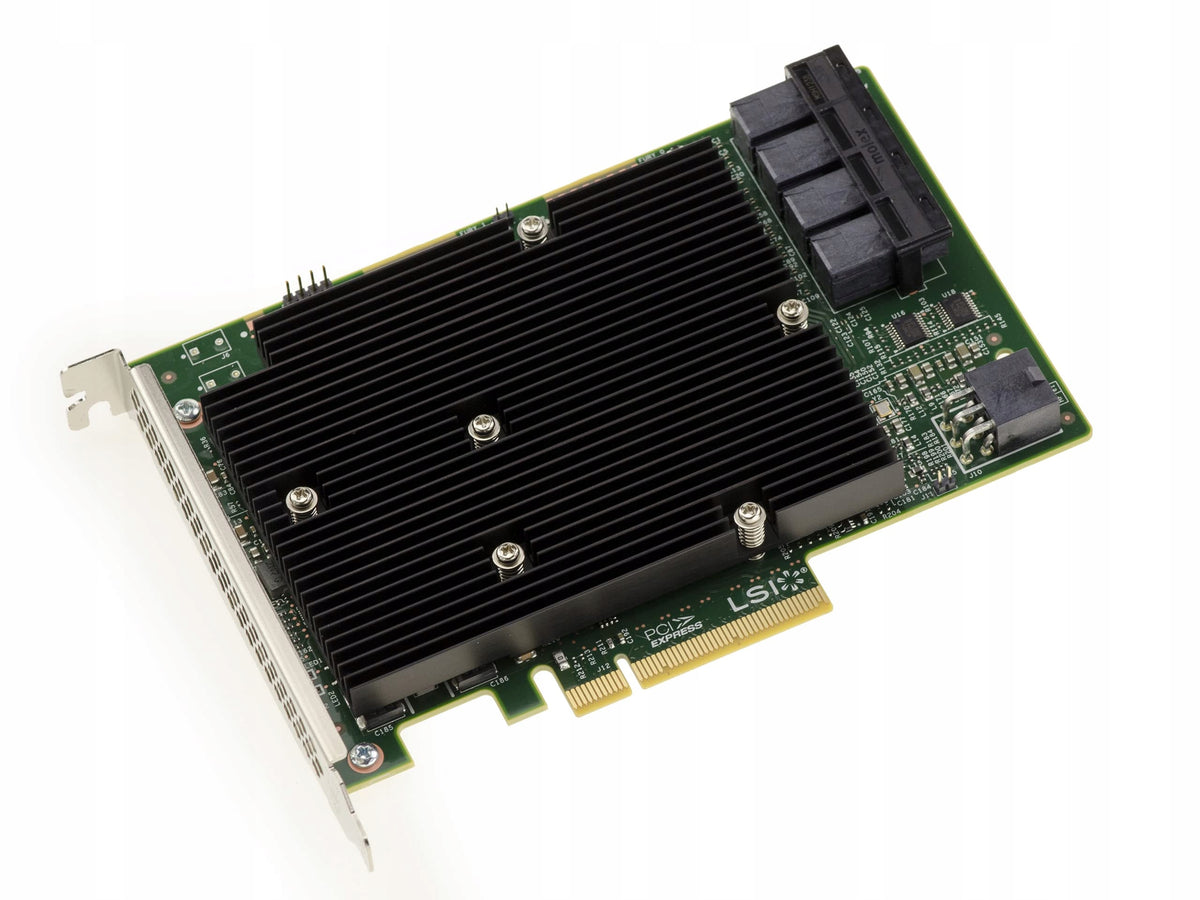

The LSI OEM 9300-16i controller card is an advanced solution for extending servers and workstations with the ability to support multiple hard drives. This model features PCIe 3.0 x8 interface and allows you to connect up to 16 SAS/SATA devices with four mini SAS HD SFF8643 connectors. It is designed for applications that require high-performance data transmission and reliable operation of disk systems.

• Interface: PCI-E 3.0 x8
• Support for up to 16 SAS/SATA drives
• OEM version – neutral packaging, drivers to download from the manufacturer’s website
• Maximum bandwidth: 12 Gbps (SAS), 6 Gbps (SATA)
• System Compatibility: Windows, Linux Red Hat, Linux SUSE Enterprise Server (SLES), Solaris, VMware
• Equipped with two LSI SAS 3008 controllers
• Supports up to 1024 SAS/SATA endpoint devices
• Form Factor: High Profile
• PCIe 6-pin power connector

Application

The card is ideal for servers that require a large number of high-performance SAS/SATA ports, e.g. in data storage environments, file servers, disk arrays and workstations for professional use.

Special features

• Ability to connect and manage multiple drives with a single controller
• High performance data transfer thanks to PCIe 3.0 interface and support for 12Gb/s SAS technology

Contents of the pack

• OEM 9300-16i LSI Controller Card
• Instructions for use in electronic form (downloadable from the manufacturer's website)

Attention

Control software and updates available on the KALEA-INFORMATIQUE website.

Technical parameters

• Producer: KALEA-INFORMATIQUE
• Model: SAS9300-16i 03-25600-01B
• Manufacturer code: 11549046
• Interface: PCI-E 3.0 x8
• Supported drives: SATA, SAS
• Maximum number of devices: 1024 (SAS/SATA)
• Number of ports: 16 (4 x SFF8643)
• OS support: Windows, Linux, Solaris, VMware
• Power Connector: PCIe 6-pin
• Form Factor: High Profile

Specifications
