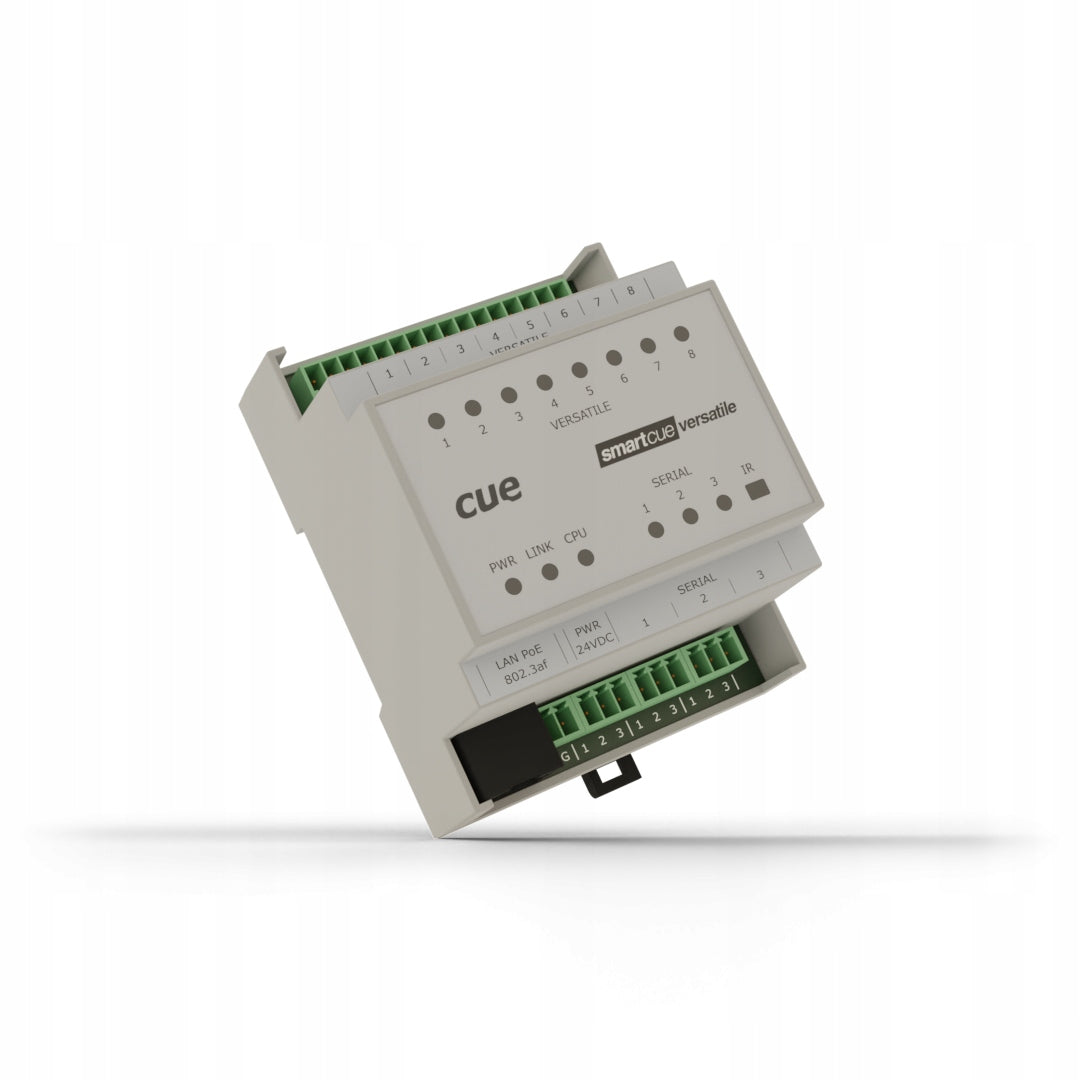

Valdiklis CUE smartCUE-versatile-d CS0492

Trumpai apie prekę

Prekė: Valdiklis CUE smartCUE-versatile-d CS0492. Kategorija: Vaizdo konferencijų rinkiniai ir kameros.

• Gamintojas: no brand
• Modelis: CS0492

Product code: CS0492

• Wired LAN 10/100 BaseT for communication in CUEnet2
• IP device control and emails are not supported
• 3x bidirectional RS-232/485 serial port
• 8x Versatile Port
• ARM® Processor Platform
• Built-in real-time clock
• IR code capture sensor
• Indicators on the front panel
• Power over Ethernet or 24 VDC power supply
• Plastic housing for DIN rail, width 4 modules
• Web server and administrator websites for configuration

smartCUE-versatile-d is a lightweight controller with eight universal ports and three two-way RS-232/485 control ports. Fully compatible with CUE touch panels, this controller can work as a standalone device.

Depending on the application, each universal port can be used as an input or output.

Single-cable Ethernet connection provides easy integration into your network. The controller is equipped with Power over Ethernet (PoE) technology, which allows you to transfer data and power using an Ethernet network cable. The controller can be easily mounted on a DIN rail or on a wall.

This controller is equipped with a web server and allows configuration through a standard web browser. Unit programming is based on the standard CUE Cue Visual Composer development tool.

Control ports

• 3x

  Bi-directional RS-232/485 port

• 8x

  Versatile port

Network

• 10/100 BaseT Ethernet, RJ-45 connector
• Communication system based on CUEnet2 only
• IP device control not supported
• Emails not supported

Internal IR sensor

• IR code capture

LED indicators

• Blue Power - indicates power is presented and the unit is ready.
• Green Link - indicates network link and activity.
• Yellow CPU - confirms the system default function is performed.
• Green Versatile - indicates the output is closed.
• Yellow Versatile - indicates IR or serial data is being transmitted.
• Green Serial - indicates serial data is being transmitted.
• Red Serial - indicates serial data is being received.

Button

• System Default sets default IP address and password.

Real time and date

• RTC with battery backup

Software technologies

• Admin Web
• XPL2 inside

Power supply

• 24 VDC (+/-20%), 3 W, 2-pin 3.5 mm connector
• Power over Ethernet, 802.3af compatible

Physical

• DIN rail plastic enclosure compatible with DIN EN 50022
• Width 4 modules
• Dimensions 70 x 90 x 58 mm / 2.8” x 3.5” x 2.3”
• Weight 0.2 kg / 0.5 lb

Environment conditions

• Operating temperature 10° to 40° C
• Storage temperature 0° to 60° C
• Relative humidity 10% to 90% non-condensing

• Controller smartCUE-versatile-d
• Connector set
• Ethernet cable
• DIN rail compatible power supply 24 VDC / 15 W
• QuickStart
