Vaizdo stebėjimo XVR įrašymo įrenginys AHD TVI 2MPx HiLook Hikvision

Trumpai apie prekę

Prekė: Vaizdo stebėjimo XVR įrašymo įrenginys AHD TVI 2MPx HiLook Hikvision. Kategorija: Garso įrašymo įrenginiai.

• Gamintojas: Hikvision
• Modelis: DVR-4CH-1MP

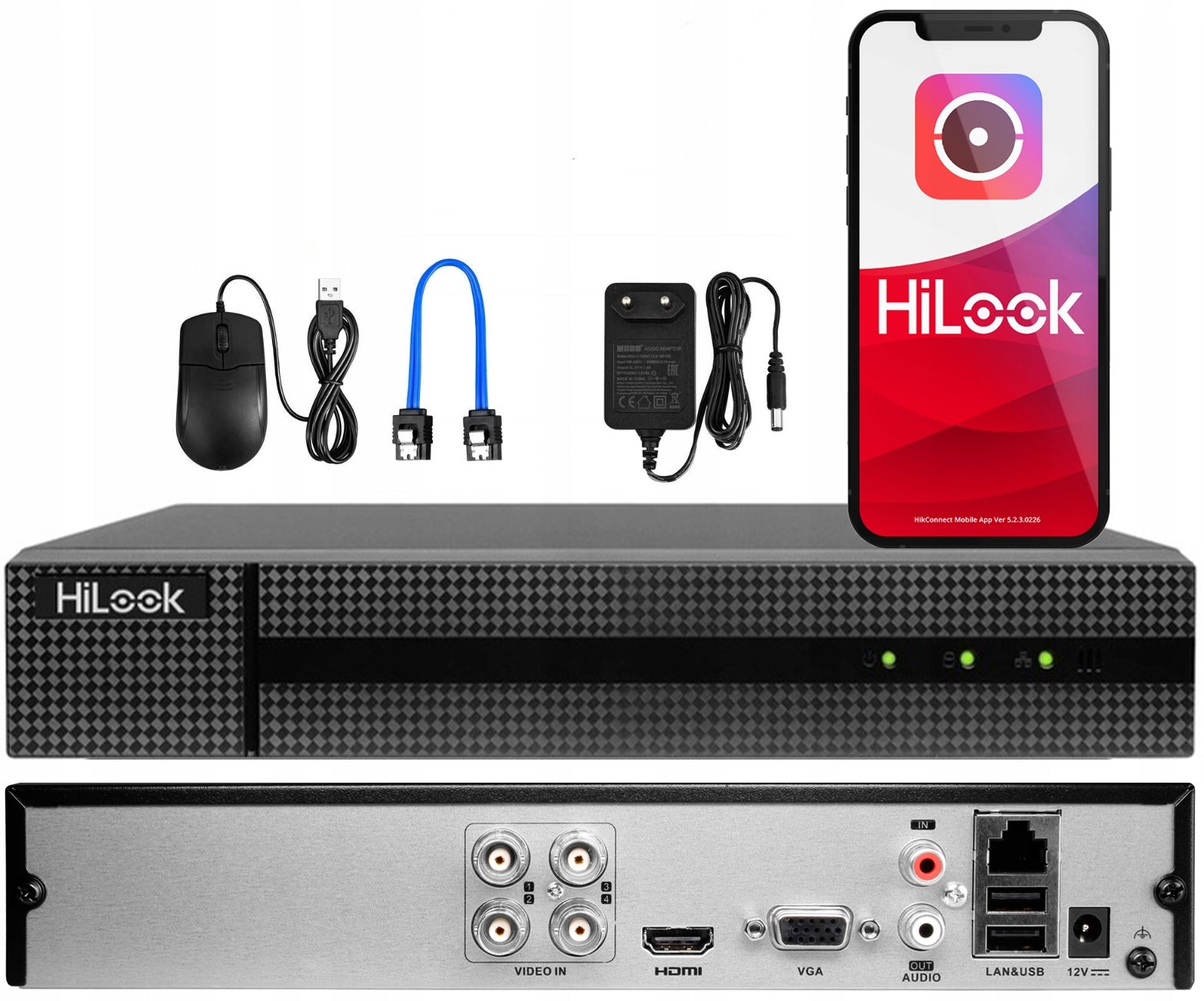

The DVR-204G-K1 is a 4-channel hybrid recorder with the ability to support cameras in up to 2 Mpx resolution (in TVI mode). The recorder can handle up to 5 cameras - 4 TurboHD cameras and 1 IP camera.

The device is dedicated to work in HiLook monitoring systems. Thanks to its small size, advanced functionality and compatibility with various transmission standards, it is ideal for creating and expanding small and medium-sized video surveillance systems.

Included with the recorder is a power supply and a wired mouse.

• Number of channels: 4 (4in1 AHD/CVBS/TVI/CVI)
• Additional IP channels: 1
• Max. camera resolution: 2Mpx
• Decoding: 1080p Lite
• Video compression: H.265 Pro+/H.265Pro/H.265/H.264+/H.264
• Intelligent functions: motion detection 2.0 - human/vehicle object filtering
• Ethernet Interface: 1x RJ45 10M/100M
• Video outputs: 1xHDMI, 1xVGA
• USB connectors: 2x USB 2.0
• Number of HDDs: 1
• Max. Disk capacity: 4TB
• Remote support: iVMS-4200, Web browser, Hik-Connect
• Power supply: 12VDC
• Operating temperature: from -10C to +55C
• Dimensions: 200 × 200 × 45 mm

HiLook monitoring systems can be controlled, configured, and operated using the intuitive HiLook App mobile application for smartphones and tablets, and the iVMS-4200 software for PCs. This gives the user constant control and supervision over the monitored area from anywhere in the world with internet access. The app and software allow you to:

• View live video
• Remotely play back recordings
• Create scenarios and motion detection rules
• Control PTZ (Pan, Tilt, Zoom) cameras
• Receive notifications about events within the system

The app uses P2P cloud technology, so the system doesn't need port forwarding on the router.

The recorder supports motion detection from network cameras. This feature allows you to send instant notifications to the user (in the app or software) when changes are detected in the camera's view. It also allows you to search recordings for detected motion in the area protected by the monitoring system.

The HiLook recorder supports an efficient image compression standard, designated H.265. This standard is a direct successor to the popular H.264 technology and allows for almost double the bandwidth load. This translates into significant space saving on the hard disk and extending the archiving time of recordings on the disk.

• Number of channels: 4+1
• Max. camera resolution: 2MPx (up to 5MPx for IP)
• Decoding: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@15 fps
• Support video standards: HD-CVI / HD-TVI / AHD / CVBS / IP
• VGA video output: 1ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• HDMI video output: 1ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• HDMI/VGA simultaneous output: Yes
• Audio inputs 1
• Audio outputs 1
• Ethernet interface 1x RJ45 10M/100M
• Remote management application HiLook App (Android, iOS) IVMS-4200 Lite (desktop devices)
• Video compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Audio compression: G.711u
• Support for Intelligent Image Analysis (VCA) Yes - human/vehicle motion flitration
• Network protocols: TCP/IP, PPPoE, DHCP, HiLookVision, DNS, DDNS, NTP, SADP, SMTP, UPnP™, HTTPS
• Storage for 1x SATA hard drives
• Maximum disk capacity: 4TB
• Number of USB ports 2
• Operating temperature -10°C to +55°C
• Power supply 12 V DC
• Dimensions: 200 × 200 × 45 mm
• Weight: < 1Kg

Specifications
