Vaizdo stebėjimo rinkinys HiLook 6Mpx, 6 kameros, judesio aptikimas

Trumpai apie prekę

Prekė: Vaizdo stebėjimo rinkinys HiLook 6Mpx, 6 kameros, judesio aptikimas. Kategorija: IP kameros.

• Gamintojas: HiLook
• Modelis: NVR-8CH-5MP/8P +1TB + IPCAM-T6-30DL 6/8

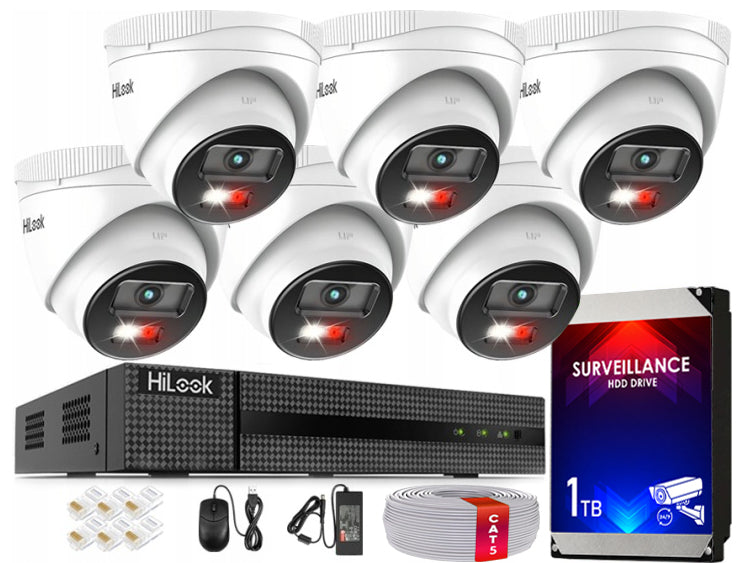

6x Outdoor IP Camera 6Mpx HiLook | 1x 8-Channel PoE Recorder | 1x 1TB Drive | Wiring & Mounting Accessories

✅ IP PoE Surveillance Kit with 6 Hybrid Light Dome Cameras

✅ Expandable System: Supports up to 8 cameras

✅ Excellent Image Quality: Features a 1/2.4'' CMOS sensor with **3200 × 1800p @6Mpx resolution**

✅ Versatile Installation: Cameras are suitable for **indoor and outdoor** use with **IP67 weather resistance**

✅ Easy Camera Setup: Convenient installation with **Power over Ethernet (PoE)**

✅ Built-in Hybrid Light Illuminators:

• Infrared (IR) illuminator for night vision up to **30m**
• White LED light for color night vision up to **20m**

✅ Motion Detection: Receive **app notifications and record important events**

✅ Built-in Microphone for audio recording

✅ **Alarm Filtering Algorithm:** Recognizes people and vehicles to reduce false alerts

✅ Continuous Recording: Supports **loop recording** (overwriting old footage)

✅ 1TB CCTV Hard Drive Included: High-durability drive for continuous recording

✅ Remote Viewing: Access live view and recordings on your **computer, smartphone, or tablet**

✅ P2P (Cloud) Support: Easy remote access without port forwarding or a public IP address

• 6 x Outdoor dome camera 6Mpx - IPCAM-T6-30DL HiLook
• 1 x 8-channel PoE IP recorder - NVR-8CH-5MP/8P HiLook
• 1 x Hard drive for 1TB CCTV (or equivalent Skyhawk/ WD Purple/ Toshiba S300 - subject to availability)
• 1 x UTP twisted pair cable - 30 meters
• 12 x RJ45 plug

The above system has been selected so that its installation is maximally simplified and intuitive. All devices and accessories are fully compatible, and the instructions included in the kit will guide you step by step through the installation and configuration process. And if you encounter any problem, our experts are at your disposal.

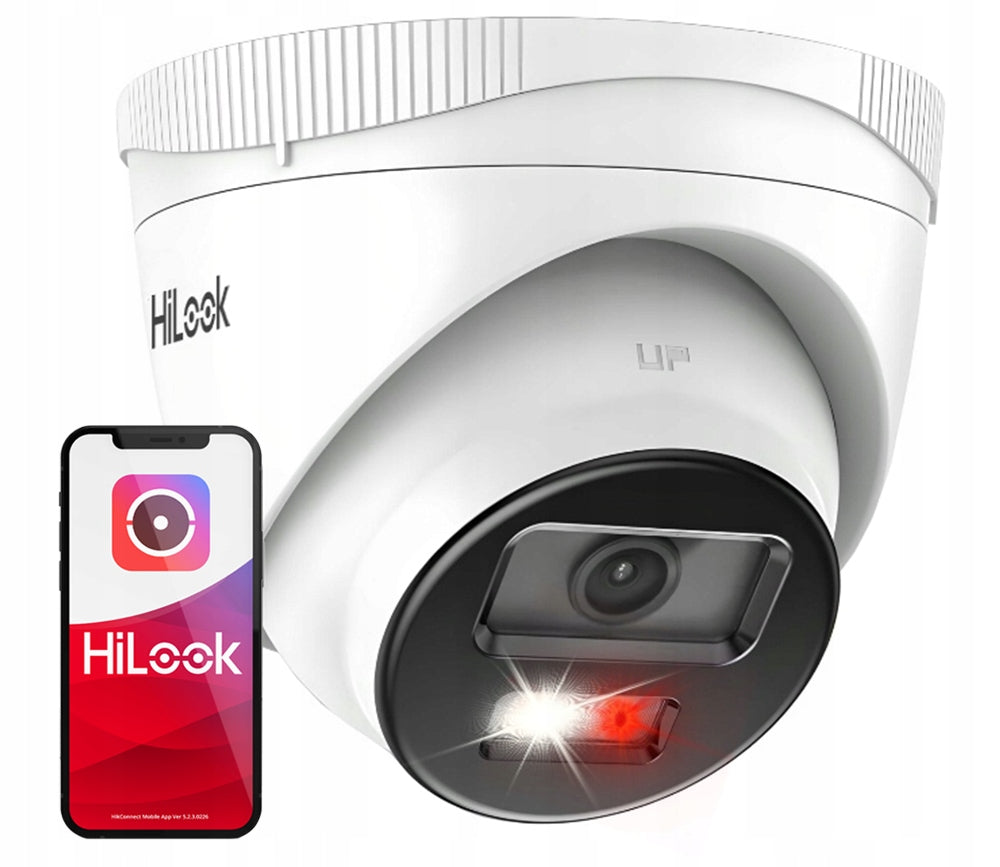

HiLook monitoring systems can be controlled, configured and operated using the intuitive mobile application HiLook App for smartphones and tablets and the iVMS-4200 program for PCs. Thanks to this, the user has constant control and supervision over the monitored space from anywhere on earth with access to the network. The application and program allow you to:

• live image preview
• remote playback of recordings
• creating motion detection scenarios and rules
• control of rotary cameras
• receiving notifications about events within the system

The application uses the P2P cloud, so that the system does not have to have redirected ports on the router.

The cameras in this kit feature innovative **Hybrid Light technology**. With built-in **IR and LED illuminators**, they provide effective night surveillance in both infrared (black and white) and full color modes. The illuminators have a range of **30 meters for IR and 20 meters for LED**.

This ensures a **higher level of security**, allowing for clear identification of objects by color, in any lighting conditions.

The offered camera model has a built-in motion detection algorithm - when detecting moving objects on stage, the camera can send an emergency notification to the program and application.

What’s more, recording in motion detection mode, the camera allows you to save a lot of space on the hard drive, which positively affects its lifespan.

The advantage of the camera is the proprietary technology Motion Detection 2.0, allowing filtering false motion detection alarms and classifying objects on video recordings (human / vehicle).

Thanks to the algorithm, the camera will allow you to:

• Recognize moving people and vehicles with high accuracy.
• Limits the number of false alarms caused by falling leaves, insects, etc.
• Instantly informs about the detection of cars or people in the application by means of a "PUSH" notification

The recorder in the set supports the efficient H.265+ image compression standard. This standard is a direct successor to the popular H.264 technology and allows for almost double the bandwidth load. This translates into significant saving space on the hard disk and extending the archiving time of recordings on the disk.

The cameras included in the set are equipped with PoE (Power over Ethernet) power supply, making their installation extremely simple. Each camera with a focal point in which the recorder is located is connected using a single UTP category 5 cable (twisted pair).

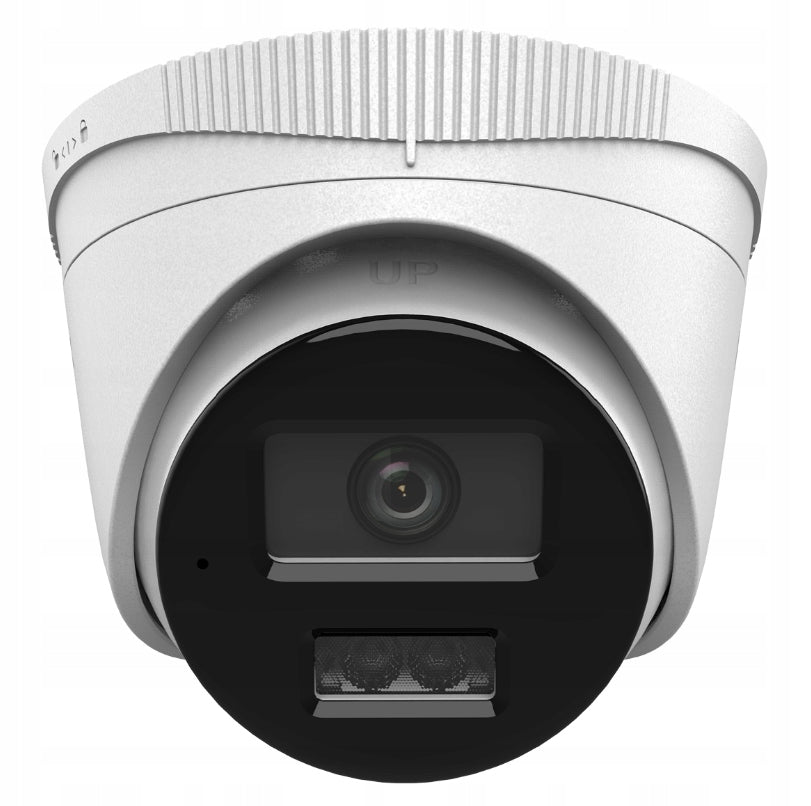

IPCAM-T6-30DL is a network model with a resolution of 6MPx, equipped with a dual illuminator (IR+LED), microphone and built-in image analysis algorithm MD2.0.

Technical parameters:

• Converter: 1/2.5” 6MPx CMOS
• Recording resolution: 3200 × 1800 @20FPS
• Lens: wide-angle 2,8 mm
• Recording angle: ~113°
• Image compression: H.265, H.264+, H.264, MJPEG
• Wide dynamic range: True WDR 120dB
• Digital Noise Cancellation: Yes - 3D DNR
• Built-in microphone: Yes
• Night mode: DUAL - color or infrared
• Infrared range: up to 30 m
• White light range: up to 20m
• P2P(cloud) support: Yes - a feature that allows remote access without port forwarding and public IP address
• Support in HikConnect/ HiLook App: Yes
• Remote support: iVMS-4200, WEB interface, Application
• Assembly: external or internal
• Power Supply: 12V orPoE
• Protection class: IP67
• Dimensions: Ø 112 mm × 82 mm

Efficient 8-channel IP recorder with PoE power supply allowing you to support cameras with a maximum resolution of 8 megapixels.

• Number of channels: 8 IP channels with PoE power supply
• Resolution supported: up to 8Mpx (4K 3840×2160)
• Decoding: 1-ch@8 MP (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps)
• Motion detection: Yes, supported
• Intelligent image analysis: on 4 channels, human/vehicle traffic filtering (MD2.0)
• Video outputs: 1xHDMI, 1xVGA
• Video compression: H265+,H265,H264+,H.264
• USB connectors: 2x USB 2.0
• Max. number of disks: 1
• Max. Disk capacity: 6TB
• Mobile application: HiLook App
• PoE power budget: < 75W
• Supported protocols: TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™,HTTPS
• Ethernet speed: RJ45 10M/100M
• Power Supply: 48VDC

Includes power supply and mouse.

Discs of this series is a solution dedicated to work 24/7 in CCTV systems and streaming systems. They are characterized by higher service life and resistance to high operating temperature.

Parameters:

• Format: 3.5"
• Interface: SATA III (6 Gbps)
• Cache: 64 MB
• Capacity: 1TB
• Configuration: automatic

*(or equivalent Skyhawk/ WD Purple/ Toshiba S300 - subject to availability)

UTP cable included is a high-quality category 5E twisted pair computer cable, with four pairs of asymmetrically twisted conductors

The set includes a set of necessary accessories, allowing you to install, power, and connect the system:

• 1x wired mouse
• 1x UTP cable for DVR
• 1x 48V power supply for DVR
• 12x RJ45 plug
• A set of instruction manual

The offered set guarantees trouble-free and smooth operation ensuring full safety of the monitored object or terrain. The HiLook brand systems are solutions valued all over the world, with excellent technical parameters and the best value for money.
