Trumpai apie prekę
Prekė: Vaizdo registratorius sunkvežimiams BLACKVUE DR770X BOX TRUCK. Kategorija: Vaizdo registratoriai.
- Gamintojas: Blackvue
- Modelis: DR770X Box Truck
BLACKVUE
made in korea
BlackVue recorders are reliable, easy to use and offer access to data transmission. They provide crystal clear Full HD images recorded both while driving and standing still. They will never miss what is happening around the vehicle. They do not require complicated operation, and their small size and ergonomic shape do not limit the driver's field of vision. Additionally, free BlackVue applications allow you to connect to recorders using mobile devices (Android, iOS). BlackVue Viewer application is available for Windows and MacOS operating systems, providing many additional functions allowing for accurate analysis of the recording and reading of driving parameters.
KONEKTOR is an authorized reseller of BlackVue products in Poland.
Why is it worth buying a driving recorder?
Car cameras can prove to be invaluable evidence in the event of an unpleasant situation on the road, e.g.:
- priority enforcement,
- passing on a yellow light,
- driving up the road
- intentionally causing a collision
- and many other.
The purchase of a car camera can be a kind of policy and evidence in the case.

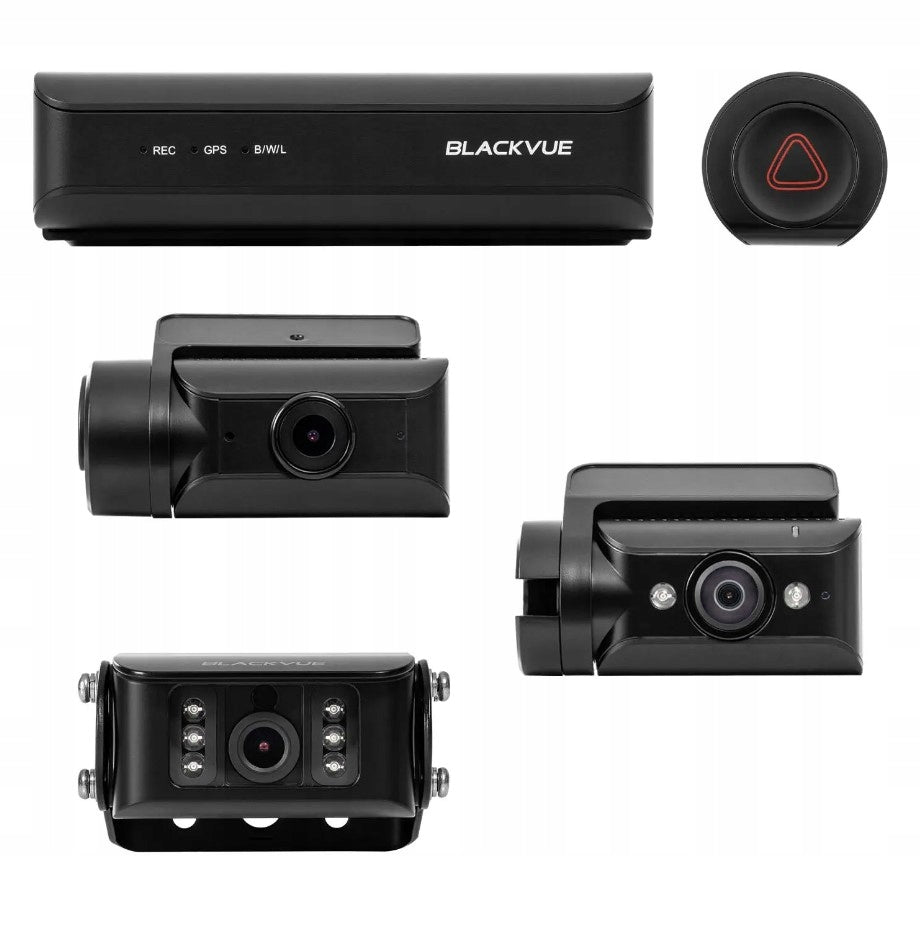

BlackVue DR770X Box Truck provides protection for the front , interior and rear of your vehicle with a waterproof exterior rearview camera.
Videos related to BlackVue DR770X-Box Truck:
https://shop. blackvue . com/product/dr770x-box-truck/
The DR770X BOX TRUCK is ideal for video protection of large trucks. The waterproof (IP69K) rear infrared camera connects to the Box recording unit via a 15-meter video cable. This allows you to monitor not only the road behind, but also loading and unloading operations.
The ultra-wide-angle camera installed inside the vehicle is equipped with infrared LEDs that capture a clear image of the cabin.
It is possible to connect an optional communication module so that the car camera is always connected to the cloud.
With a metal waterproof housing, the DR770X Box Truck rear camera is resistant to most weather conditions. The degree of protection against moisture (IP69K) means that the camera is resistant to high temperature and high pressure. It is intended for installation in the back of trucks or other heavy vehicles. It is recommended to mount it on a flat surface using the screws provided. The brightness sensor detects the ambient brightness and automatically activates six LEDs to help identify vehicles and objects in the dark.
A high-quality 15-meter waterproof coaxial cable connects the front and rear cameras.
The cable design and connectors used ensure a tight and waterproof connection.
Its length makes it ideal for trucks and trailers.
External GPS (included): Provides speed and location data. This allows you to track your vehicle in real time via the BlackVue Cloud and display its location on a map while playing back in the BlackVue app or browser.
Wi-Fi: Connect to your BlackVue using your smartphone or tablet to quickly transfer files. Wi-Fi also allows your BlackVue to connect to BlackVue Cloud using a mobile Wi-Fi hotspot (router).
Network (4G) LTE: Connect the optional LTE connectivity module to the USB port for the best cloud experience.
Please note that the SIM card is not included in the set.
infrared mera monitors the interior of the vehicle. The infrared LEDs turn on automatically depending on the ambient light.
The cameras cope perfectly even in difficult lighting conditions, providing great images.
With an ultra-wide viewing angle of 180 degrees, the camera can capture both the driver's and passenger's side windows in most vehicles simultaneously.
By using the BlackVue app or browser, you can take even more advantage of its powerful capabilities.
Built-in speaker: the dash cam informs you when it is turned on, turned off or when errors are detected.
Sensor: placed in the front camera, detects impacts and starts recording events. Activates parking mode (parking mode kit or battery required) when the vehicle has been parked for more than 5 minutes.
Automatically tags video files. While riding, the built-in G-sensor detects impacts and sudden changes in speed. Once parked, BlackVue also detects movements around vehicles (in motion and impact detection mode).
The SOS button should be installed in an easily accessible place.
Hold the button to pair it with the Box (first time use only).
Press the button to start manual event recording.
Easily change BlackVue configuration settings and view videos on your mobile phone or computer.
With the app, you'll connect to BlackVue to access your files and check the live view in real time, making it easy to set up your dash cam.
Using the SD card viewer, connect your dash cam's microSD card to your computer to view and backup footage in bulk, as well as export clips, delete audio, etc.
Blackvue Cloud allows you to manage car cameras connected to the cloud from any web browser. Official website blackvuecloud.com.
Connect to your BlackVue anytime, from anywhere in the world with BlackVue Cloud.
Receive notifications on your phone whenever the camera detects an impact with a parked vehicle.
What's more, let BlackVue stream critical footage - like a burglary or hit-and-run - in real time to the cloud with its live event streaming feature.
Play and download your dash cam or cloud videos from anywhere, and back up your important videos to the free cloud.
Enjoy two-way voice communication with your driver via the app via the integrated BlackVue speaker and microphone.
Event file overwrite protection: car cameras record in a loop, overwriting older files when memory is full. BlackVue can prevent event files (triggered manually or by impacts) from being overwritten. Up to fifty-one (51) files (17 minutes front/back/interior) can be protected this way. You can allow new event files to overwrite previous event files, thereby retaining the last fifty-one files.
Adaptive file management without formatting - This BlackVue developed file system improves recording stability and requires microSD card formatting less frequently.
SD Card Failure Notification - BlackVue will immediately detect a microSD card failure and alert you with a "Check SD Card" voice prompt.

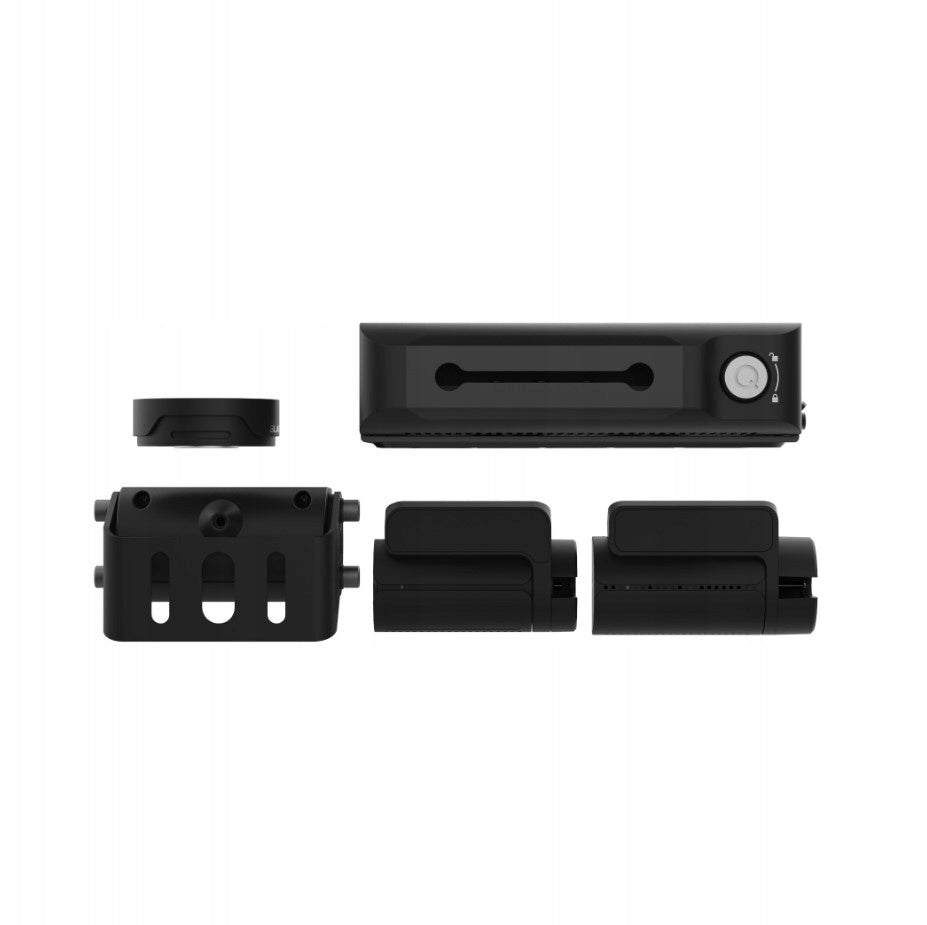

The DR770X housing has been designed from the ground up to prevent tampering.
Main unit: cover with lock and key to prevent access to the microSD card and cable connectors.
Camera covers feature a hexagonal screw to prevent cables from disconnecting and lock the camera angle in the mount.

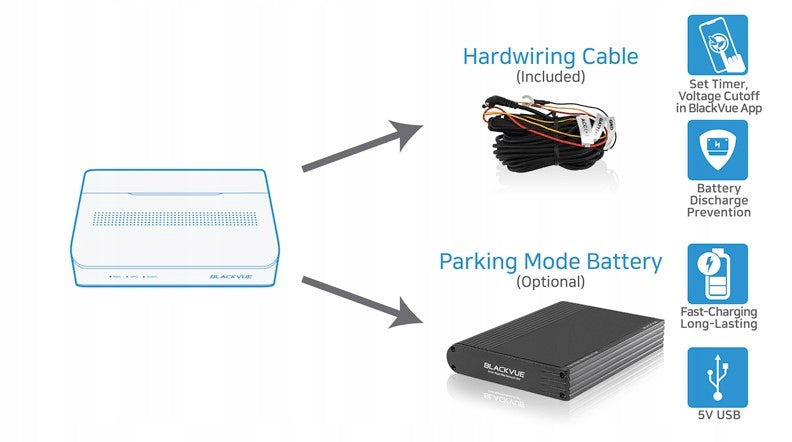

The DR770X Box series can be permanently connected to the vehicle's fuse box, without the need for optional accessories. The dash cam will automatically switch to parking mode when the vehicle ignition is turned off. Voltage cut-off and timer can be set in the BlackVue app.
The DR770X Box Series is also compatible with all BlackVue Parking Mode kits and batteries.
Specification:
number of channels: 3CH
most important features: Full HD + Full HD + Full HD (front + rear + interior), cloud, Wi-Fi, triple Sony sensors, external GPS and LTE module
dimensions: main unit: length 130.0mm / width 101.0mm / height 33.0mm / weight 209g
front: length 62.5mm x width 34.3mm x height 34.0mm / weight 43g
rear: length 70.4mm x width 56.6mm x height 36.1mm / weight 157g
internal: length 63.5mm x width 32.0mm x height 32.0mm / weight 34g
wireless button: length 45.2mm x width 42.0mm x height 14.5mm / weight 23g
rear camera connection: Coaxial cable
supported memory: microSD card up to 256 GB
Recording modes: normal recording, event recording (when impact is detected in normal and parking mode), manual recording and parking recording (when motion is detected) When using other methods, G-sensor will activate parking mode.
parking mode: YES (with 3-wire cable - included)
voice notifications about events in parking mode: YES
image sensors: front: Sony STARVIS™ CMOS sensor (approx. 2.1 million pixels)
rear: Sony STARVIS™ CMOS sensor (approx. 2.1 million pixels)
interior: Sony STARVIS™ CMOS sensor (approx. 2.1 million pixels)
viewing angle: front: diagonal 139°, horizontal 116°, vertical 61°
rear: diagonal 116°, horizontal 97°, vertical 51°
interior: diagonal 180°, horizontal 150°, vertical 93°
resolution and frame rate:
video codec: H.264 (AVC)
baud rate: front/rear/interior
highest (extreme): 16 + 10 + 10 Mbps
highest: 12 + 10 + 10 Mbps
high 10 + 8 + 8 Mbps
Normal: 8 + 6 + 6 Mbps
formatting: YES (adaptive)
event file overwrite protection: YES
SD card failure warning: YES
scheduled restart: YES
video file type: MP4
Wi-Fi: built-in (802.11 bgn)
Cloud compatible: YES
GPS: external (dual band: GPS, GLONASS)
microphone: built-in
speaker: built-in
impact sensor: 3-axis acceleration sensor
LED indicators: main unit: recording LED, GPS LED, BT/Wi-Fi/LTE LED
front: front and rear safety LED
rear: none
internal: front and rear safety LED
EB-1: run/low battery voltage LED
Rear camera IR illumination: rear: 940 nm (6 infrared (IR) LEDs)
interior: 940 nm (2 infrared (IR) LEDs)
button: EB-1 button:
press the button - manual recording.
operating temperature: -20°C – 70°C, cut-off approx. 80 ° C
storage temperature: -20°C – 80°C
power supply: built-in supercapacitor
supply voltage: DC 12V-24V (3-pin DC plug (Ø3.5 x Ø1.1) for wires (black: GND / yellow: B+ / red: ACC)
power consumption: normal mode (GPS on / 3 channels): Avg. 730mA / 12V
Parking mode (GPS off / 3 channels): Avg. 610mA / 12V
* 40 mA current increase when the indoor camera's IR LEDs are on.
* 60mA current increase when truck rear camera IR LEDs are on.
*actual energy consumption may vary depending on usage conditions and environment.
certifications: front (with main unit and EB-1): FCC, IC, CE, UKCA, RCM, Telec, WEEE, RoHS
Back IR: KC, FCC, IC, CE, UKCA, RCM, WEEE, RoHS
software: BlackVue Viewer
*Windows 7 or later, Mac Sierra OS X (10.12) or later
BlackVue Web Viewer
* Chrome 71 or later, Safari 13.0 or later
application: BlackVue application
* Android 8.0 or later, iOS 13.0 or later
other: adaptive Free File Management System format
advanced driver assistance system
LDWS (Lane Departure Warning System)
FVSA (Forward Vehicle Start Alarm)
Bluetooth: built-in (V2.1+EDR/4.2)
LTE: external (optional)
BlackVue DR770X Box Truck Specifications:
The content of the shipment from the Konektor store:
- BlackVue DR770X Box Truck main unit
- front camera
- internal infrared camera
- infrared camera on the back of the truck
- SOS button
- external GPS
- main unit cigarette lighter power cable (3 pcs.) )
- camera connection cable (2 pcs.) )
- main unit power cable (3 pcs.) )
- cable for connecting the rear camera (15 m, waterproof)
- micro SD card
- microSD card reader
- quick start guide
- Velcro strap
- pry tool
- main unit key
- Allen key
- spare adhesive pads for mounting
- screws
- cable clamps (12 pcs. )
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Blackvue |
| Parametry | Model | DR770X Box Truck |
| Parametry | Recording quality | Full HD (1920 x 1080) |
| Parametry | Viewing angle | 139° |
| Parametry | Power supply | car lighter socket |
| Parametry | Ports | memory card reader |
| Parametry | Memory card included | none |
| Parametry | EAN (GTIN) | 8809724495916 |
| Parametry | Manufacturer code | DR770X Box Truck |
| Parametry | Communications | Bluetooth,GPS,Wi-Fi |
| Parametry | Additional features | motion sensor,two cameras,reversing camera |
