Vaizdo registratorius OSRAM ROADsight 3500, 1296p, GPS, HDR, 140°

Trumpai apie prekę

Prekė: Vaizdo registratorius OSRAM ROADsight 3500, 1296p, GPS, HDR, 140°. Kategorija: Vaizdo registratoriai.

• Gamintojas: Osram
• Modelis: ROADsight3500

NAME: OSRAM ROADsight 3500 - 1296p car camera, GPS, HDR, 140°

MANUFACTURER: OSRAM

Product ID: 252263

Product Index: ODC3500

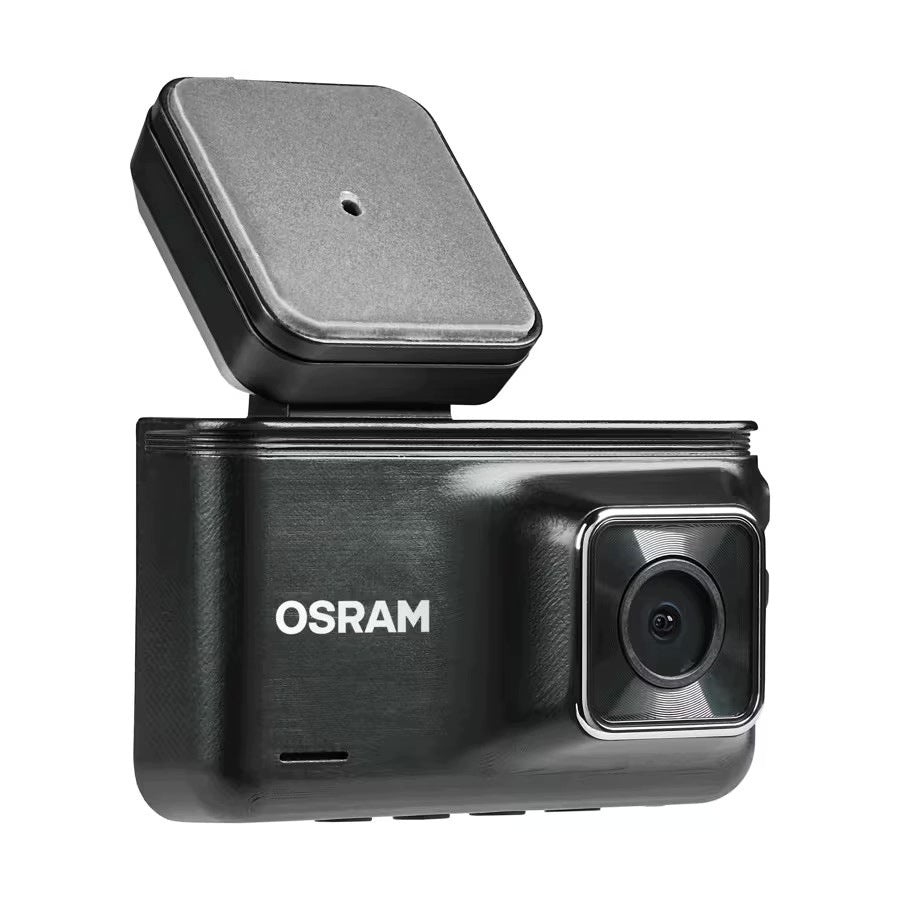

OSRAM ROADsight 3500 – 1296p dash cam with GPS

OSRAM ROADsight 3500 is a front dash cam designed to record the course of the route and events in front of the vehicle. It records images at 1296p at 30 fps. /s, and a wide 140° field of view allows you to cover a large part of the road and its surroundings.

The most important advantages

• 1296p at 30 fps /s – high resolution recording with smooth image recording.
• 140° field of view – a wide area recorded in front of the car.
• GPS – recording position and speed data along with video material.
• HDR – a function supporting the recording of scenes with large differences in brightness.
• G-Sensor – automatic recording protection when an event is detected.

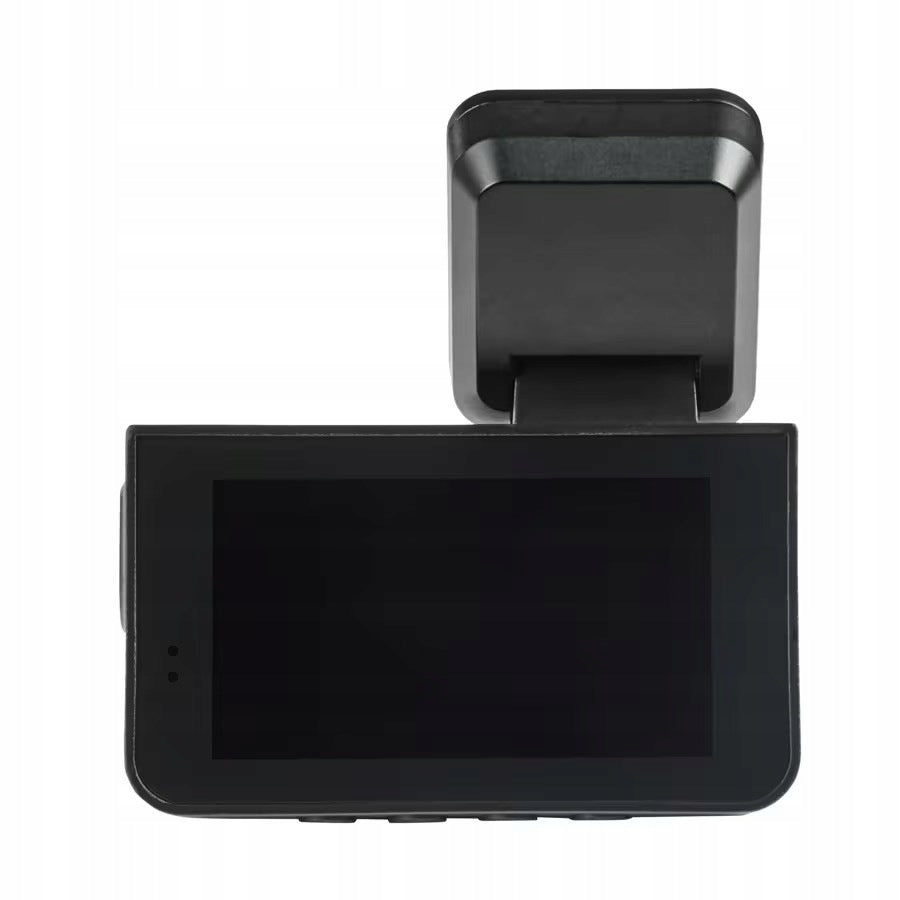

• IPS 3″ screen – convenient preview of recordings and settings without additional device.

How does ROADsight 3500 record?

The camera captures footage from the front of the vehicle at 1296p at 30 fps. /s. The lens covers a 140° field of view, thanks to which the frame houses not only the area directly in front of the car, but also most of its surroundings. HDR helps with scenes where there are both heavily lit and darker parts of the image.

GPS and G-Sensor

Built-in GPS allows you to save data related to the position and speed of the vehicle. The G-Sensor responds to the detected event and protects the corresponding file from standard overwriting as part of loop recording. This is a practical solution when the record is to be used to later recreate the course of a road incident.

Parking and time-lapse mode

ROADsight 3500 supports parking mode and time-lapse function, but for their proper operation the manufacturer requires a separate set OSRAM ROADsight Hard Wire Kit 3500 OHWK3500, which is not included in the standard camera set. The current OSRAM documentation states that in parking mode, the recording can be started automatically when an event is detected and last up to 30 seconds.

12/24 V power supply and installation

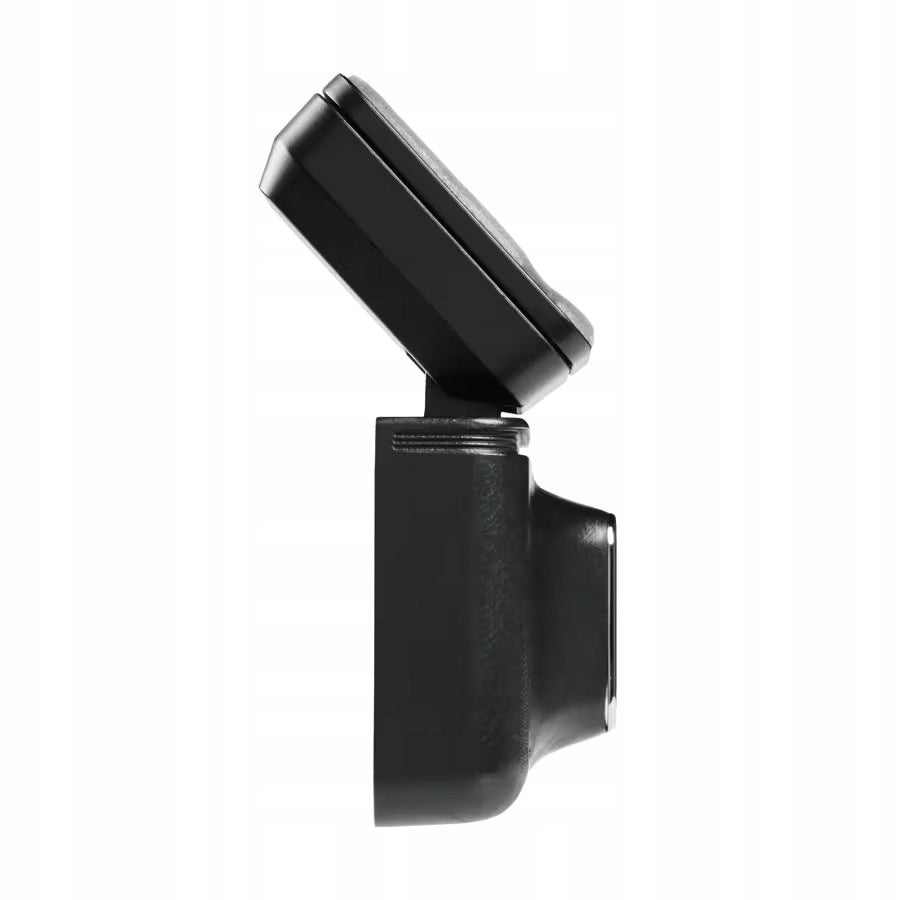

The camera is designed for vehicles with a 12/24 V installation and uses a USB-C connector. The glass mount is made in the form of a holder with a 3M self-adhesive element. When choosing the place of installation, keep an appropriate field of view of the driver and guide the cable so that it does not interfere with the operation of the vehicle.

Memory card

The device works with microSD cards up to 128 GB. The manufacturer recommends a C10 class card and formatting it before using it. The memory card is not part of the standard set.

Technical data Parameter Brand value OSRAM Model ROADsight 3500 MPN ODC3500 EAN 4052899633841 Camera type Front Resolution 1296p Number of frames 30 fps. /s Field of view 140° Screen 3″ IPS GPS Yes HDR Yes G-Sensor Yes Loop recording Yes Parking mode Yes, requires OHWK3500 Time-lapse Yes, requires OHWK3500 Max. microSD capacity 128 GB USB-C connector Vehicle installation 12/24 V Device dimensions 96 × 40 × 89 mm (H) × W. × L. ) 3M Adhesive fitting Manufacturer's Warranty 2 years Set Contents

• 1 camera OSRAM ROADsight 3500,
• USB power cable,
• auxiliary tool for guiding and dismantling the cable,
• 3M self-adhesive mount.

The Hard Wire Kit OHWK3500 and microSD card are not part of the standard kit.

Use and privacy

The use of a dash cam may be subject to data protection, image and recording regulations. The rules may vary from country to country, so please check your current requirements before using the device or publishing the material. The camera should be mounted so as not to limit the driver’s field of vision.

Frequently Asked Questions

Does parking mode work without an additional set?

No. The manufacturer requires the OSRAM ROADsight Hard Wire Kit 3500 OHWK3500.

Does the camera work in a 24 V vehicle?

Yes. The manufacturer declares compatibility with 12/24 V vehicle installations.

Is the memory card included?

No. A suitable C10 class microSD card with a capacity of up to 128 GB should be used.

Does ROADsight 3500 have a rear camera?

No. The ROADsight 3500 is a front camera.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Osram
Parametry	Model	ROADsight3500
Parametry	Recording quality	HD (1280 x 720)
Parametry	Power supply	USB
Parametry	Screen diagonal	3"
Parametry	Communications	GPS
Parametry	Memory card included	none
Parametry	EAN (GTIN)	4052899633841
Parametry	Manufacturer code	ODC3500
Parametry	Product weight with unit packaging	0.308 kg
Parametry	Batteries included	no
Parametry	Additional features	shock sensor,display
