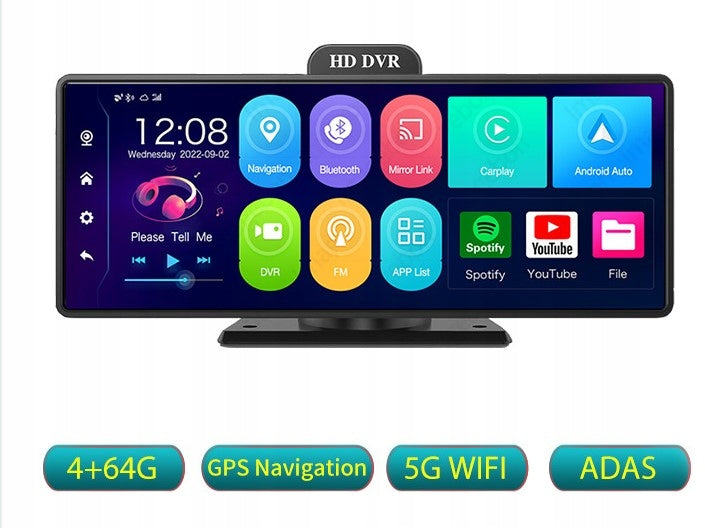

Vaizdo registratorius Android navigacija kamera monitorius 2025

Trumpai apie prekę

Prekė: Vaizdo registratorius Android navigacija kamera monitorius 2025. Kategorija: Vaizdo registratoriai.

• Gamintojas: no brand
• Modelis: Kamera Monitor

DVR, Rear-view mirror (camera cable 6m or 10m (surcharge),video recorder, reverse camera, touch screen 10,26 inch,parking lot monitoring mode, sound recording, 3-axis overload sensor - G-Sensor,parking mode, loop recording, built-in microphone and speaker,TF/SD memory card reader 128GB max., mini USB connector,excellent night vision, , view angle of the front camera 160° (1080P) and rear camera 140° (1080P) WDR,and also, Android 10.0 , 4GB RAM and 64GB ROM, ADAS,Bluetooth, wirelessly connect to Android Auto and Car Play.

• 10,26 inch touch screen
• Unisoc 8581A octa-core processor
• RAM: 4GB
• ROM User Memory: 64 GB
• Supported MicroSD cards: 32GB to 128GB
• Android 10.0 (Poland version of the system)
• User manual in Polish,
• Bluetooth 5.1 BLE (double-sided communication)
• FM Transmitter
• Sony IMX323 image sensor in front camera
• Image sensor and Sony IMX323 in rear camera
• Front camera perception angle 160° F/1.8
• Rear camera perception angle 140° F/1.8
• No internal battery - power directly from the fuse box via the parking power supply - Android system is running at all times and the camera is available WHEN reversing ALWAYS and IMMEDIATELY
• Remote monitoring
• 4G LTE Internet
• GPS positioning and navigation
• 5G WiFi Wireless Communication
• Collision detection and recording by G-Sensor
• Automatic reversing camera
• Automatic start-up and shut-down of the device and recording

• Automatic start/stop recording - The recorder starts automatically and starts recording when the car ignition is turned on and automatically turns off when the ignition is turned off (with a delay of several seconds). The recorder is permanently connected in the fuse box through two power lines, where one provides 12V permanently before and the other is switched on with a ignition
• In park monitoring mode, the device starts recording when any movement in the field of view of the cameras is detected, and then the recording system secures the recording in memory automatically when shock or impact is detected by the shock sensor (G-sensor).
• In driving mode, the G-Sensor is activated in the event of a collision or sudden manoeuvre. The device records the material recorded during the accident and secures it for later use. 3-axis overload sensor (accelerometer) detects sudden overloads (sharp braking, collision, sudden steering) which initiates recording to a deletion-protected catalog protecting against automatic overwriting. All dangerous situations will be recorded automatically and will remain available for inspection as evidence if necessary, without the need for any interference from you.
• Recording in a loop replaces old recordings with new ones when the memory is full, only previously secured recordings by the system are not overwritten.
• Automatically change the presentation of the image from the reverse camera when the parking manoeuvre begins. The display shows the appropriately enlarged lower part of the rearview camera frame along with auxiliary lines to help determine the safe space for manoeuvre.

  The function requires connecting an additional camera activation cable to the reversing light.

• Wi-Fi (802.11 a/b/g/n). Easily connect to your smartphone via Wi-Fi in a dedicated app by scanning the code from your device screen. Fast file transfer or direct image reading from cameras in real time by streaming video data over a wireless local area network. The GSM 4G modem allows you to access the video stream from both cameras from anywhere at any time.
• Hot spot on board. Just turn on the built-in "Wi-Fi Hotspot" function to enjoy your own wireless network with Internet access via 4G SIM card.
• Direct power ensures no delays in using all functions of the device. Turning off the ignition activates the sleep mode of the system in which Android is in hibernation and the device draws only trace amounts of energy from the battery without causing it to discharge. Unlocking the ignition causes the image from the rear camera to immediately appear on the screen, and turning on the reverse gear activates additional auxiliary lines immediately
• Awakening can also be activated remotely, via the Internet, using the CarKeeper application and observe what is happening around the car in real time on your smartphone.
• Automatic wake-up, without screen activation, also occurs automatically when you see movement in the field of view of the cameras and the G-sensor noticing the shock informing about the violation of your property triggers the recording. The recording of the event is automatically saved and secured on the SD card and in the CarKeeper application.

• WDR Night Mode (Wide Dynamic Range). This function works in car cameras by using appropriate algorithms to analyze image exposure and dynamically changing the values of underexposed and overexposed pixels of monitored scenes in order to show underexposed elements in the image. Thanks to this, we have the ability to accurately record the scene despite high contrast. Thanks to the wide lens and WDR technology, the device performs well even in difficult lighting conditions. The extended dynamic range of the image allows for a clear and detailed image, thanks to the skilful leveling of both too bright and darkened fragments of the recording. Thanks to the WDR function, it is possible to maintain the readability of the entire observed scene.
• Parking mode. Remote monitoring of the car environment through the Car Keeper application. Automatic ambient monitoring involves activating the device by moving in the field of view of the cameras and securing the recording in memory automatically when shock or impact is detected. Parking mode is an extremely useful feature, thanks to which you will get proof in case of damage to your vehicle during your absence. You don’t have to be in the car to have a video recorder to protect your vehicle. This feature is ideal for crowded parking lots under your home or shopping mall. Watch the car’s camera image on your smartphone. Monitor and record the surroundings of the car while standing in the parking lot, you will always find the culprit of damage caused in your absence. The recorded image of the perpetrator - a thief or vandal, is legal proof in the light of Polish regulations. Parking mode requires constant power supply.
• GPS antenna. Determining the current position of the vehicle in the Car Keeper app. Control the route and current position of your car. Tracking the position and playback of the route on the map thanks to the GPS transmitter (GPS / Beidou / GLONASS three mode) and a dedicated application. Each recording secured by the device has a built-in GPS position and time marker. The Car Keeper app displays secured recordings along with a map showing the vehicle’s position and exact coordinates.
• GPS navigation. It has built-in IGO PAL navigation, which leads reliably to the destination. Built-in speed limit signaling for most main roads. It also allows you to install your own database of speed control points locations. If necessary, Google Play and irreplaceable Android applications are available, such as Google Play. Google Maps.
• Wireless support for Android Auto and Car Play. For Android Auto, it requires a smartphone with an adnroid of 11 or higher, for Car Play, IOS 10 and above.

Specification:

• Instructions, menus, in Polish
• Screen Size: Touch, MIPI 10.26 inch
• Camera resolution: front 1080P F/1.8, rear 1080P F/1.8, 6M
• Unisoc 8581A processor,octa-core, 4*Cortex-A55@1.6GHz and 4*Cortex-A55@1.2GHz
• RAM: 4GB, ROM: 64GB eMMC
• GPU: PowerVR GE8322@550MHz
• External memory: max 128GB SD card
• Internet: 4G, WiFi
• Operating system: Android 10.0 (Poland version)
• Video Recording Format: TS
• Static Image Recording Format: JPEG
• Camera Viewing Angle: Front 160°, Rear 140°
• Assistance: CarKeeper

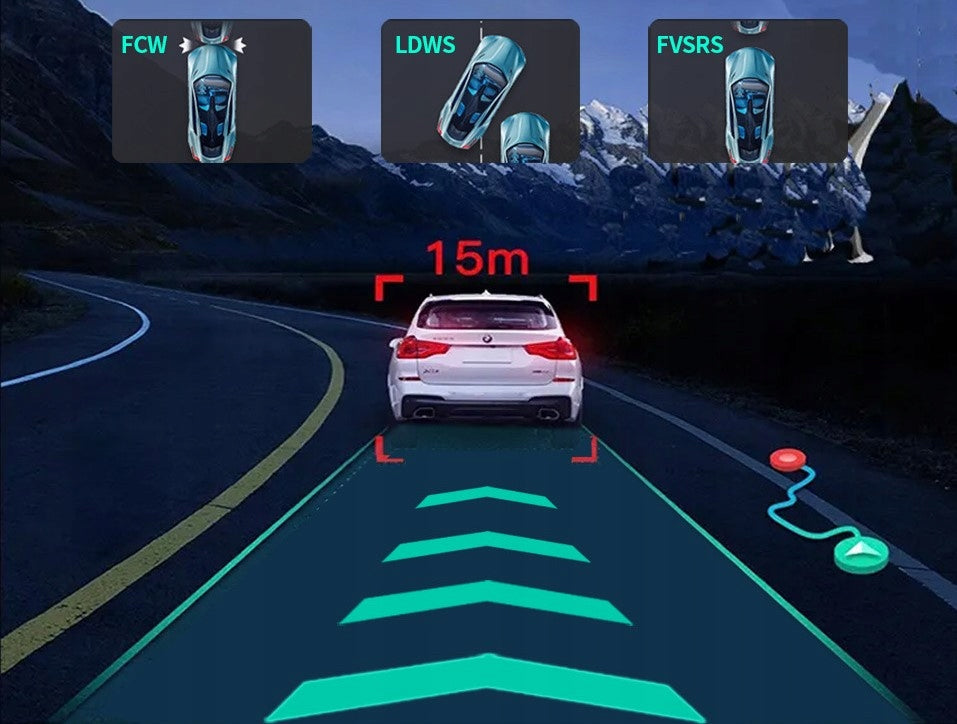

• ADAS: LDWS / FCWS / FVMA
• GPS transmitter: GPS / Beidou / GLONASS three mode
• GPS Navigation: IGO
• Wi-Fi: 802.11 a/b/g/n
• Bluetooth: 4.4 BLE (low energy),
• Handsfree: Hands Free
• Sending music and sounds via Bluetooth
• Speaker and Microphone: Built-in
• FM Transmitter: YES
• Number of Video Channels: 2
• Battery: -

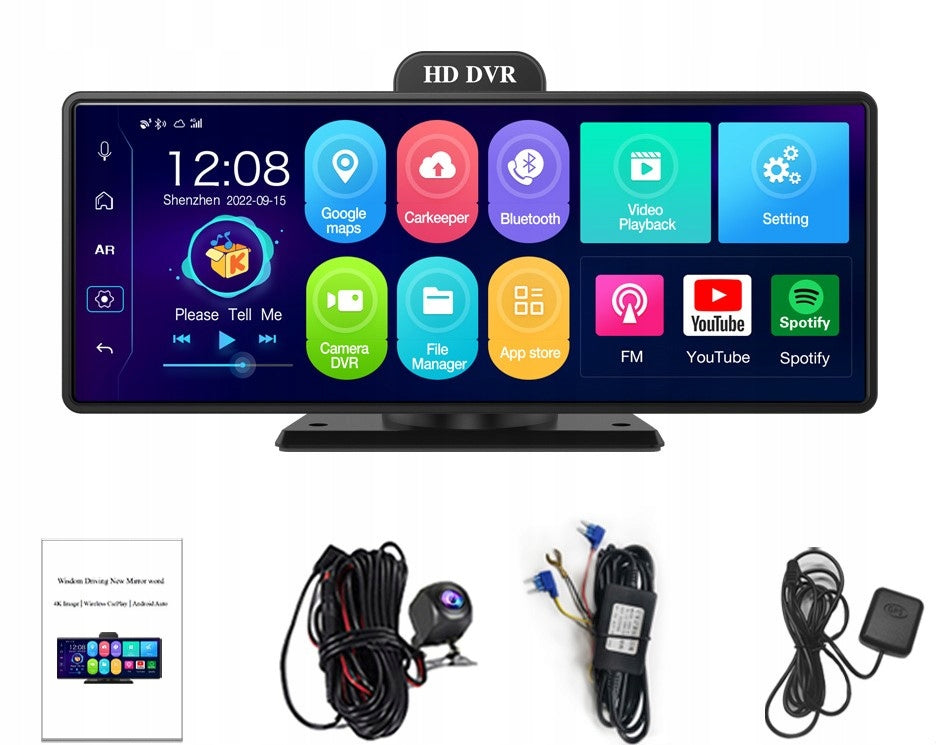

The set includes:

1. Car video recorder HE503

2. Fastening stand

3. Instruction manual in language.

4. Reverse camera

5. Direct power supply type Buck Line (wire ~ 4,5m)

6. GPS antenna with cable ~ 0.3,5m
