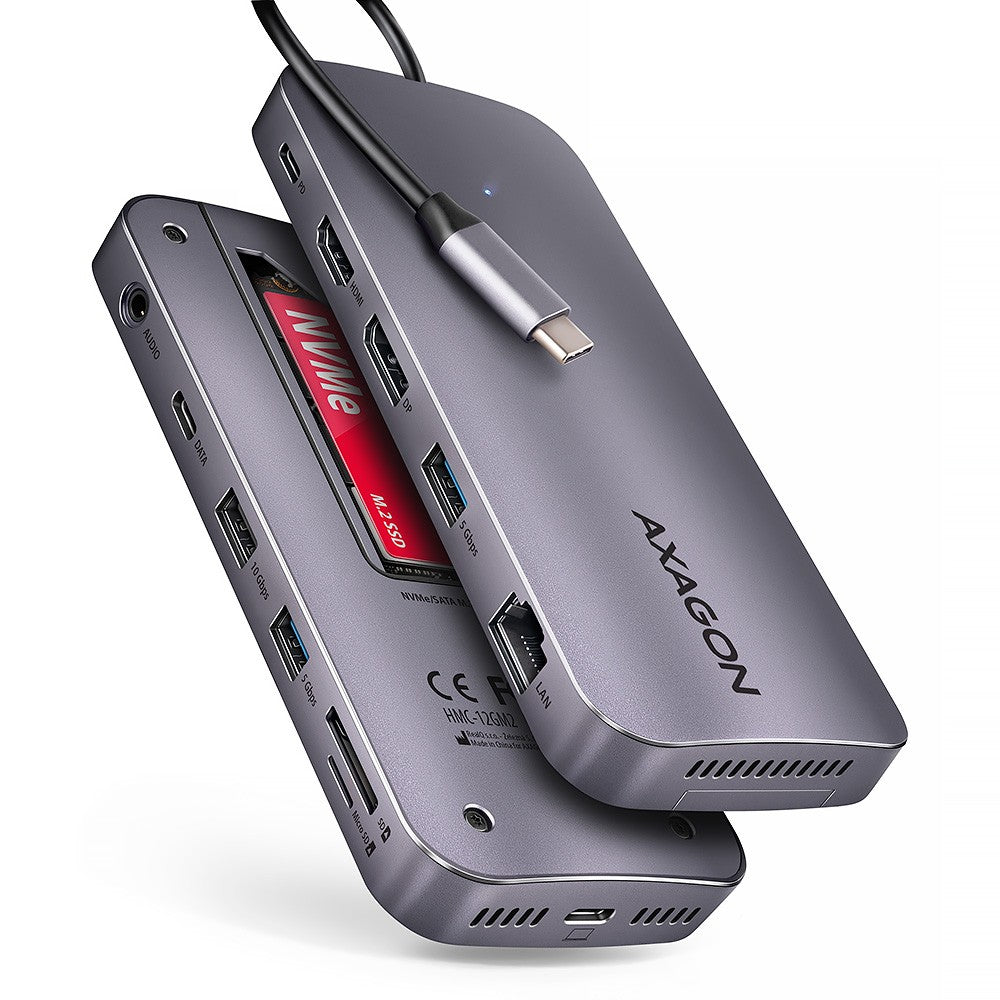

USB šakotuvas Axagon HMC-12GM2, kelių jungčių

Trumpai apie prekę

Prekė: USB šakotuvas Axagon HMC-12GM2, kelių jungčių. Kategorija: USB šakotuvai.

• Gamintojas: Axagon
• Modelis: HMC-12GM2

You can easily and quickly connect up to two monitors, four USB devices, Gigabit Ethernet network, headphones and SD card reader and NVMe or SATA M.2 SSD simultaneously using a double-sided USB-C connector. You can also power your laptop with Power Delivery technology. The USB-C hub will provide a simple and compact 12-in-1 docking station for notebooks such as Apple MacBook Air or Pro .

The USB hub offers three USB ports with standard USB-A connectors. Two at 5 Gbps and a third at 10 Gbps for more demanding devices. It also offers a 10Gb/s USB-C data connector. The hub can also support the permanent connection of two external drives at the same time. With its high-speed USB 3.2 Gen 2 interface, transfer is supported at speeds up to 10Gb/s.

The second USB-C connector is reserved exclusively for powering and simultaneously charging laptops using Power Delivery 3.0 technology with power up to 100W. Connect the appropriate USB-C Power Delivery charger to the hub and connect the hub to a laptop that supports Power Delivery. You save one USB-C port.

HDMI and DisplayPort outputs provide high-quality images. Whether used individually or simultaneously, the ports offer resolutions up to 4K/60Hz Ultra HD and support multi-channel audio transmission. Supports high frequencies at popular resolutions for 2K/144Hz or FullHD/240Hz gaming. With HDR (high dynamic range) support, you can enjoy a significantly expanded range of colors and contrasts without restrictions. For video outputs to work properly, the laptop must be equipped with a USB-C port with DisplayPort (DP Alt Mode) or Thunderbolt 3 or later support.

You can connect an NVMe or SATA M.2 SSD using the built-in slot of the drive on the back. The multiport hub thus becomes an external drive. M.2 cards can be single-sided or double-sided with dimensions 22x42 mm and 22x80 mm. The external M.2 enclosure has no capacity limitations for SSDs and supports modern features such as TRIM, UASP and allows you to read S.M.A.R.T. information monitoring the state of the drive.

The Gigabit network card extends the computer with a fast and stable network connection, adds a missing RJ-45 network connector, or other network card.

Card reader supports all current versions of SD and microSD cards, including SDXC and microSDXC, with capacities up to 2TB. With its high-speed USB interface, you can get the most out of your modern memory cards. The card reader allows simultaneous card handling in both slots and direct copying between them.

Elegant aluminium housing provides mechanical resistance and passive cooling. Active cooling provided by the silent integrated valver, which cools both the M.2 drive and the Port Replicator itself, is the perfect accessory for laptops that lack USB connectors, memory or video outputs. The port replicator is an ideal accessory for laptops that lack USB connectors, memory or video outputs. The 50 cm USB-C cable is detachable and can be replaced with a longer cable if needed.

You can use USB peripherals that you already own instead of buying new ones. Thanks to the Plug And Play and Hot Plug functions, connecting devices to the hub is very simple, without complicated installation and you can also connect and disconnect peripherals while the computer is running.

Input:

USB 10Gbps (USB 3.2 Gen2).

Compatible with Thunderbolt 3/4.

Connection via reversible female USB Type-C connector.

USB Output:

1x USB 10Gbps port, USB-A female connector.

2x USB 5Gbps port, USB-A female connector.

1x USB 10Gbps port, USB-C female connector.

1x Power Delivery port (power only), USB-C female connector.

The USB-C hub allows you to connect two external drives at the same time.

HDMI output:

1x HDMI port, HDMI A female connector.

1x DP port, DisplayPort female connector.

Video resolution and propertyi:

The maximum supported resolution when each port is connected individually is 4K/4096 x 2160 at 60 Hz.

2 simultaneously connected monitors up to 4K/60Hz on both monitors.

To ensure proper operation of the video output, the hub must be connected to a USB-C port with DisplayPort alternative mode (DP Alt mode) version 1.4 or later or to a USB-C port with Thunderbolt 3/4 support.

We also require a suitable operating system. The video output function will not be available when these requirements are not met.

HDR (High Dynamic Range, 10 bit support) support realistic reproduction of bright and dark details.

Hot Plug (Hot-Plug-Detect) support.

TMDS (Transition Minimized Differential Signalling) support.

Full support for HDCP 1.4 and 2.3 (High-bandwidth Digital Content Protection).

It supports up to 8-channel LPCM, compressed audio (AC-3, DTS) and HBR audio formats.

Supports sampling rates up to 192 kHz and audio up to 24-bit depending on source and target device, i.e.

Power Delivery:

Support Power Delivery 3.0 - continuous power supply of the device from the network adapter via USB-C hub.

Maximum power supply via PD output USB-C 100W - 20V/5A.

Card reader - two slots:

Micro SD slot: microSD / microSDHC / microSDXC / TransFlash.

SD slot: SecureDigital / SDHC / SDXC, MultiMedia Card, MMC 4.0, MMC Dual Voltage, MMC mobile, RS-MMC, with adapter - miniSD, microSD / microSDHC / microSDXC, MMC Micro.

The reader supports the following flash card specifications:

SD 1.0/1.1 (SD - Secure Digital, up to 2GB).

SD 2.0 (SDHC - Secure Digital High Capacity, up to 32GB).

SD 3.0 (SDXC - Secure Digital eXtended Capacity, up to 2TB).

MMC and eMMC 3.x /4.0 / 4.1 / 4.2 / 4.3 / 4.4 / 4.5 / 5.0 (8-bit).

SD 3.01 and SD Jukebox app support (CPRM function).

Support Ultra High Speed bus UHS-I (SDR12/SDR25/SDR50/DDR50/SDR104) speed up to 104 MB/s.

It supports ECC (Error Correction Code) and CRC (Cyclic Redundancy Check).

2 LUN - in file managers, the reader is indicated as two drives.

Copying from card to card.

M.2 SSD slot:

NVMe and SATA M.2 SSDs

Designed for M-key or B+M-key cards.

NGFF 75-pin M-key slot for M.2 drives.

Support for M.2 drives with dimensions - 2242, 2280 mm.

Support M.2 single-sided and double-sided SSDs.

Compliant with PCI Express Base Specification Revision 3.1a.

Compliant with NVM Express 1.3 specification.

Compliant with Serial ATA 3.2 specification (SATA/600), transmission rates up to 6 Gbps (600 MB/s).

Compliant with USB Mass Storage Class specification.

UASP (USB Attached SCSI) support for faster data transmission in Windows 8 and later.

Support TRIM to reduce slow SSD performance degradation over time.

Support boot from SSD in M.2 hub slot.

RJ-45 Output:

GigabitEthernet interface with RJ-45 connector for UTP or STP cable connection.

Support 10/100/1000 Mbps Ethernet bandwidth.

Support IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T specification.

10/100/1000 Mbit/s auto-discovery.

Support IPv4/IPv6 packet Checksum Offload Engine (COE) to reduce CPU load total IPv4 IP/TCP/UDP/ICMP/IGMP & IPv6 TCP/UDP/ICMPv6 control and checksum generation.

Support TCP Large Send Offload V1 and V2.

IEEE 802.1P Layer 2 priority encoding & decoding support.

Support IEEE 802.1Q VLAN tagging.

IEEE 802.3az EEE (Energy Efficient Ethernet) support – reduce power consumption at rest.

Support Jumbo frame.

It supports full duplex transmission with IEEE 802.3x flow control and half duplex transmission with reverse flow control.

Auto MDI/MDIX support - crossover detection and autocorrection eliminates the need for crossover cables.

Hardware support for Cyclic Redundancy Check (CRC) to discover transmission errors.

Support Pair Swap/Polarity/Skew Correction.

FWake-on-LAN function in different modes: Support sleep and remote excitation modes with Magic paket, Microsoft Wakeup Frame, Microsoft Wake Packet Detection, ECMA-393 proxZzzy for sleeping hosts, RealWoW! Link Change Wake-up.

Advanced Power Management Features: Adapter supports advanced management and advanced power saving when disconnected from Ethernet cable. Supported energy management technologies include e.g. Support Advanced Configuration Power Management Interface (ACPI) Link Power Management (LPM) or IEEE 802.3az EEE (Energy Efficient Ethernet) and others.

Audio Output/Input:

1x 3.5 mm jack for headset, headphones or active speakers,

2-channel analog stereo output 48 kHz @ 16 bits for playback,

1-channel analog mono microphone input 48 kHz @ 16 bits for recording.

Further properties:

Compatible with USB 10Gbps (USB 3.2 Gen 2).

Backwards compatible with USB 5Gbps (USB 3.2 Gen 1 / USB 3.0).

Support 10.000/5.000 Mbit/s transmission rate.

Possibility to connect the device behind the run thanks to Hot Plug support.

Total Plug and Play support.

Support for standby mode.

Power supply via bus- USB bus power or from PD charger.

The durable aluminum housing is designed to better cool the hub. Higher surface temperature is not a problem the heat generated by the hub is better dissipated and transmitted to the environment.

The LED signals the data transfer from the M.2 drive.

Quality shielded cable guarantees high communication speed and minimal unwanted interference.

Length of USB cable 50 cm.

Supported operating systems:

Windows 10/11 and later, macOS, Linux, Chrome OS and Android.

Compatibility depends on the operating system and device manufacturer support.

Graphics card drivers can also affect the proper functioning of the product. We recommend that you download the latest version of the drivers.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer	Axagon
Parametry	Product weight with unit packaging	0.342 kg
Parametry	EAN (GTIN)	8595247907783
Parametry	Manufacturer code	HMC-12GM2
Parametry	Number of ports	10
Parametry	Number of LAN (RJ-45) ports	1
Parametry	Certificates of conformity	CE
