Prekė: USB kamera Innomaker U20CAM-1080P, 1080p, plačiakampė, 30 kadrų/sek.. Kategorija: Internetinės kameros.
- Gamintojas: INNOCN
- Modelis: U20CAM-1080P
Applications and Practical Use of Camera
The Innomaker U20CAM-1080P camera module is widely used in solutions requiring machine vision, automatic inspection and embedded vision. It is an excellent choice for projects based on Raspberry Pi, Jetson Nano or other industrial single-board computers. Thanks to its design, it works great in quality control systems of production lines, barcode and RFID scanning, as well as in robot navigation.
- Supports integration with platforms such as Raspberry Pi 3B+/4/5 and Jetson Nano/TX2.
- It enables applications in automatic inspection, for example for detecting defects on printed circuit boards.
- It is used to build machine vision systems, including object dimensioning devices.
- Ideal for embedded vision, supporting artificial intelligence systems and robot navigation.
- The operating temperature from 0°C to 60°C confirms its usefulness in industrial conditions.
Technical Specification and Parameters of the Device
The U20CAM-1080P offers Full HD (1920x1080p) imaging at 30 frames per second. It uses the UVC (USB Video Class) standard, which means that it does not require the installation of dedicated drivers. The device is powered directly from the USB (5V) port and supports hot-plug connection.
- Delivers 1920x1080p images with 30 FPS fluidity.
- It supports two video stream formats: YUY2 and MJPEG, which allows for flexible adjustment to the needs of the application.

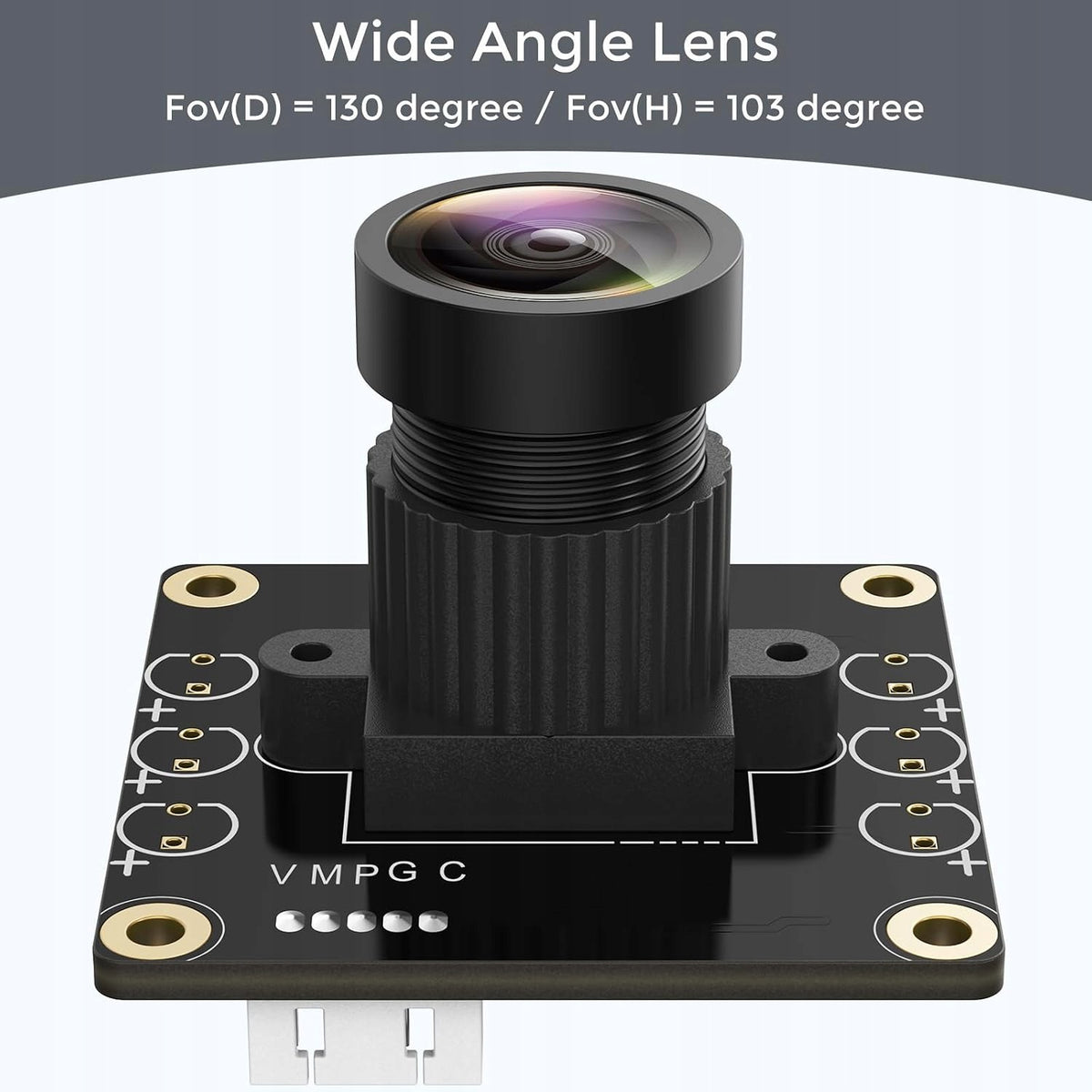

- The integrated lens has a wide field of view: 130° diagonally and 103° horizontally.
- It has an industrial lens thread M12, allowing it to be replaced.
- Focus type is set to constant focus.
- It uses a sensor type CMOS.
- Connectivity is realized via the USB 2.0 High-Speed interface.
- Compatibility includes operating systems: Windows, Linux (V4L2), Android and Mac OS.
Compact design and easy integration

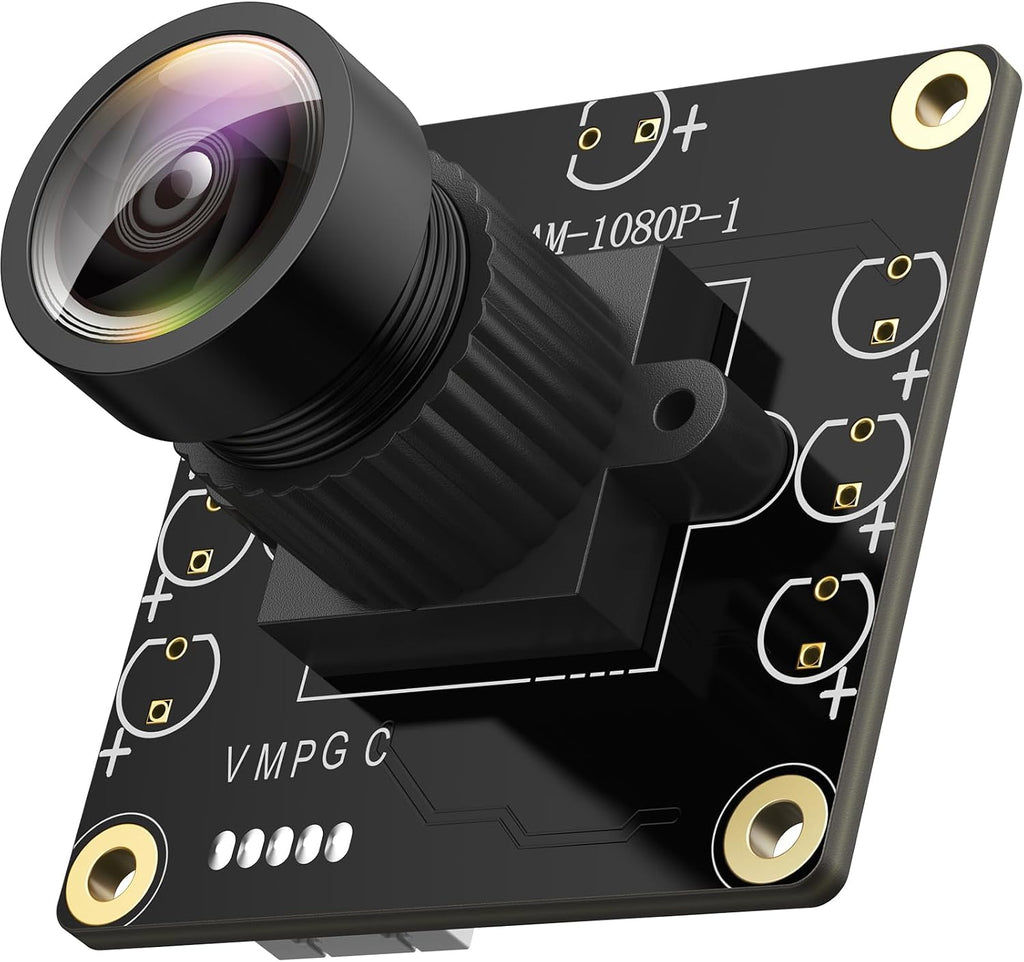

The module is characterized by a very small form of printed circuit board (PCB) with dimensions of 32 x 32 x 6,5 mm. Such a compact size makes it an excellent solution for integration in devices with limited space or in non-standard enclosures. This design makes the camera an ideal candidate for OEM applications.
- The minimalist design in the form of bare PCB facilitates installation in various projects.
- The dimensions of the tile are only 32 x 32 x 6.5 mm, which minimizes the space occupied.
Key Advantages and Features of the Product
- Native UVC compliance eliminates the need to install drivers.
- Excellent picture quality thanks to Full HD (1080p) resolution at 30 fps. /s.
- 130° wide-angle lens (diagonal) with M12 mount for maximum coverage.
- The compact 32x32x6,5mm PCB plate facilitates integration into confined spaces.
- Wide compatibility with Windows, Linux, MacOS and Android systems, including popular development platforms.
- The robust construction ensures operation in the temperature range 0°C to 60°C.
- Support dual video stream YUY2 and MJPEG for bandwidth optimization.
- It is certified FCC/CE/UKCA and meets RoHS and REACH-SVHC standards.
Technical data
- Sensor technology: CMOS
- Communication technology: USB 2.0 High-Speed
- Supported operating systems: Windows, Linux (V4L2), Android, Mac OS
- Type of lens: Wide angle (M12)
- Type of focus: Constant focus
- Video capture resolution: 1920x1080p
- Supported video formats: MJPEG, YUY2
- Image capture speed: 30 FPS
- Angle of view (horizontal): 103 Degrees
- Dimensions of PCB (D x width x H ): 32 x 32 x 6.5 mm
- Working temperature range: 0°C to 60°C
- Power supply: 5V with USB bus
- Recommended Uses: Videoconferencing, Live Broadcasting, Computer Vision Projects, Automatic Inspection, Machine Vision, Embedded Vision.
- Brand: Innomaker
- Model: U20CAM-1080P
- Country of origin: China
Contents of the Set
- The set does not include additional accessories.
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | INNOCN |
| Parametry | Megapixels | 2.1 MP |
| Parametry | Built-in microphone | No |
| Parametry | Face tracking | No |
| Parametry | Connectivity | USB 2.0 |
| Parametry | EAN (GTIN) | 781520761427 |
| Parametry | Manufacturer code | U20CAM-1080P |
| Parametry | Model | U20CAM-1080P |
| Parametry | Certificates of conformity | CE |
| Parametry | Batteries included | no |
