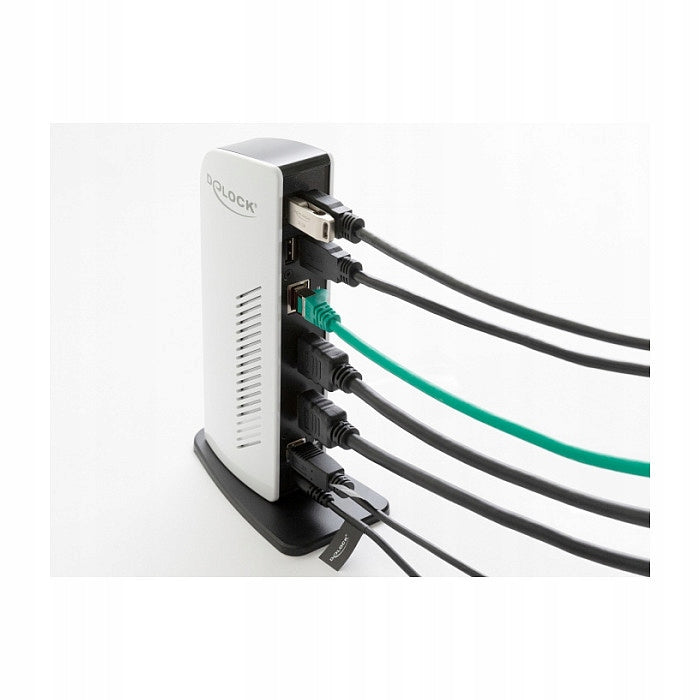

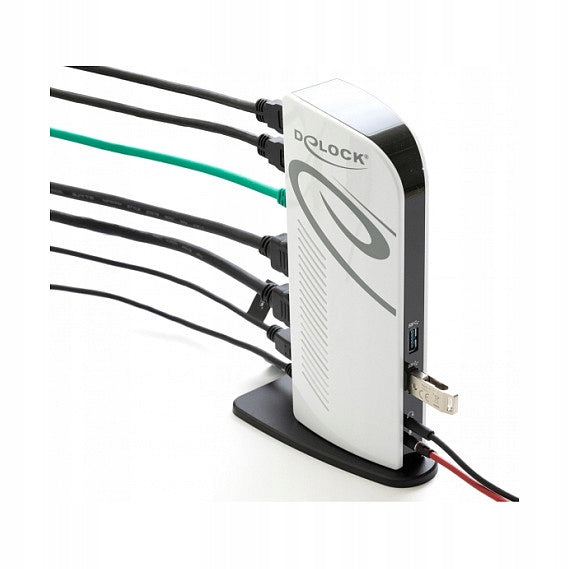

USB dokavimo stotelė su dviem HDMI, USB 3.2 ir LAN

Trumpai apie prekę

Prekė: USB dokavimo stotelė su dviem HDMI, USB 3.2 ir LAN. Kategorija: Dokavimo stotelės.

• Gamintojas: Delock
• Modelis: 87771

Purpose and functions

The USB docking station extends the capabilities of your laptop or desktop computer by providing additional video outputs, USB ports, a network connection, and an audio jack for multitasking and connecting external devices.

Video outputs

The device has two HDMI outputs that allow you to connect two monitors simultaneously with a maximum resolution of 2560 x 1440 px, which allows you to expand the desktop and support multi-screen configurations in office and multimedia applications.

Ports and connectivity

The station offers a combination of ports: 2 x USB 3.2 Gen 1 Type-A, 1 x USB 3.2 Gen 1 Type-B and 4 x USB 2.0, as well as one Ethernet (RJ-45) port and a 3,5 mm headphone jack. The connection to the computer is realized with a USB Type-A to USB Type-B cable, which simplifies integration with most computers equipped with USB ports.

Power supply and design

The power supply and operating parameters of the device include an operating voltage of 5 V and an output current of 4 A; the AC input frequency is given as 50 to 60 Hz, and the typical input current is 0,8 A. The housing is available in black and white color variants; the dimensions of the device are 38 mm wide, 78 mm deep and 190 mm high.

Specification

• Connectivity Technology: Wired
• Number of USB 2.0 ports: 4
• Operating Voltage: 5 V
• Output Current: 4 A
• Input Current: 0,8 A
• AC Input Frequency: 50 - 60 Hz
