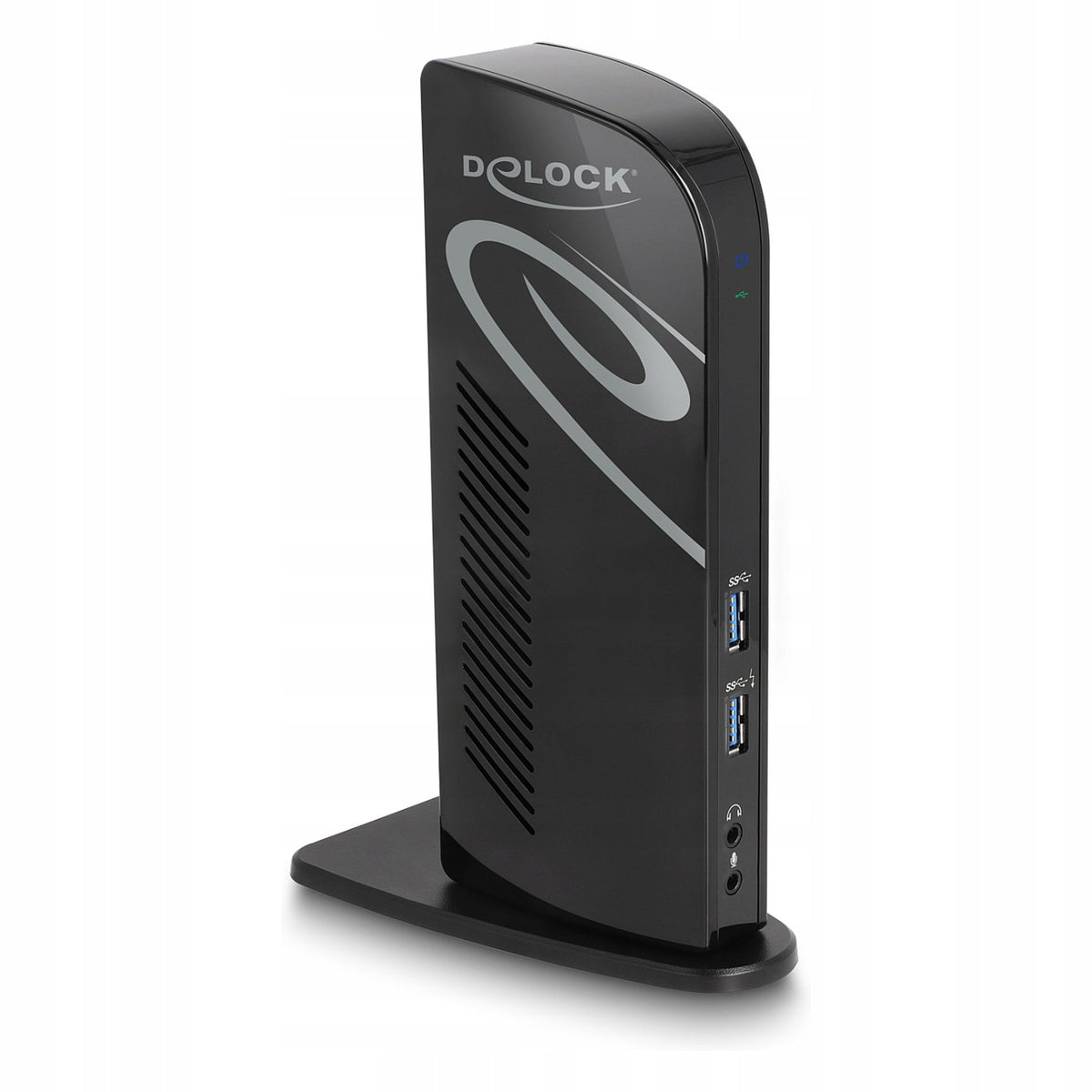

USB 3.2 prijungimo stotelė su 2x DisplayPort 4K, RJ45 ir garso jungtimis

Trumpai apie prekę

Prekė: USB 3.2 prijungimo stotelė su 2x DisplayPort 4K, RJ45 ir garso jungtimis. Kategorija: Dokavimo stotelės.

• Gamintojas: Delock
• Modelis: 87728

Purpose

The docking station allows you to connect additional devices and two external monitors to a computer with a USB port, extending the possibilities of office and multimedia work without the need to expand the laptop.

Video and Displays

The device offers two DisplayPort outputs supporting a maximum resolution of 3840 x 2160 px at 60 Hz, which allows you to connect two monitors in extended and mirrored modes. The number of simultaneously supported screens is 2, and 4K support allows you to display high-detail content.

Ports and connectivity

The station provides an extensive set of ports: multiple USB 3.2 Gen 1 connectors, one RJ-45 Ethernet port and a 3,5 mm headphone jack. The kit comes with power cords and USB Type-A to Micro-B and USB Type-C to Micro-B cables, and the host interface supports both USB Type-A and USB Type-C.

Power, dimensions and compatibility

The power supply is carried out by an external power supply (alternating current) with an operating voltage of 20 V; the device operates at an input frequency of 50 to 60 Hz. The housing measures 78 mm × 190 mm × 38 mm and is made in black. The station is compatible with Windows 8.1, Windows 10, Windows 11, macOS 12.0 Monterey and macOS 13.0 Ventura (DisplayLink drivers required on supported systems).

Specification

• Connectivity Technology: Docking
• Host Interface: USB 3.2 Gen 1 (USB 3.1 Gen 1) Type-A + Type-C
• Number of DisplayPort: 2
• Number of Displays Supported: 2
• Maximum refresh rate: 60 Hz
• Type of power supply: AC
• Operating Voltage: 20 V
• Input Current: 1.3 A
• Output current: 2.25 A
• AC Input Frequency: 50 - 60 Hz
• USB cable length: 1 m
