Universalus skaitmeninis multimetras

Trumpai apie prekę

Prekė: Universalus skaitmeninis multimetras. Kategorija: Multimetrai.

• Gamintojas: Niteo Tools
• Modelis: MLTM0001

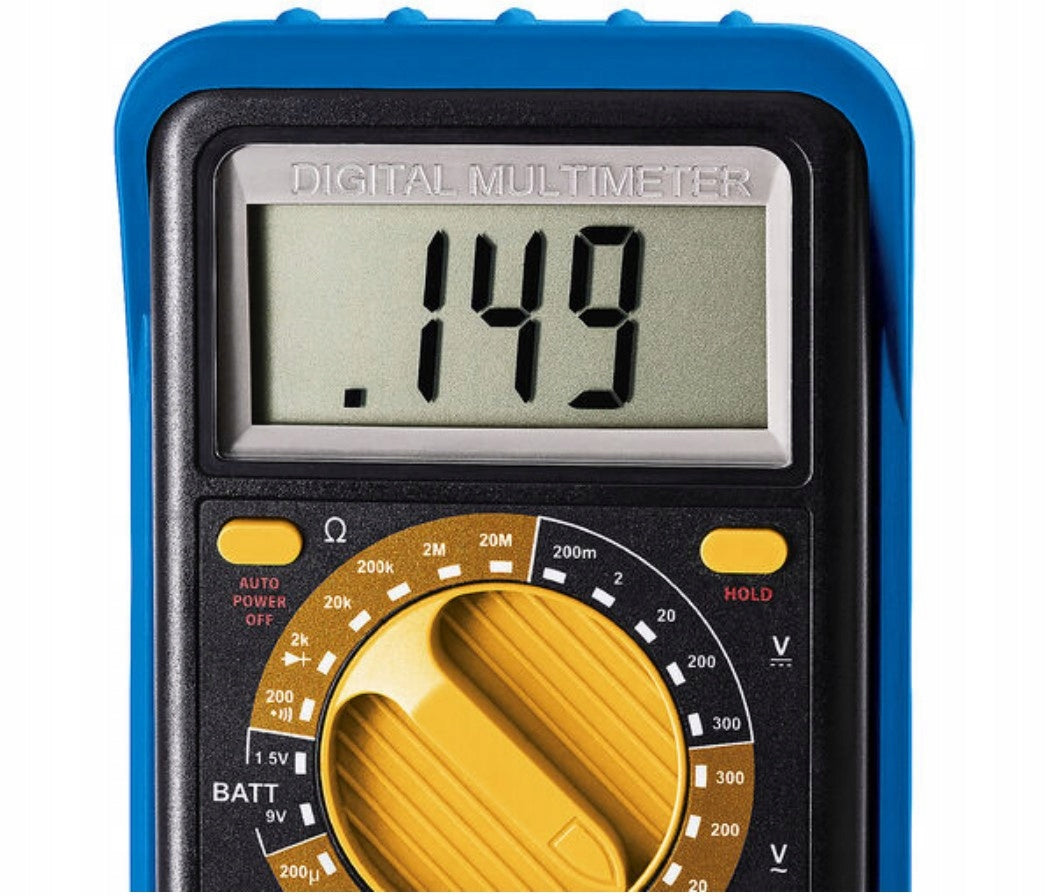

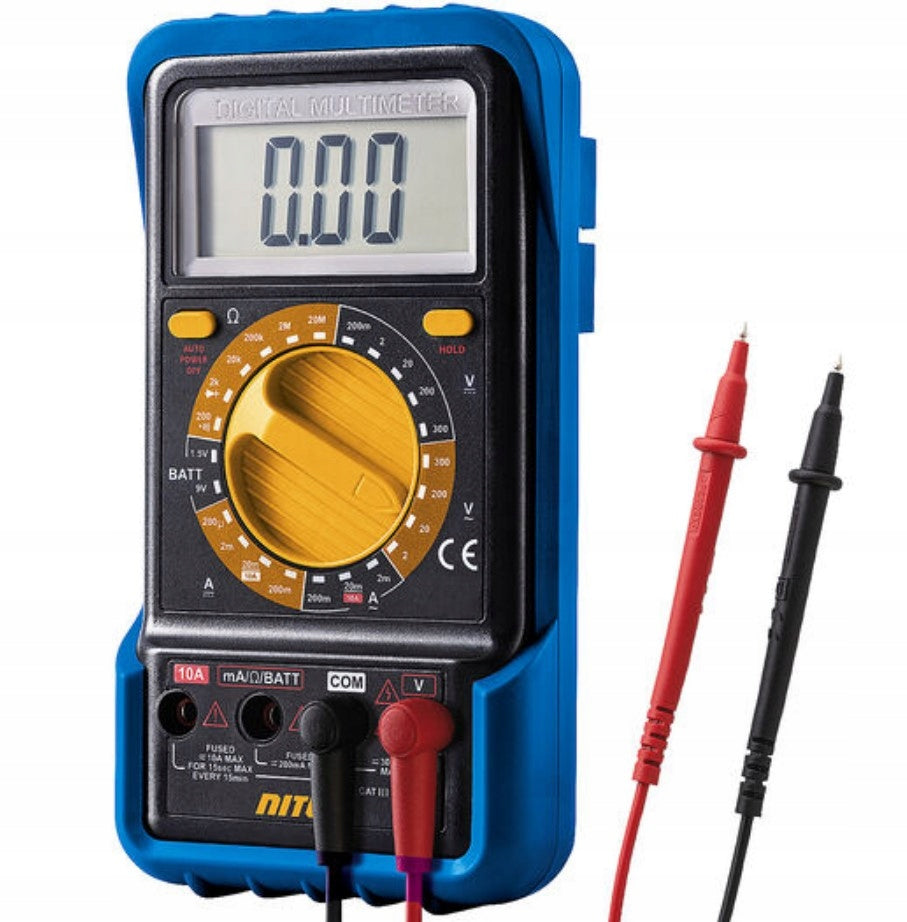

The NITEO multimeter is an electric meter that can measure the basic values important in the operation of electrical equipment. The universal electric meter is used to measure voltage, current and resistance, test the continuity of the electrical circuit, check electrical and electronic components as well as perform diode and battery tests. A high-quality tool for your workshop.

Specification:

• Model: NITEO MLTM0001
• LCD display
• Display/Screen Size: 2,55"
• HOLD function – remembering the measurement result
• Automatic shut-off function
• 2 measuring probes
• Practical case
• Battery and diode test and circuit continuity test
• Dimensions: 13,8 x 19 x 6 cm
• Weight: 0,49 kg
• Power supply: 1x 9V 6LR61 or 6F22 battery (included)
• Dekra Quality Certificate

Technical specification:

• 6 resistance measurement ranges: 200Ω / 2 kΩ / 20 kΩ / 200 kΩ / 2 MΩ / 20 MΩ
• 5 DC measurement ranges: 200 μA/ 2 mA / 20 mA / 200 mA / and up to max. 10 A
• 4 AC measurement ranges: 200 mA / 20mA /2 mA and up to max. 10 A
• 4 AC voltage measurement ranges: 2V/20V/200V/300V
• 5 DC voltage measurement ranges: 200 mV / 2 V / 20 V / 200 V / 300 V
• 2 battery test ranges: 1,5V / 9V
• Protection class (double insulation): Class II
• Fuses: F1: F 250 mA / 300 V, F2: F 10 A / 300 V
• Measurement category: Cat. III (CAT III 300V)
• Surge category (without protective cap on the measuring court): Cat. II (CAT II)
• Surge category (with protective cap on the measuring court): Cat. III (CAT III)

Set Contents:

• Multimeter

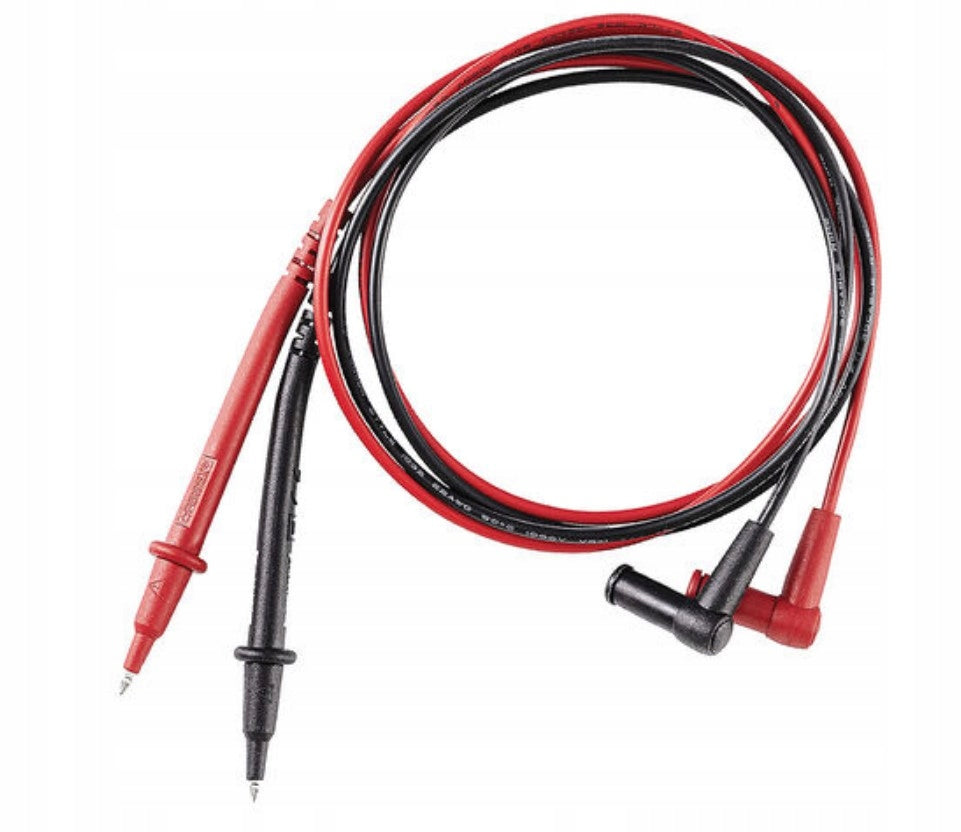

• Measuring probe (2 pieces)
• 9 V battery (type 6LR61 or 6F22)
• Case - protective case for multimeter
• User manual PL
