Universalus reguliuojamas teleskopinis lubų projektoriaus laikiklis

Trumpai apie prekę

Prekė: Universalus reguliuojamas teleskopinis lubų projektoriaus laikiklis. Kategorija: Rankenos.

• Gamintojas: TAMDEL
• Modelis: ETX-UDP1
• Spalva: black

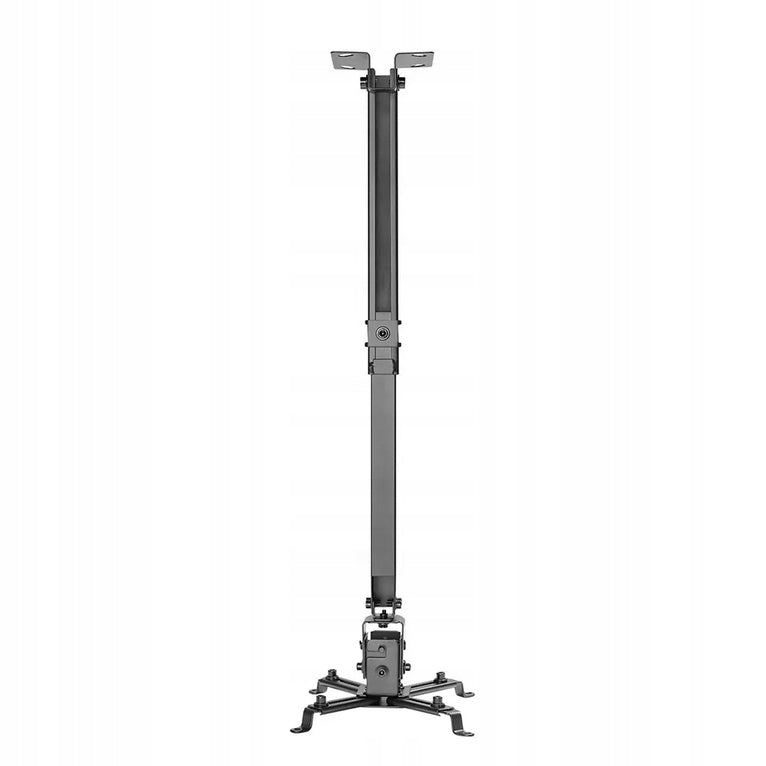

The TAMDEL ETX-UDP1 universal projector mount is a robust steel construction that is ideal for mounting projectors weighing up to 20 kg. Thanks to the adjustable angle of inclination and rotation, this holder is perfect for both ceiling and wall installations. It allows flexible projector positioning with four adjustable arms that can be adjusted to a wide range of mounting holes. The quick release system allows you to easily install the projector and quickly remove it for maintenance without having to adjust the settings again.

▶ Assembly versatility: Fits most projectors weighing up to 20 kg.

▶ Tilt and swivel angle adjustment: The tilt range from +15° to -15°, and the rotation from +8° to -8° allows you to precisely position the projector for better image and glare reduction.

▶ Ease of installation: Quick installation thanks to the quick-release mechanism, which allows you to quickly put on and take off the projector without losing previous settings.

▶ Cable management: The holder has a built-in cable management system for aesthetic and orderly installation.

▶ Sturdy construction: Made of high quality steel, powder coated for durability and robustness.

✅ TAMDEL ETX-UDP1 universal handle – robustness and versatility

The TAMDEL ETX-UDP1 mount is a versatile solution that provides stable mounting for projectors weighing up to 20 kg. Its solid construction made of high-quality steel and the ability to adapt to various types of projectors make it perfect for offices, conference rooms, and home cinemas . With its adjustable arms, the holder can be easily customized to fit different projector sizes and types, making it an incredibly versatile product.

✅ Adjustable tilt and swivel angles

The ETX-UDP1 offers full adjustment of the tilt angle (+15° to -15°) and rotation (+8° to -8°), allowing the projector to be precisely positioned in the optimal position relative to the screen. The ability to adjust the position of the projector allows you to eliminate glare and improve image quality, which is especially important for installations in more difficult lighting conditions. Thanks to this, the handle meets the expectations of even the most demanding users.

✅ Aesthetics and cable management

Cable management is not only a matter of aesthetics, but also of functionality. The TAMDEL ETX-UDP1 is equipped with a cable management system that allows you to hide wires, keeping your installation neat and tidy. This is important both in public spaces and in homes, where aesthetics and minimalism in installation are of great importance.

✅ Easy installation and quick access to the projector

One of the key features of the TAMDEL ETX-UDP1 mount is the quick-release mechanism. It allows you to quickly and conveniently install the projector without the need for complicated setup. When the projector needs to be serviced or replaced, it can be easily removed without violating previous settings. It is an ideal solution for those who value functionality and convenience.

✅ Adaptation to different assembly needs

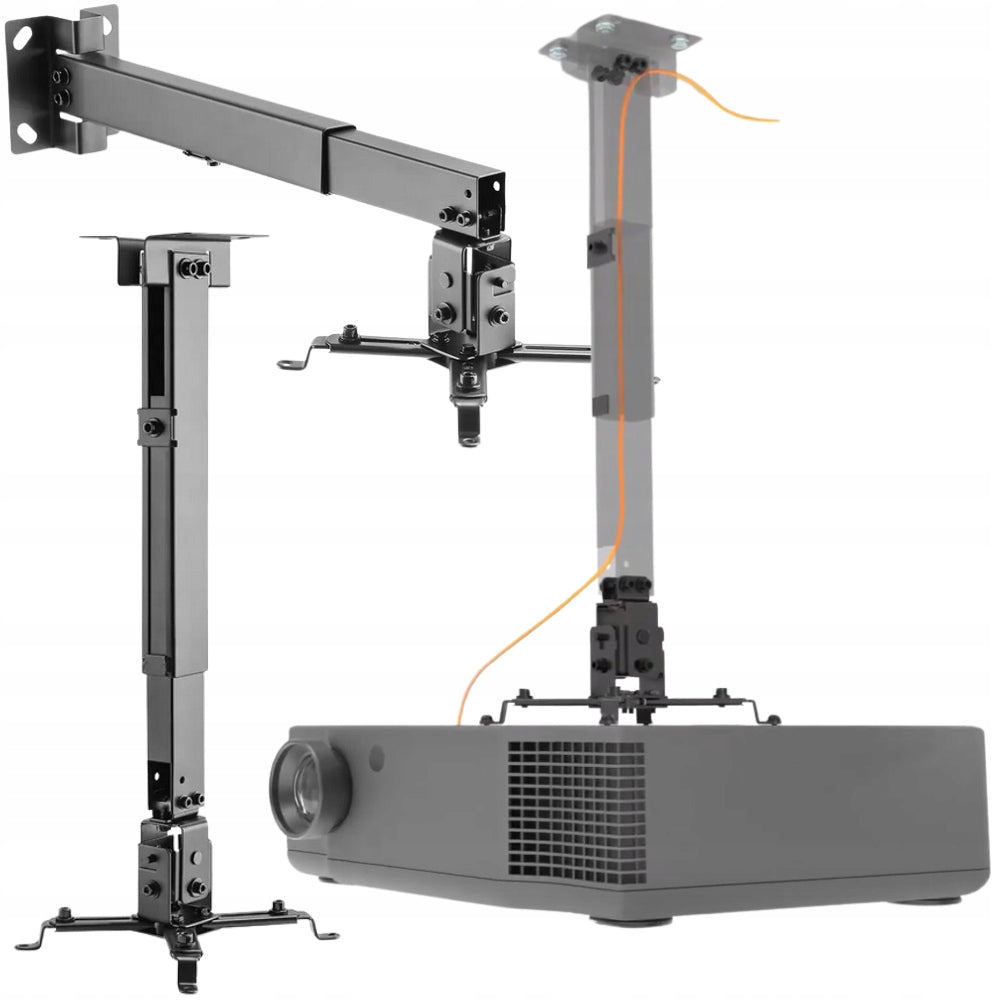

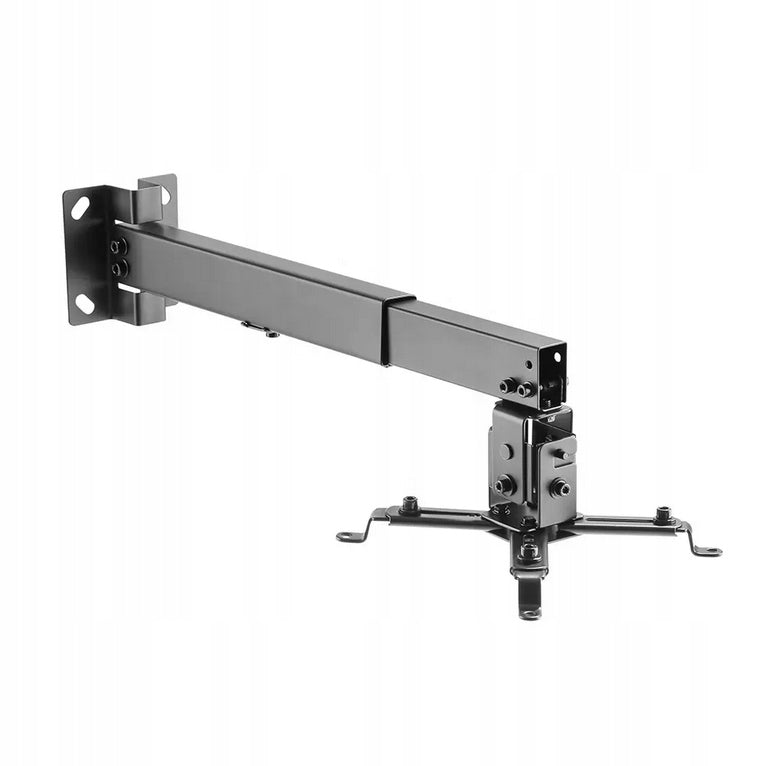

The TAMDEL ETX-UDP1 mount is compatible with both wall and ceiling mountings for added versatility. Thanks to the adjustable range of the support arms and the extension in the range of 430-650 mm, users can adjust the holder to their individual needs, regardless of the size of the room or the type of projector. This makes the ETX-UDP1 an excellent choice for both small and large spaces.

✅ SPECIFICATION

• Material: Powder coated steel
• Color: Matte Black
• Dimensions: 237 x 203 x 650 mm
• Mounting range: 225-316 mm
• Tilt range: +15° to -15°
• Rotation range: +8° to -8°
• Retracting range: 430-650 mm
• Installation: Wall and Ceiling
• Cable Management: Yes
• Maximum projector weight: 20 kg (44 lbs)

✅ SET INCLUDES:

▪ Adjustable projector mount

▪ 4x dowel M10x42mm + 4x screw M6x60mm

▪ Assembly instructions in Polish

▪ Wrenches for mounting and adjusting

▪ Set of pads

▪ Set of screws for mounting the projector:

• 4x screw M5x8mm
• 4x screw M4x8mm
• 4x screw M3x8mm

✅FAQ - Frequently Asked Questions

1. Does the TAMDEL ETX-UDP1 mount fit all projectors?

Yes, the mount is universal and fits most projectors weighing up to 20 kg, thanks to the adjustable support arms.

2. Can I mount the mount on both the ceiling and wall?

Yes, the mount is compatible with both ceiling and wall mounting, giving you plenty of flexibility to install.

3. Does the handle allow you to adjust the angle of inclination and rotation?

Yes, the mount offers tilt angle adjustment from +15° to -15° and rotation from +8° to -8°, allowing you to precisely position the projector relative to the screen.

4. What are the available handle colors?

The TAMDEL ETX-UDP1 is available in matte black.

5. What surfaces are suitable for mounting the handle?

The bracket can be mounted on solid walls and ceilings, which makes it very versatile and suitable for various installation spaces.
