Ultragarsinis dažų storio matuoklis su programine įranga kompiuteriui

Trumpai apie prekę

Prekė: Ultragarsinis dažų storio matuoklis su programine įranga kompiuteriui. Kategorija: Dažų storio matuokliai.

• Gamintojas: Benetech
• Modelis: GT1202

WITH PC SOFTWARE

⭐⭐⭐⭐⭐

Are you looking for an uncompromising device for non-destructive testing of material thickness? The Benetech GT1202 meter is a technologically advanced, microprocessor-controlled ultrasonic thickness and sound velocity meter. This is a professional tool designed for use in demanding industrial and workshop conditions, quality control, and technical diagnostics of pipelines and pressure vessels.

⭐⭐⭐⭐⭐

The gauge offers an impressive measurement range of 1.00 mm to 300.0 mm (for steel with a standard probe). The device automatically adjusts its measurement resolution for the most precise readings:

• 0.01 mm – for highly precise measurements from 1.00 to 99.99 mm.
• 0.1 mm – for a wide measurement range from 100.0 to 300.0 mm. This flexible approach makes the device ideal for testing both very thin sheets and thick structural components.

⭐⭐⭐⭐⭐

The Benetech GT1202 device uses the latest generation microprocessor, which is responsible for the rapid processing of ultrasonic wave signals. Thanks to this, the thickness measurement is carried out in a fully non-destructive manner, without interfering with the structure of the tested material. The results are presented on the display in a fraction of a second, guaranteeing the highest accuracy and repeatability of measurements, making it an indispensable partner in the daily work of engineers and diagnosticians.

⭐⭐⭐⭐⭐

Benetech GT1202 is a versatile tool that can be used to measure the thickness of any good ultrasonic wave conductor with parallel surfaces (upper and lower). The device is ideal for measuring:

• Metals (steel, iron, aluminum, copper, brass, zinc, silver, gold and others),
• Plastics (e.g. nylon, acrylic resin, acetate resin),
• Ceramics and glass,
• Liquids (water, glycerin, etc. ).
• Note: The device is not suitable for measuring cast iron due to the too large internal particles of this material.

⭐⭐⭐⭐⭐

The accuracy of ultrasonic measurement depends on correctly matching the wave's propagation speed in the material. The GT1202 gauge offers powerful capabilities in this area:

• 12 preset sound velocities for the most common materials (such as steel, aluminum, brass, copper, etc.).
• 3 custom (user-defined) sound velocities that can be manually configured.
• Wide sound velocity adjustment range from 1000 to 9999 m/s.
• Quick Access: A dedicated VEL button allows instant access to velocity settings directly from the measurement screen.

⭐⭐⭐⭐⭐

The gauge allows easy switching between two dedicated graphical interfaces on the display:

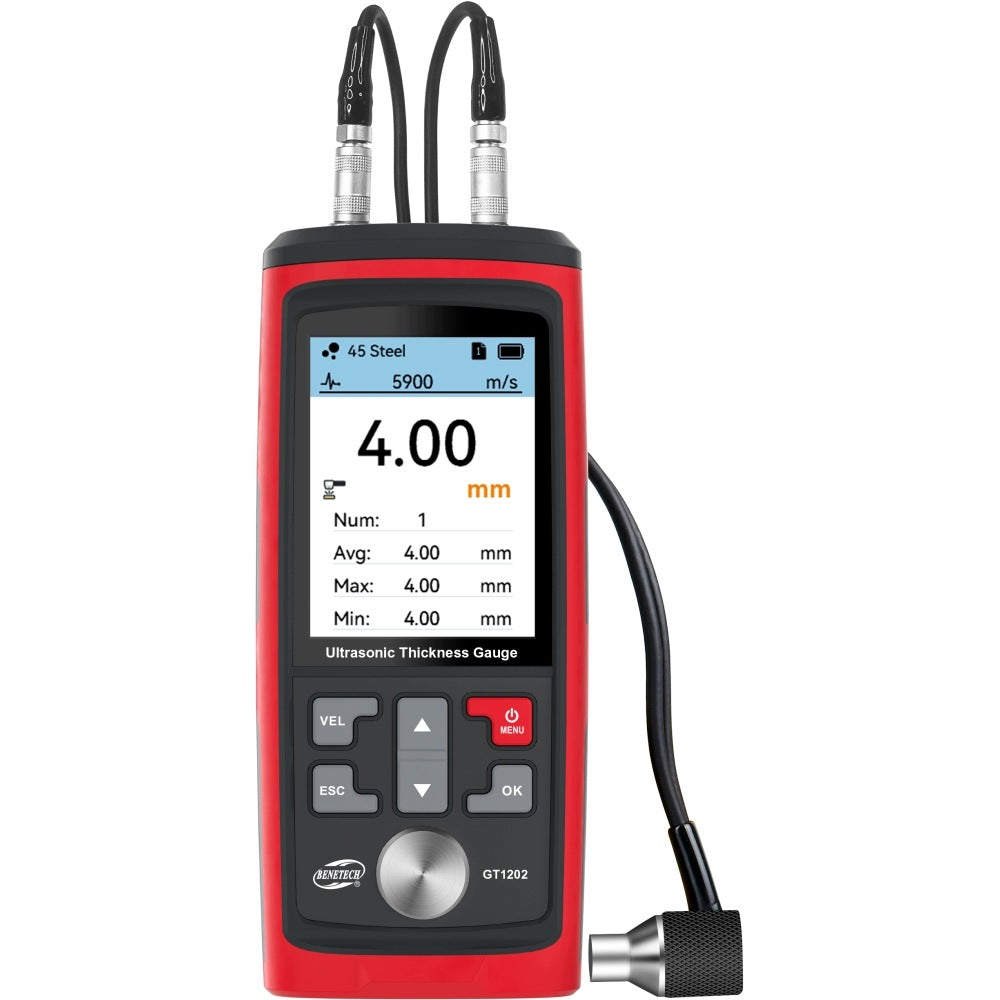

1. INTERFACE 1 (Statistical Mode): Displays the current measurement result, unit, number of measurements in a series (Num), and continuously calculated values: Average (Avg), Maximum (Max), and Minimum (Min).
2. INTERFACE 2 (Information Mode): Shows information about the currently selected probe type and defined alarm thresholds (upper and lower measurement limits).

⭐⭐⭐⭐⭐

The device is equipped with an advanced limit value control system. Users can easily define the maximum and minimum allowable thickness for the tested element. If a value outside the set range is detected:

• The result on the display automatically highlights in a warning red color,
• When the audible function is enabled, the device generates a clear audible signal, informing the operator of a defect or abnormality without needing to constantly watch the screen.

⭐⭐⭐⭐⭐

Benetech GT1202 has a built-in memory that allows you to save up to 1,500 individual readings :

• Data is organized into 15 independent files , each of which can hold up to 100 measurements .
• Manual recording: allows for controlled addition of selected results to memory.
• Auto-save: after activating this function, each correctly performed measurement is automatically saved in the selected file, which drastically speeds up serial work.
• From the device menu, there is an option to conveniently view file statistics and selectively delete erroneous records (VEL + OK button).

⭐⭐⭐⭐⭐

The gauge is designed for maximum ergonomics and ease of use:

• Voice Message Function: When activated, the device announces the measured thickness value immediately after the measurement. This allows full concentration on precise probe placement on the tested element.
• High-Brightness LCD Backlight: The screen provides excellent readability in both dark rooms and bright sunlight. Users can choose between constant backlight or power-saving mode.
• Intuitive Menu: A simple icon-based structure facilitates navigation, and the option to select English ensures hassle-free configuration.

⭐⭐⭐⭐⭐

Forget about constantly replacing disposable batteries. The GT1202 is powered by an efficient and eco-friendly 1000 mAh, 3.7V lithium battery.

• Charging is done via a standard USB port (5V 1A) located at the bottom of the housing.
• A charging cable is included, allowing you to connect the device to a wall charger, power bank, or computer.
• A clear battery level indicator is constantly displayed on the screen, so you always know when to charge the device.

⭐⭐⭐⭐⭐

The gauge works with dedicated PC software for analyzing and archiving measurement data. By downloading the software directly from the manufacturer's website, you gain the ability to professionally manage saved measurements, generate reports, and conduct in-depth analysis of collected results on your computer screen.

⭐⭐⭐⭐⭐

The device has an integrated metal calibration block with a standard thickness of 4.00 mm built directly into the meter housing (metal disc on the front panel).

• Calibrating the wave thickness and velocity is incredibly simple: just apply a little bit of coupling gel to the built-in sample, run the "Calibration" function from the context menu, apply the probe and wait for the progress bar to fill. The device will automatically calibrate itself to the reference values ​​(5900 m/s and 4.00 mm), ensuring full readiness for high-precision tasks.

⭐⭐⭐⭐⭐

The Benetech GT1202 device is housed in an extremely handy and ergonomic housing covered with a high-quality anti-slip layer in red and black.

• Additional ribbing on the sides ensures a secure grip even when wearing work gloves or with wet hands.

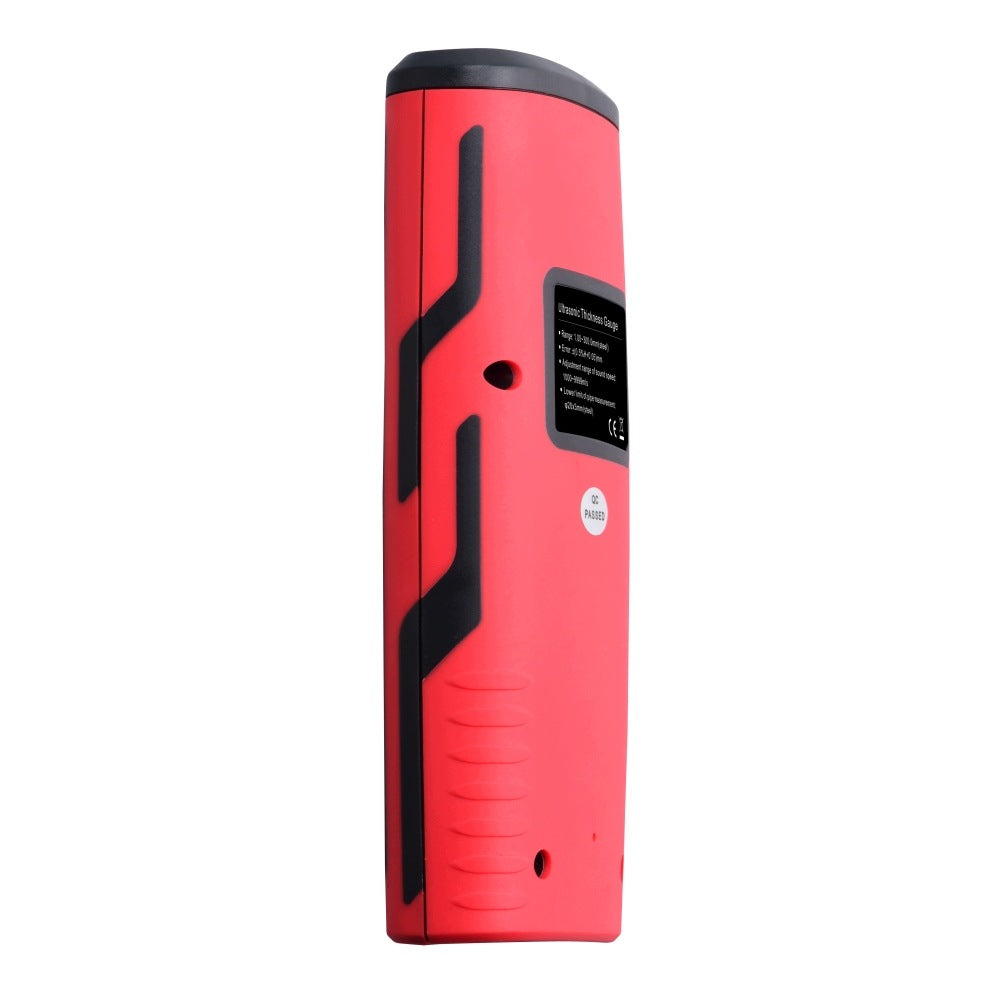

• On the back of the device there is a clear nameplate with the CE certificate and basic technical parameters.
• The upper probe sockets are firmly seated and precisely fitted to the metal plugs of the measurement cable, preventing accidental disconnections.

⭐⭐⭐⭐⭐

• Model: Benetech GT1202
• Measuring range: 1.00 ~ 300.0 mm (for steel)
• Accuracy (measurement error): +/- (0.5%H + 0.05) mm (where H is the measured thickness)
• Resolution: 0.01 mm (in the range of 1.00 - 99.99 mm) / 0.1 mm (in the range of 100 - 300 mm)
• Lower pipe measurement limit (steel): 20 x 3 mm
• Sound speed measurement range: 1000 ~ 9999 m/s
• Operating frequency: 5 MHz / 2.5 MHz
• Power supply: Built-in 3.7V 1000mAh lithium battery
• Charging parameters: USB-C port 5V, 1A
• Data memory: up to 1500 measurements (15 files of 100 entries)
• Operating temperature: 0 ~ 40°C
• Device dimensions: 150.6 x 65.3 x 35 mm
• Weight: 158 g
• Default probe included: 5Md10 (standard factory configuration, range 1.00 - 300.0 mm)

⭐⭐⭐⭐⭐

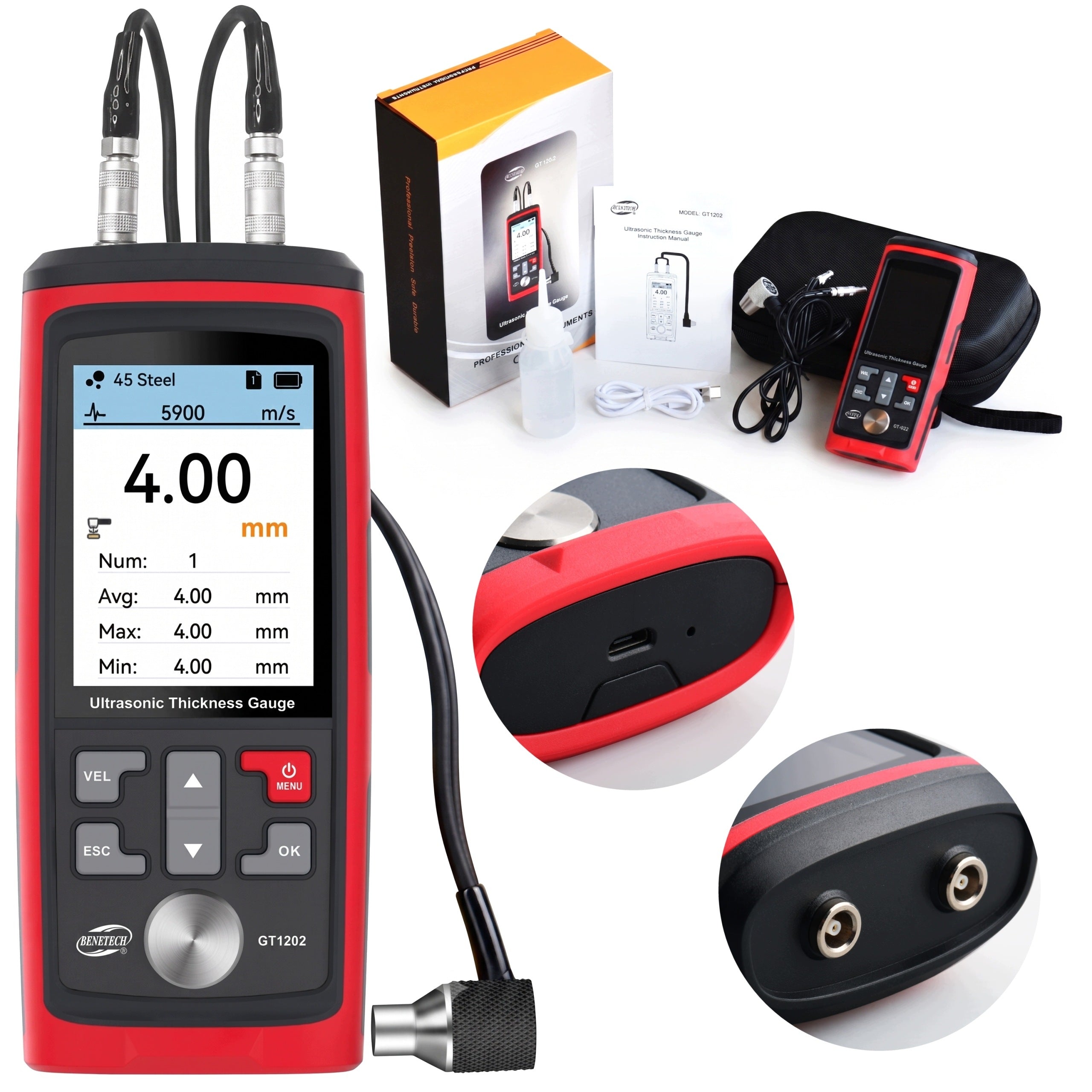

• 1 x Ultrasonic Thickness Gauge GT1202
• 1 x Measuring probe 5Md10
• 1 x Coupling Gel
• 1 x USB-C cable
• 1 x Protective case
• 1 x User manual in Polish and English!
• 1 x Original manufacturer's packaging

BENETECH is a manufacturer of advanced measuring and control equipment. A specialized supplier of professional digital measuring tools, as well as other electronic devices.

BENETECH POLAND is an authorized and direct distributor of this brand in Poland and Europe.

In the brand catalog you will find m.in:

• pyrometers and thermal imaging cameras,
• anemometers (wind meters),
• humidity meters and hygrometers,
• detectors and meters of gases and air quality,
• sonometers (decibel meters) and lux meters (light meters),
• laser rangefinders and tachometers,
• thermometers and pressure gauges,
• thickness and vibration meters (vibrometers),
• tools for electricians and cable detectors,
• electromagnetic radiation meter,
• home and industrial electronics equipment.

Directive EMC 2014/30/EU and RoHS 2011/65/EU

At the customer’s request, we attach a calibration report from the manufacturer translated into English. We receive the document electronically a few days later. In order to avoid delay in the execution of the order, we send the calibration report within about 7 working days to the e-mail provided in the order or assigned to the account.

The product meets European standards and directives, as evidenced by the CE certificate, at the customer's request this document is also attached.

The manufacturer’s calibration report and declaration of conformity (CE) is a free, optional document and therefore is not sold in this offer.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Benetech
Parametry	EAN (GTIN)	5903738812257
Parametry	Model	GT1202
Parametry	Probe type	on the wire
Parametry	Read-out history	yes
Parametry	Manufacturer code	GT1202
Parametry	Additional information	automatic shutdown,illuminated display,case included
