Tvirtinimo žiedas KMC Ø20x280 mm, tinka Farys Lift

Trumpai apie prekę

Prekė: Tvirtinimo žiedas KMC Ø20x280 mm, tinka Farys Lift. Kategorija: Keltuvai stulpams.

• Gamintojas: Farys
• Modelis: kotwa 280

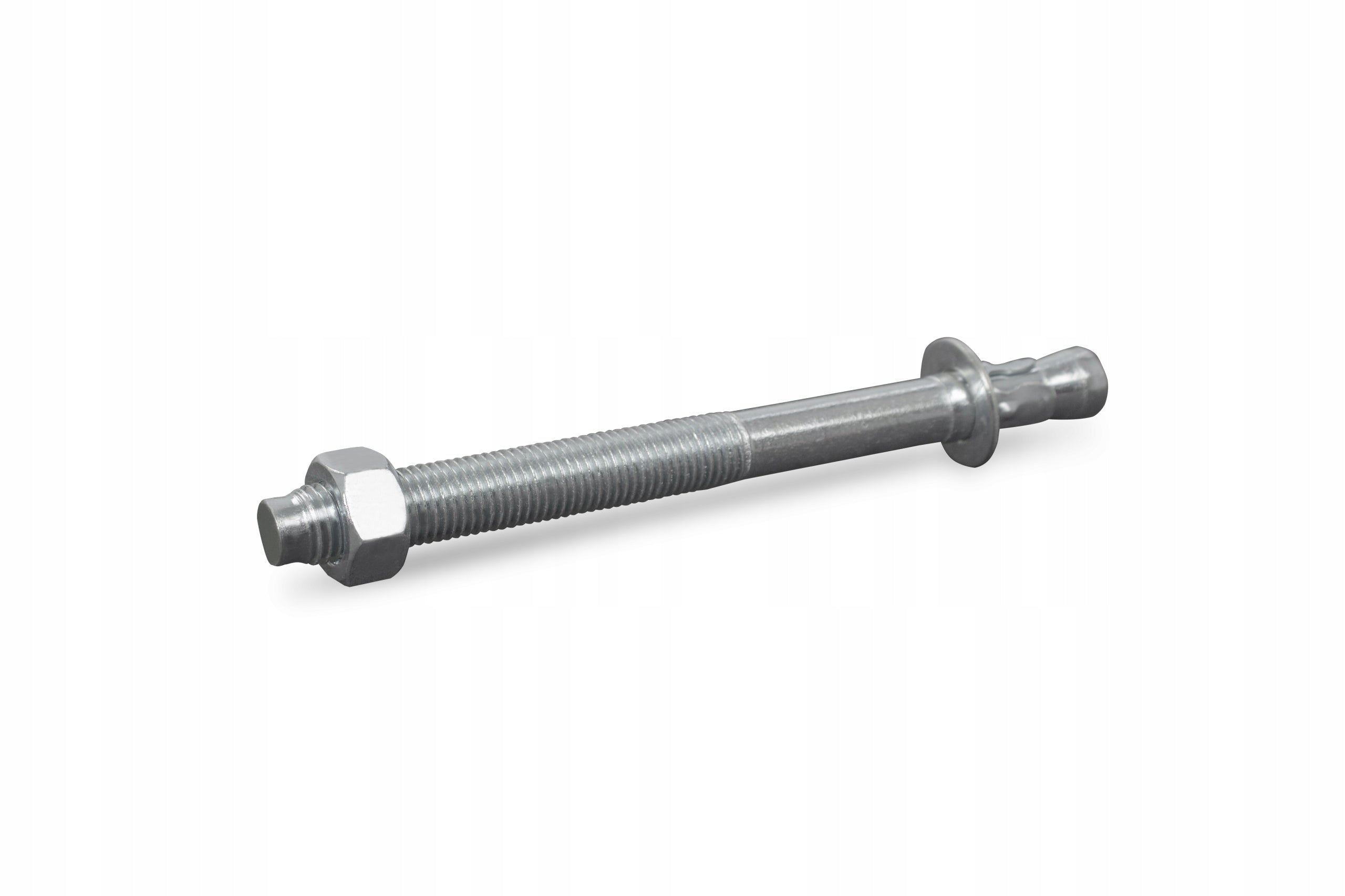

Certified KMC ring anchor Ø20x280 mm

The subject of the offer is 1 piece of certified KMC ring anchor with dimensions Ø20 × 280 mm, designed for durable and safe fastening of devices and structures exposed to high static loads.

The anchor is perfect for the installation of car lifters, in particular two-column lifts, as well as machinery, steel structures, poles, brackets and other elements that require secure anchoring in concrete.

Key Benefits:

✔ Certified KMC Ring Anchor

✔ High static load capacity

✔ Designed for car lift installation

✔ Solid carbon steel, minimum grade 4.8

✔ Galvanized zinc coating, minimum 5 μm thick, for corrosion protection

✔ Suitable for various concrete types

✔ Quick and easy installation

Applications:

KMC ring anchors are used for mounting:

• car lifts,
• two-post lifts,
• steel structures,
• industrial machinery and equipment,
• warehouse racks,
• poles and structural elements.

For lift installation, concrete class B25 or higher is recommended.

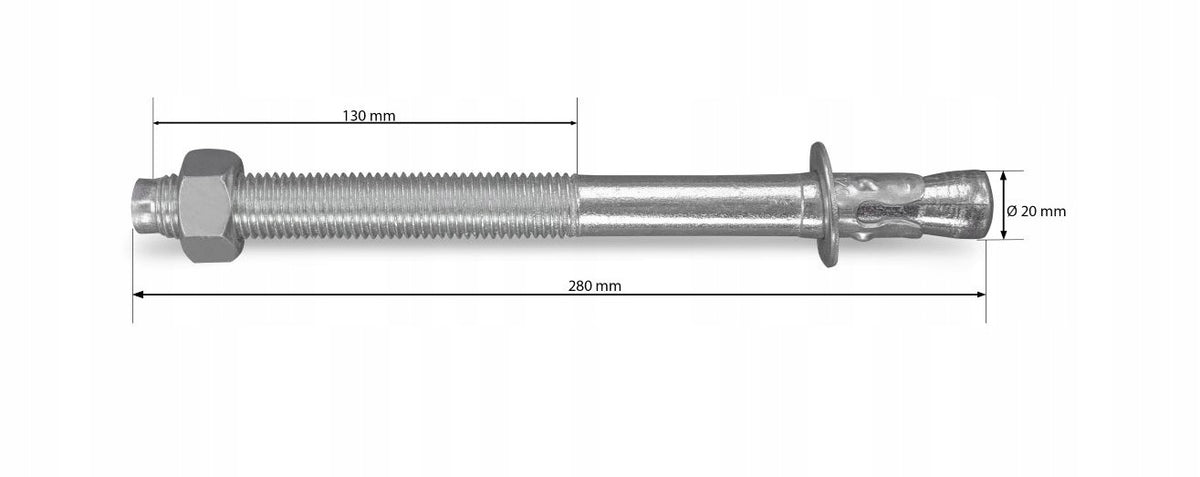

Technical data

• Producer: KMC
• Type: Ring Anchor
• Diameter: Ø20 mm
• Length: 280 mm
• Material: carbon steel
• Strength class: min. 4.8
• Coating: galvanized min. 5 μm
• Tightening torque: 140 Nm
• Technical approval: ITB AT-15-8190/2009

Assembly instructions

1. Designate mounting points on the attached element.
2. Drill holes in concrete substrate.
3. Thoroughly clean the holes from dust and drilling residue.
4. Put the anchor through the attached element and place it in the hole.
5. Drive the anchor into full embedding using a hammer or beater.
6. Tighten the anchor with a torque wrench with 140 Nm.
7. After tightening, the mount is ready for safe operation under load.

You buy

1 piece of KMC Ø20×280 mm certified ring anchor.

Why choose KMC anchors?

KMC anchors are designed for professional applications that require durable and secure fastening. Thanks to their high quality, ITB certificate and resistance to heavy loads, they are a proven solution for the installation of car lifts and many other steel structures.
