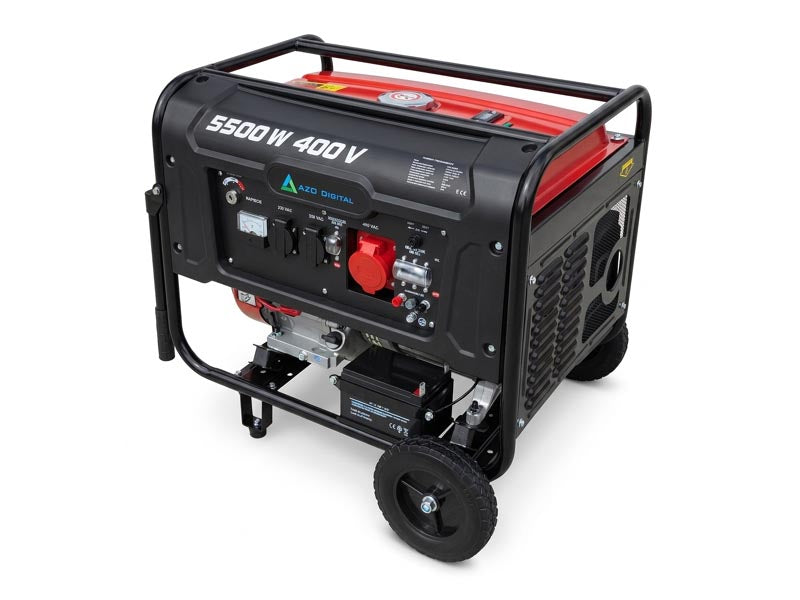

Trifazis generatorius AVR AGP-5500-3F, 5000W / 5500W

Trumpai apie prekę

Prekė: Trifazis generatorius AVR AGP-5500-3F, 5000W / 5500W. Kategorija: Elektros generatoriai.

• Gamintojas: AZO Digital
• Modelis: AGP-5500-3F

Three-phase Generator Set 5000W - Powerful Power and Full Versatility (400V / 230V)

The AGP-5500-3F aggregate is an uncompromising power source for powering three-phase machines or the entire household. The construction based on a solid, tube frame is the answer for the most demanding users. Equipped with copper generator winding and AVR stabilization system, it guarantees continuity of operation in the most difficult conditions. Designed for intensive use – wherever pure strength and endurance count. By combining an efficient engine with a huge 25-liter fuel tank, this model becomes an autonomous power plant, capable of working for hours without interruptions. Whether you need to power specialized construction machinery or protect your home from hours of blackout, this generator will provide stable energy wherever the traditional network fails.

Key features and unique functionalities

• Dual Power System (400 V / 230 V): the unit offers full three-phase functionality with continuous power 5 kW and efficient single-phase output 3 kW. It's two devices in one case.
• One 400 V socket and two 230 V sockets: optimal load distribution
• Copper Generator Winding: the highest class of conductivity. Copper provides much better resistance to overheating than aluminum, which translates into years of trouble-free operation under heavy loads.
• Clean Sinus 400 V / 230 V plus AVR stabilization: safe power supply for power tools and other demanding equipment.
• Double Start: comfortable electronic start supported by a traditional cable starter in case the battery is discharged.
• Huge 25 L tank: thanks to the powerful fuel tank, the unit can operate at full speed continuously for 11 hours, making it an ideal protection for long-term network failures.
• Fuel level indicator: quick assessment of the amount of gasoline in the tank without having to open it.
• Voltage indicator: allows for ongoing monitoring of AC output parameters

Wide spectrum of applications

1. Agriculture and Industry (Force 400 V)

Thanks to the three-phase output, the unit is ready to power heavy equipment:

• Electric motors, submersible pumps, milking machines and feed mixers.
• Concrete mixers, format saws and other construction machinery requiring a power socket.

2. Emergency power supply for Home and Business

The continuous power of 5 kW allows for safe maintenance of the most important systems:

• Lighting of the whole building, alarm systems, server rooms.
• Large refrigeration sets, freezers at retail outlets.
• Cooperation with CO furnaces and heat pumps.

3. Construction and Repair Teams

The robust 68x52x54 cm tube frame ensures easy transport and impact protection of components, while providing excellent engine cooling and instant access to components during maintenance.

4. Cooperation with renewable energy sources

Full compatibility with hybrid inverters of the ESB series (energy replenishment in warehouses).

AVR Voltage Stabilization and Security

The built-in AVR (Automatic Voltage Regulation) system ensures the stability of the output voltage, eliminating the risk of damage to your devices resulting from instability of network parameters.

• Low oil sensor: Automatically turns off the engine, preventing it from blurring.
• Overload protection: LED signaling and current cut-off if the maximum power is exceeded.
• Contactless ignition system: Guarantees maintenance-free operation and reliable ignition in all weather.
• DC 12V/8A output: Allows direct charging of car batteries.

Technical Specification in a nutshell:

• Continuous generator power: 5 kW (400 V)
• Maximum power: 5,5 kW (400 V)
• Maximum power: 3,3 kW (230 V)
• Engine: 9 kW 4-stroke OHV, air-cooled
• Generator winding: copper
• Start: Electric / Manual (link)
• Working time: Up to 11 hours under full load
• Housing: Pipe frame
• Fuel: Unleaded petrol (25 L tank)

Includes:

• AGP-5500-3F
• Transport wheels and handles (handles)
• Rubber feet
• 12 V Battery Charging Cables
• Practical oil funnel
• The Key to Candles
• Instructions for use in Polish
• Motor oil 2 x 0,6 L

Technical data

• Type of installation: tubular frame, wheels
• Specification: single cylinder, four stroke, air cooled, top valve
• Capacity: 420 cm3
• Cylinder diameter: 90 mm
• Piston stroke: 60 mm
• Degree of compression: 8,2:1
• Rated engine power: 9 kW / 3600 rpm
• Ignition: contactless system
• Starter: electric + cable
• Fuel Type: Unleaded Gasoline
• Tank capacity: 25 L
• Oil: 10W-30 (multi-season) or SAE30 (summer) / 1,1 L
• Type of cooling: air
• Protection against low oil levels: yes
• Rated voltage: 400 V / 230 V / 50 Hz
• Power supply system: three-phase
• Rated Current: 7,2 A / 13 A
• Rated speed of generator: 3000 rpm /min
• Rated generator power (COP): 5 kW / 3 kW
• Maximum generator power: 5,5 kW / 3,3 kW
• Generator Winding: Copper
• AC Output: 1 x 400 / 2 x 230
• DC Output (1x): 12 V / 8 A
• Voltage Stabilization: AVR
• Working time under full load: up to 11 hours
• Ambient temperature: -15~40 °C
• Maximum height: 1000 m above sea level.
• Noise Level (LWA): 97 dBA
• Degree of protection: IP23M
• Dimensions: 68 x 52 x 54 [cm]
• Net weight: 76 kg

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	AZO Digital
Parametry	Model	AGP-5500-3F
Parametry	Kind	portable
Parametry	Generator type	three-phase
Parametry	Maximum power	5000 W
Parametry	Fuel type	petrol
Parametry	Manufacturer code	AZO00D1393
