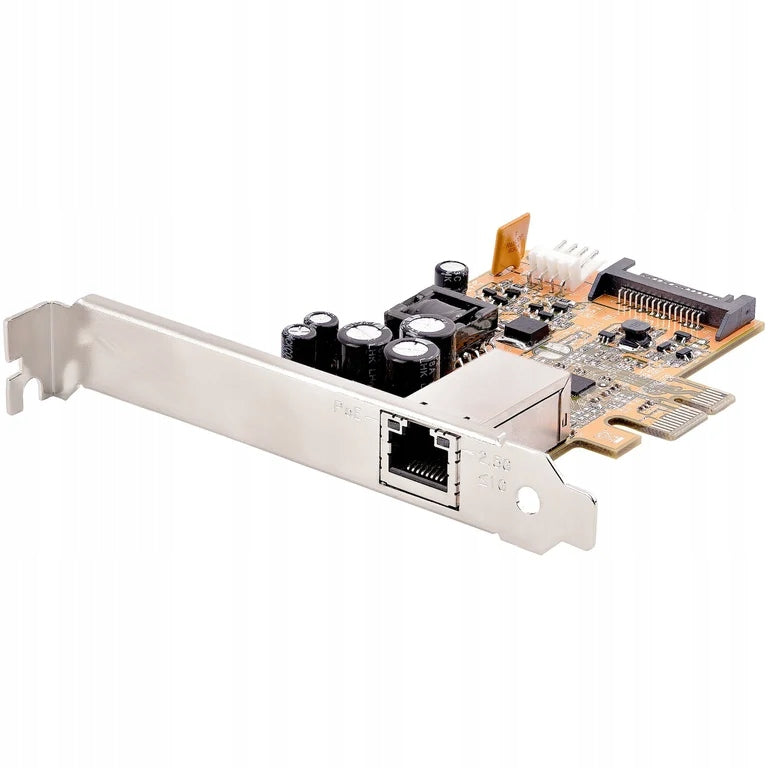

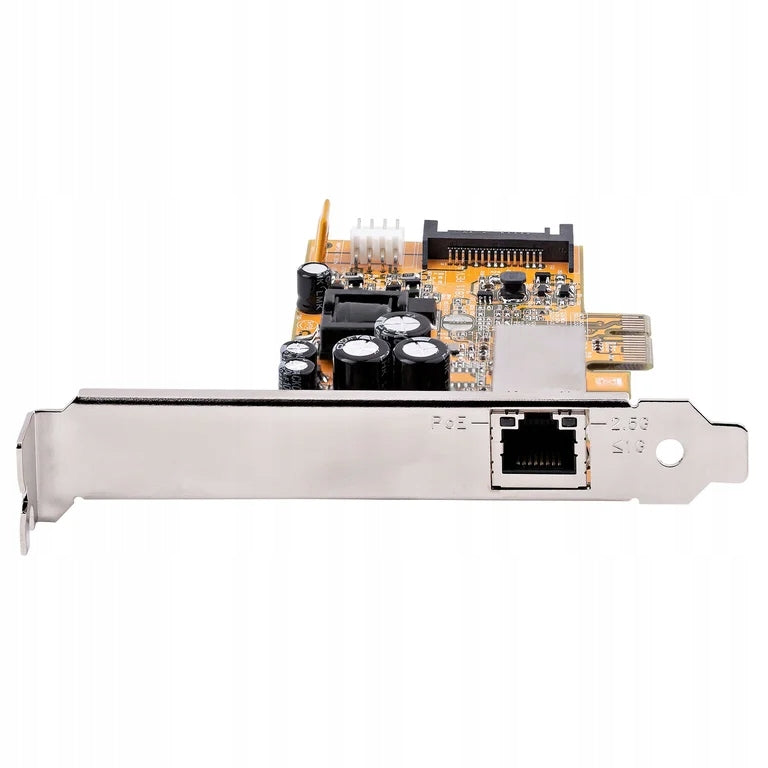

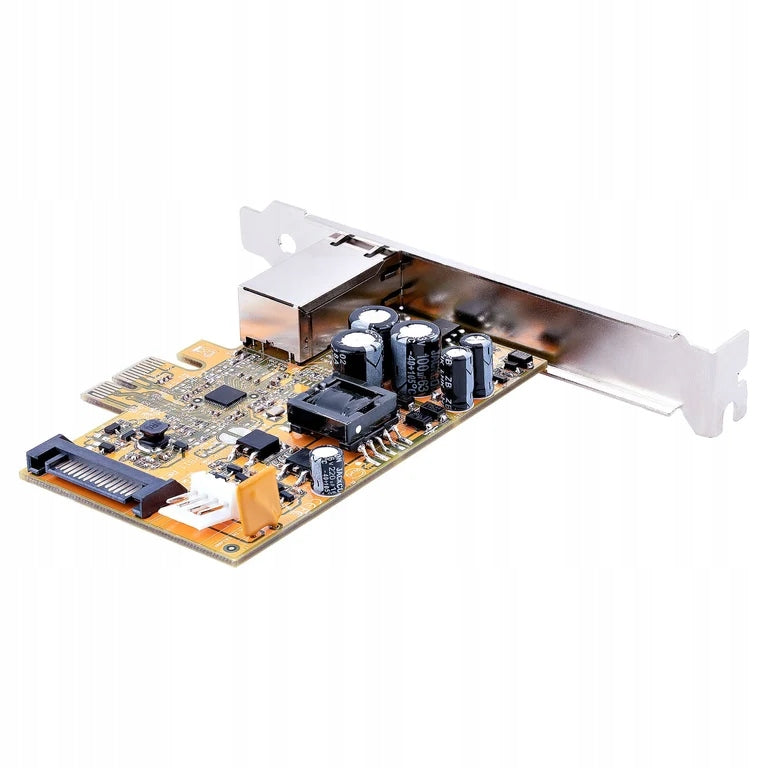

Tinklo plokštė StarTech ST1000PEXPSE, vidinė, Ethernet, 2500 Mbit/s

Trumpai apie prekę

Prekė: Tinklo plokštė StarTech ST1000PEXPSE, vidinė, Ethernet, 2500 Mbit/s. Kategorija: Tinklo plokštės.

• Gamintojas: StarTech
• Modelis: EAN-0065030893107

StarTech ST1000PEXPSE. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Ethernet. Maximum data transfer rate: 2500 Mbit/s

✏ The most important technical parameters:

• Power over Ethernet (PoE) - Number of Fast Ethernet (PoE) ports: 1
• Features - Purpose: PC/server
• Features - Communication standards: IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u
• Features - Internal: Yes
• Features - Interface: Ethernet
• Performance - LEDs: Yes
• Features - Full duplex: Yes
• Features - Ethernet Interface Type: 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
• Performance - Maximum operating range: 100 m
• Technical details - Compliance with the principles of sustainable development: Yes
• Technical details - Certificates of conformity: CE, RoHS
• Weight and sizes - Product width: 63 mm
• Weight and sizes - Product height: 15 mm
• Weight and sizes - Product depth: 95 mm
• Weight and sizes - Product weight: 220 g
• Package Contents - Quick Installation Guide: Yes
• Network - Wired LAN: Yes
• Network - Data transfer speed over Ethernet LAN: 10,100,1000,2500 Mbit/s
• Network - Maximum data transfer rate: 2500 Mbit/s
• Network - Compatible with Jumbo Frames: Yes
• Network - Jumbo Frames extension: 16000
• Network - Wake-On-LAN function: Yes
• Network - Automatic MDIX IEEE: Yes
• Network - VLAN tagging: Yes
• Ports and interfaces - Host interface: PCI Express
• Ports and interfaces - Connectivity technology: Wired
• Ports and interfaces - Number of Ethernet LAN ports (RJ-45): 1
• Ports and interfaces - PCI version: 2.1
• Ports and interfaces - PCI card size: Full height (low profile)
• Construction - Set of chips: Realtek RTL8125B
• Power - Operating voltage: 48 V
• Packaging data - Mounting brackets included: Yes
• Packaging data - Package width: 207 mm
• Packaging data - Package depth: 144 mm
• Packaging data - Package height: 38 mm
• Packaging data - Weight including packaging: 220 g
• Logistics data - Products in main box (external): 50 pcs.
• Logistics data - Width of bulk box (external): 530 mm
• Logistics data - Length of main box (external): 440 mm
• Logistics data - Height of reference box (external): 340 mm
• System requirements - Supported Linux operating systems: Yes
• Working conditions - Relative humidity range: 5 - 95%
• Working conditions - Temperature range (storage): -40 - 70 °C
• Working conditions - Temperature range (operation): 0 - 55 °C
• System requirements - Supported Windows operating systems: Windows 10,Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise,Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro,Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64,Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64,Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 HomeWindows 7 Home Premium x64, Windows 7 Professional,Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64,Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64,Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64,Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
• System requirements - Server operating systems supported: Windows Server 2008 R2, Windows Server 2012 R2, Windows Server 2019
• Classification - Manufacturer code: ST1000PEXPSE
• Classification - EAN: 0065030893107
• Classification - Product ID: 101778355
