Tinklo plokštė KALEA-INFORMATIQUE PCIe x4, 4x 2.5G RJ45, Intel I226 119

Trumpai apie prekę

Prekė: Tinklo plokštė KALEA-INFORMATIQUE PCIe x4, 4x 2.5G RJ45, Intel I226 119. Kategorija: Tinklo plokštės.

• Gamintojas: no brand
• Modelis: 11918150

Product Description

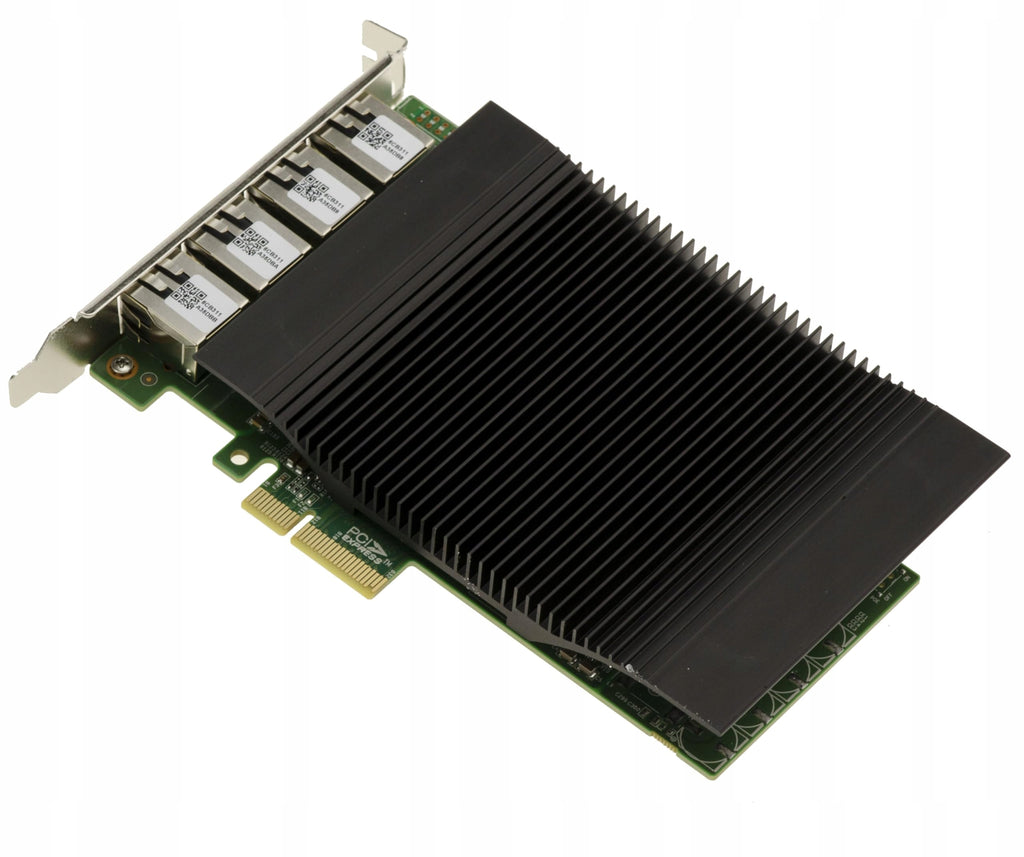

KALEA-INFORMATIQUE presents an industrial PCIe x4 network controller card with four 2.5 Gigabit Ethernet RJ45 ports, using high-end Intel I226 chipsets (SRKTU) and a PLX bridge. The device enables the expansion of desktop computers or servers with four high-performance 10/100/1000/2500 Mbps Ethernet ports, ensuring wide compatibility with RJ45 networks.

Main features of the product

• 4 ports 2.5 Gigabit Ethernet RJ45 – the best performance for computers and servers.
• Compatible with PCIe x4 (also supports x8 and x16 connectors), Gen 2.0 standard.
• Intel I226 chipset and PLX bridge – guarantee stability and high performance.
• Compatible with Windows (ME, 98SE, 2000, XP, Vista, 7, 8, 10, 11 32/64-bit), Windows Server (including Server 2025), Linux (Deepin, RHEL/CentOS, Ubuntu, SUSE), FreeBSD, Mikrotik, VMWare, Mac OS.
• Communication distance up to 50 m for 2.5G on CAT7, up to 100 m for 1G or less on CAT7.
• Jumbo frame 9,2K – more performance with large transfers.
• Built-in radiator – optimal heat dissipation system and industrial quality.
• Power consumption 5.88 W (standby mode), ESD protection ±8kV, overload ±2kV, support for PXE, MDI/MDI-X, NCSI, WoL, 1588 PTP, RSS 4 modes.
• LEDs indicating the status of connection and data transmission.
• Dimensions: 156,7 x 104,37 x 1,6 mm, weight: 300 grams.
• Compatible with a wide temperature range (0 to 55°C) and a maximum humidity of 90%.

Contents of the set

• Network card with cooling
• Link to download driver

Application

The card is recommended for industrial applications, advanced server configurations and professional desktop computers requiring high network bandwidth and reliability of operation, especially in environments with high network traffic.

Technical parameters

• Interface: PCI Express x4 (Gen 2.0), compatible with x8 and x16
• Speed: up to 2.5 Gbps per port (4 ports in total)
• Chipset: 4x Intel I226 (SRKTU)
• Cable Compatibility: CAT7/CAT6/CAT5E
• Maximum cable length: 50 m for 2.5G, 100 m for 1G or less
• Power Consumption: 5,88W in standby mode
• Dimensions: 156,7 x 104,37 x 1,6 mm
• Weight: 300 g

System compatibility

• Windows ME, 98SE, 2000, XP, Vista, 7, 8, 10, 11 (32/64-bit)
• Windows Server (including Server 2025)
• Linux: Deepin, RHEL/CentOS, Ubuntu, SUSE
• FreeBSD 13.2
• Mikrotik
• VMWare
• Mac OS
