Trumpai apie prekę
Prekė: Tinklo plokštė Intel PCIe x1, 1 Gb, SFP, serveriams. Kategorija: Tinklo plokštės.
- Gamintojas: no brand
- Modelis: SWC5908151100882
MATERIAL AND WORKMANSHIP

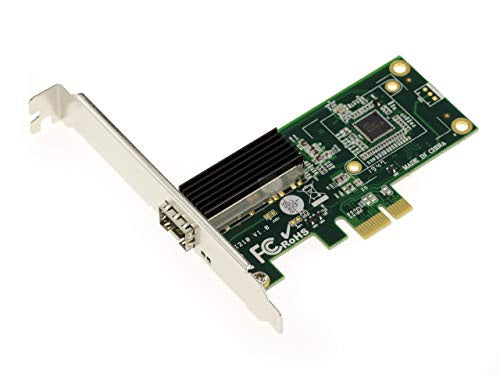

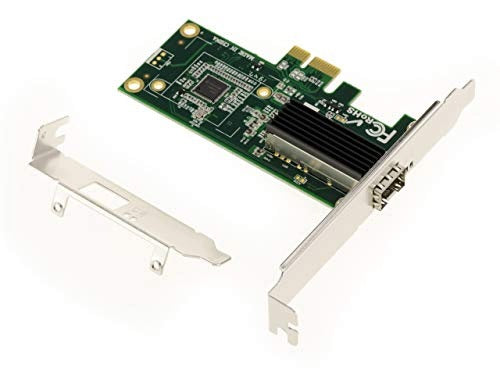

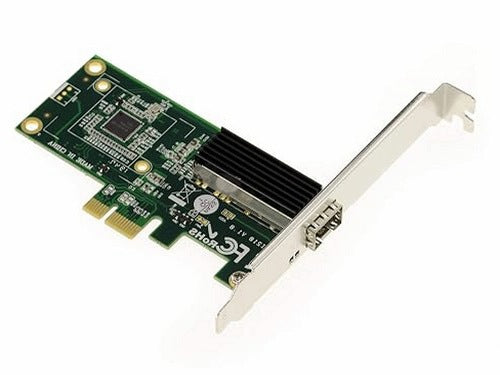

➡ The PCIe controller card is a professional network device designed for desktop computers and servers equipped with a PCIe 1x port. Supports Intel WGI210AS chipset for reliable performance in enterprise and server environments. The device is compatible with all gigabit networks, which guarantees universal use.
➡ The bandwidth of the card is 1000 Mb/s, and the connection is made via the SFP LC connector intended for optical fiber. PCIe 1x Gen 2.1 (2,5GT/s) technology ensures fast data transmission without bottlenecks. Advanced networking standards such as IEEE 802.3/10BASE-T, 100BASE-TX, 1000BASE-T and IEEE 802.3z are supported, allowing for flexible network configuration.
APPLICATIONS
➡️ This device supports Audio-Video Bridging (AVB) according to the IEEE 802.1Qav standard, perfect for high-quality multimedia streaming. Energy-Efficient Ethernet (EEE) along with DMA coalescing reduces power consumption. Features like VLAN filtering, Wake-on-LAN (WoL), and PXE remote boot are also supported.
➡️ The card is compatible with a wide range of operating systems, including Windows Server 2003/2008/2012, Windows 7/8/8.1/10/11, as well as Linux, FreeBSD, DOS, Novell, and UnixWare/OpenUnix 8. It offers additional capabilities such as iSCSI boot, IPMI pass-through via SMBus or NC-SI, and support for IEEE 1588 for time synchronization. This device is a reliable solution for demanding network environments.
Product specification
✅ Compatibility: Windows Server 2003/2008/R2/2012/R2, Win 7/8/8.1/10/11, DOS, Linux, FreeBSD, Novell, UnixWare/OpenUnix 8
✅ Chipset: Intel WGI210AS (I210AS)
✅ Bandwidth: 1000 Mb/s
✅ Connector Type: SFP LC (Optical Fiber)
✅ Slot: PCIe 1x Gen 2.1
✅ Purpose: Desktops and servers
✅ Special Features: EEE (Energy Efficient Ethernet), IEEE 802.1Qav AVB, DMA coalescence, IPMI, iSCSI boot, WoL, PXE, VLAN filtering, IEEE 1588
✅ Certificates: FCC, CE, RoHS
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer | no brand |
| Parametry | Interface | PCI-E |
| Parametry | Card type | internal |
| Parametry | Port type | Ethernet (RJ-45) |
| Parametry | Two-way transmission | none |
| Parametry | EAN (GTIN) | 5908151100882 |
| Parametry | Manufacturer code | SWC5908151100882 |
| Parametry | Certificates of conformity | CE |
