Tinklo plokštė Digitus

Trumpai apie prekę

Prekė: Tinklo plokštė Digitus. Kategorija: Tinklo plokštės.

• Gamintojas: Digitus
• Modelis: EAN-4016032488026

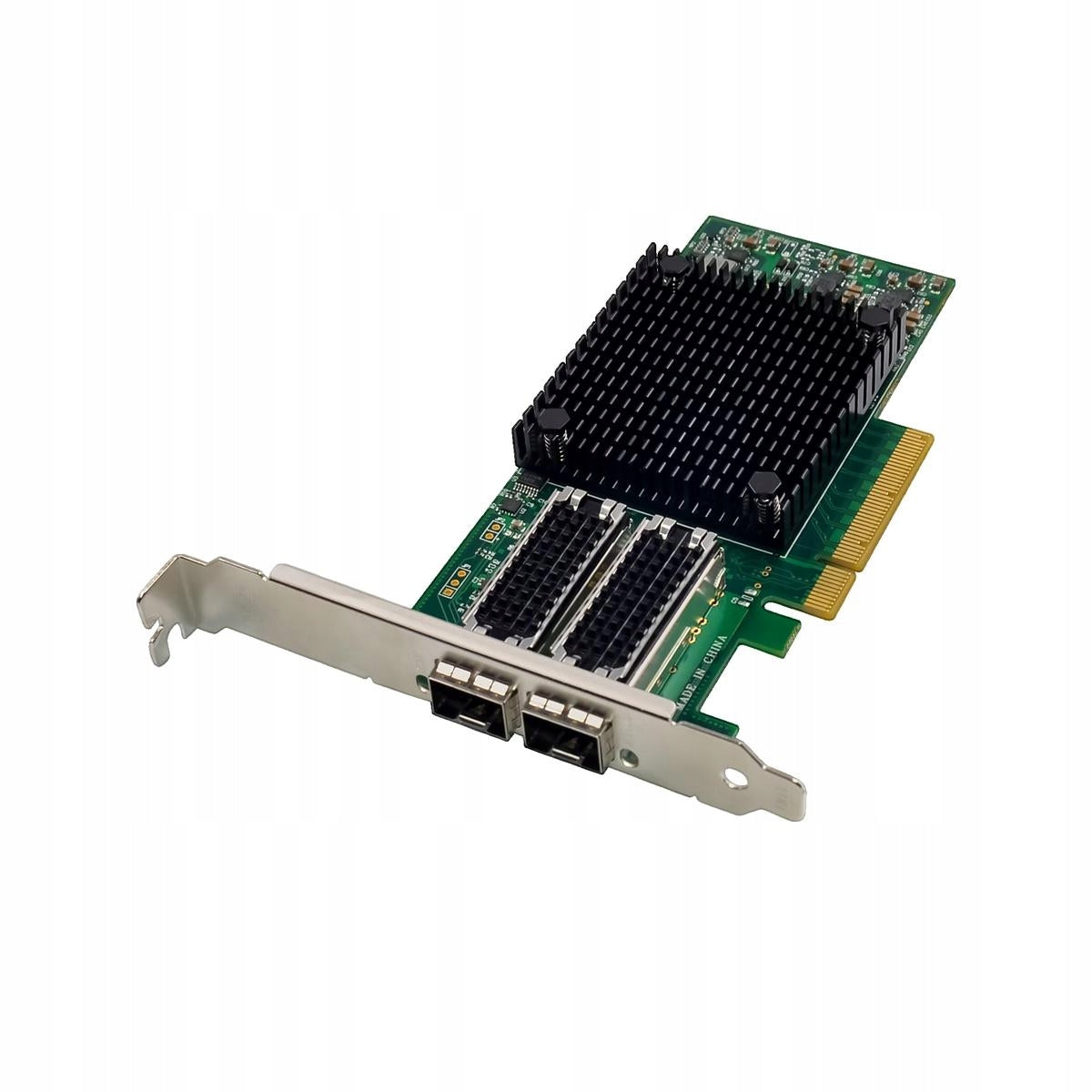

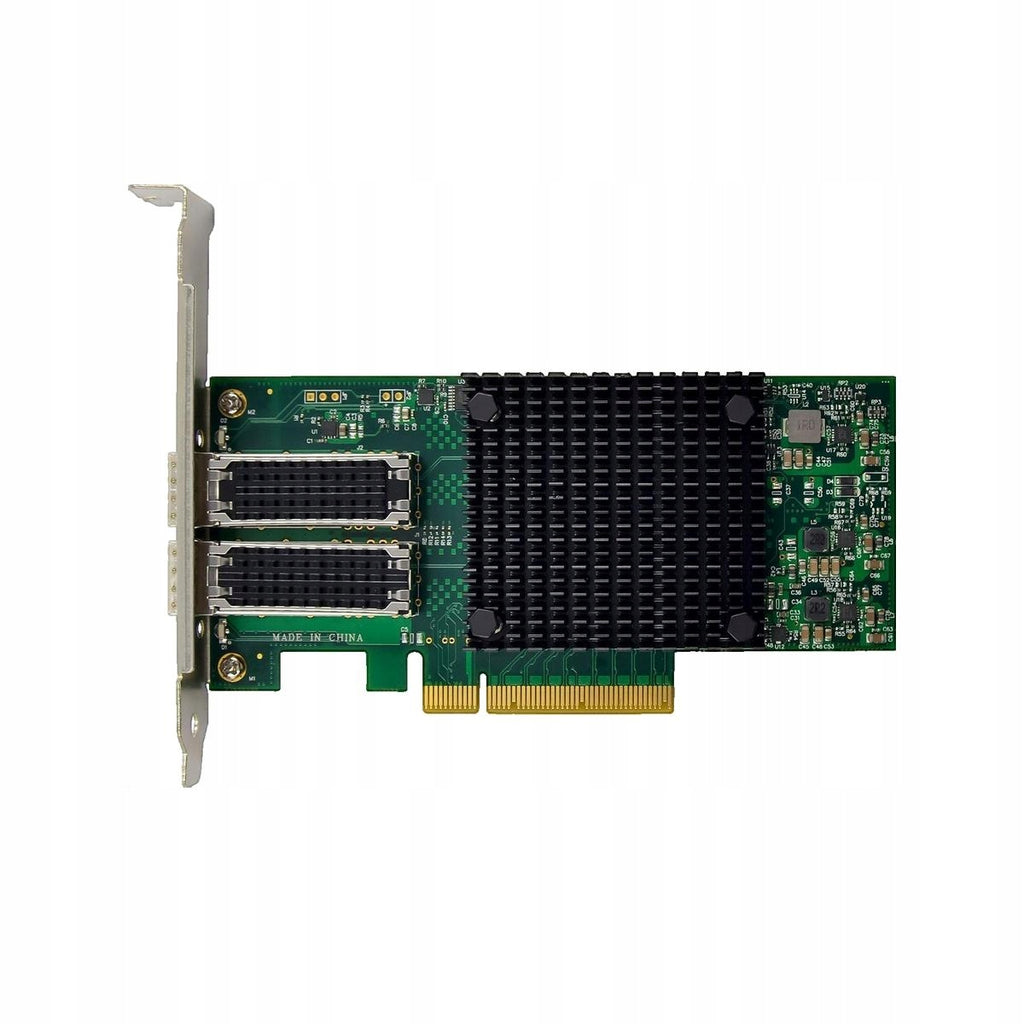

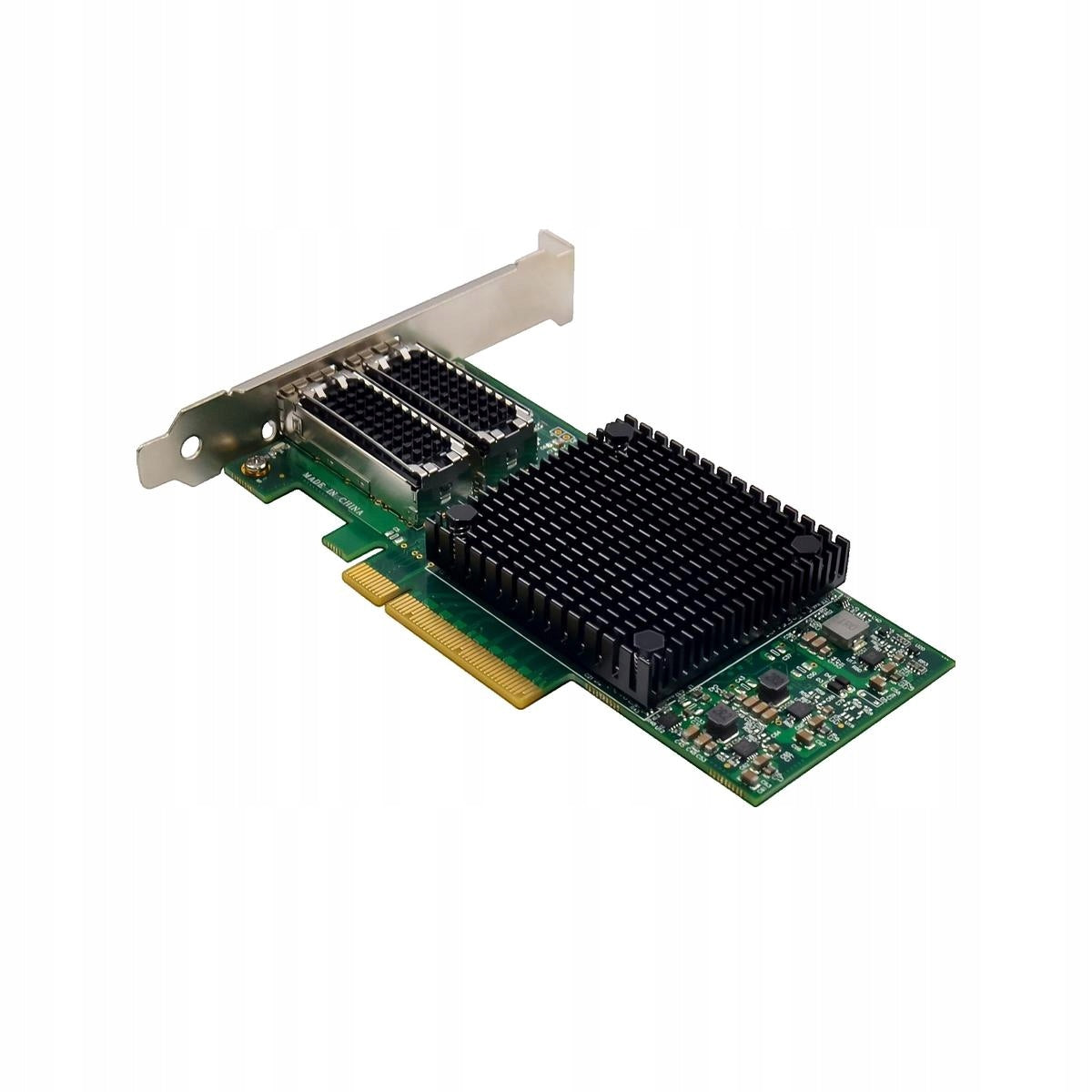

Digitus 2-port 25 Gigabit Ethernet network card, SFP28, PCI Express, Mellanox chipset. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Fiber. Maximum data transfer rate: 25000 Mbit/s. Colour of product: Black, Green

The DN-10180 network card provides a reliable and efficient network connection for your server or workstation. This card is fully compliant with PCI Express Revision 3.0, 1.1, and 2.0 specifications and supports link speeds of 2.5, 5.0, or 8.0 GT/s at x8 bandwidth. The DN-10180 solution offers auto-negotiation, allowing it to operate at x8, x4, x2, or x1 speeds, ensuring compatibility with a wide range of devices.

- Supports dual 25G, 10G, or 1Gb/s SFP+ ports

- Compliant with PCI Express Specification Revision 3.0, 1.1 and 2.0, 2.5, 5.0 or 8.0GT/s Link Rate x8

- Supports IEEE802.3ad, IEEE802.1ax, IEEE802.1Q, IEEE802.1P, IEEE802.1Qaz, IEEE802.1Qbb, IEEE802.1Qbg, IEEE1588V2 standards

- Supports Jumbo Frames up to 9.6 KB

- Independent NC-SI SM Bus interface

The DN-10180 network card provides a reliable and efficient network connection for your server or workstation. This card is fully compliant with PCI Express Revision 3.0, 1.1, and 2.0 specifications and supports link speeds of 2.5, 5.0, or 8.0 GT/s at x8 bandwidth. The DN-10180 features auto-negotiation, allowing it to operate at x8, x4, x2, or x1 speeds, making it a compatible solution for a wide range of devices. The solution is also compatible with MSI/MSI-X mechanisms for efficient interrupt handling and dual-port 25G, 10G, or 1Gb/s SFP+ connectivity for flexible network configuration. This network card supports various industry standards, including IEEE802.3by, 25G with all FEC modes, IEEE802.3az Energy Efficient Ethernet, IEEE802.3ap-based auto-negotiation and KR startup, as well as IEEE802.3ad, IEEE802.1ax, IEEE802.1Q, IEEE802.1P, IEEE802.1Qaz, IEEE802.1Qbb, IEEE802.1Qbg, IEEE1588V2. The DN-10180 supports Jumbo Frames up to 9.6 KB, an independent NC-SI SMBus interface, independent Standby and Wake on LAN signals, reliable hardware-based transport, Collective Operation Offloads, and PeerDirect RDMA technology (also known as GPUDirect Communication Acceleration). Other key features of the DN-10180 include 64/66 encoding, Extended Reliable Connected Transport, Dynamically Connected Transport, RDMA over Converged Ethernet (RoCE), TCP/UDP/IP Stateless Offload, LSO.LRO. With support for Checksum Offload and Hardware Offload of NVGRE and VXLAN overlay network encapsulation and decapsulation. This network interface card also supports SR-IOV, Multi-Function, Enhanced QoS, provides VMware support, and up to 256 virtual functions and 8 physical functions per port. The solution offers guaranteed QoS for virtual machines and is compatible with OpenMPI, IBM PE, OSU MPI, and Intel MPI protocols. The DN-10180 device enables remote booting via Ethernet, iSCSI, PXE, and UEFI, and is compatible with various systems, including FreeBSD, Linux 5.x and newer, VMware 5.5/6.0/6.5/6.7, Windows Server 2008/2012/2016/2019, and Win7/Win8/Win8.1/Win10 32 or 64-bit versions. In summary, the DN-10180 is a high-performance network card that provides a reliable and efficient network connection for your server or workstation.

Specifications
