Tinklo plokštė Delock Mini PCIe, 1x RJ45, gigabitinė, žemo profilio

Trumpai apie prekę

Prekė: Tinklo plokštė Delock Mini PCIe, 1x RJ45, gigabitinė, žemo profilio. Kategorija: Tinklo plokštės.

• Gamintojas: Tragant
• Modelis: 95265

Purpose and function

Internal Mini PCIe network card for PCs, designed to connect a wired Gigabit Ethernet network through a single RJ45 slot. It allows you to establish a network connection with a bandwidth of up to 1000 Mbit / s and integration with systems using the Mini PCIe slot.

Network performance

The card uses the Realtek RTL8111H controller, which provides support for data transfer at the Gigabit Ethernet level. Layer 2 mechanisms such as IEEE 802.1Q (VLAN) and IEEE 802.1p (traffic prioritization) are supported, as well as IEEE 802.3x compliant flow control, which improves transmission stability under heavy load.

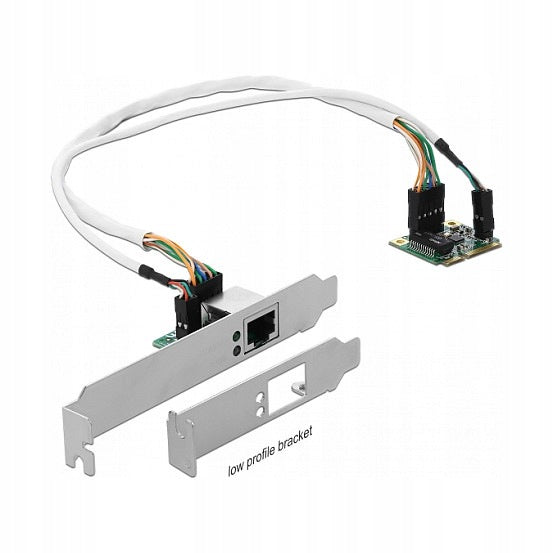

Design and connector

The module is in the form of half-size (Low Profile) mounted inside the computer in the Mini PCI Express slot. The manufacturer indicates the PCI 1.1 compatibility version, and the physical network port is one Ethernet connector (RJ-45). The card is designed for installation in devices with an available Mini PCIe slot.

Standards and Compliance

The host interface is Mini PCI Express, and the connection type is Gigabit Ethernet compliant with wired network standards. The maximum data transfer rate is 1000 Mbit/s, making the card suitable for typical network applications in PCs requiring a high-bandwidth wired connection.

Specification

• Purpose: PC
• Host Interface: Mini PCI Express (Mini PCIe)
• Maximum data transfer rate: 1000 Mbit/s
• LAN Controller: Realtek RTL8111H
• PCI version: 1.1
• Communication standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x
• Country of Origin: China
