Tinklo lizdas RJ45 Cat.8.1 STP be įrankių, Keystone, LogiLink

Trumpai apie prekę

Prekė: Tinklo lizdas RJ45 Cat.8.1 STP be įrankių, Keystone, LogiLink. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Logilink
• Modelis: KJ58C08

Catalog No: 48910

The supplier of the item is a reputable German company LogiLink. The data sheet, hyperlink to the manufacturer’s website and detailed specification are available at: www.stratos.pl/strony/48910.htm

In 2016, a new wiring standard was developed - category 8. The ANSI/TIA-568-C.2-1 document specifies two cabling variants to support 25 Gbps (Class I - Cat.8.1, 2000MHz band) and 40 Gbps (Class II - Cat8.2, 2000MHz band). Category 8.1 uses RJ45 connectors and is compatible with categories 6/6A while category 8.2 uses other connectors and is not compatible with categories 6/6A.

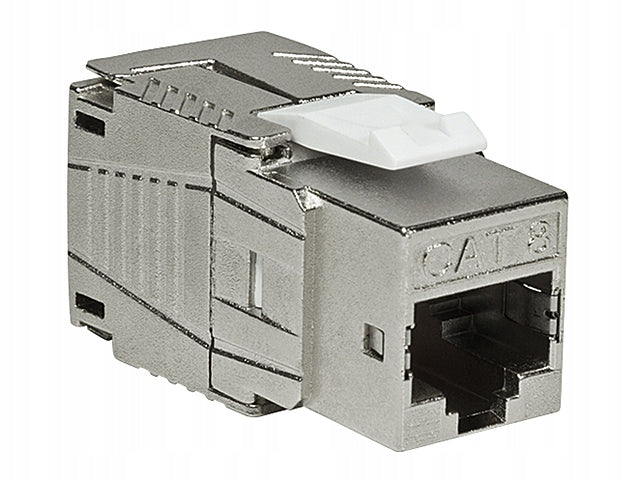

The offered shielded RJ45 connector, category 8.1 (class I), meets the ANSI/TIA-568-C.2-1 standard, enables installation on a shielded twisted pair S/FTP, U/FTP, SF/UTP with a core thickness (stranded or wire) in range of AWG 22-24 and ensures compliance with the parameters of both Gigabit Ethernet, 10 Gigabit Ethernet (class EA, category 6A) and 25 Gigabit Ethernet (class I, category 8.1). Color coding carried out according to the EIA/TIA 568AiB standard, i.e. both currently used.

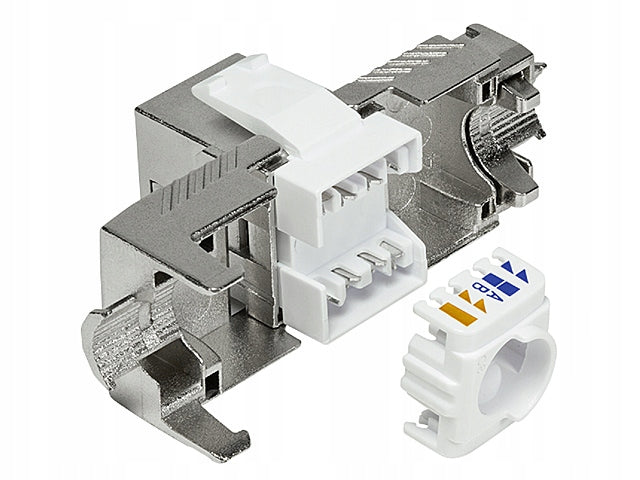

The special design means that connecting the cable can be carried out tool-free or tool-like. Knife contacts are made according to the LSA / KRONE standard, so it is possible to press the veins using the tool of this standard. Tool-free connection of the cable consists in the proper arrangement of twisted pair wires in the pressure cap (colored icons indicate the correct location of the conductors for the 568A or 568B standard), trimming of protruding ends, placing the overlay on the contact strips and folding movable "wings" - pressing the conductors into the appropriate contacts will be realized after snapping the "wings".

The socket has hooks of the KEYSTONE standard so that it is possible to easily (through a latch) attach in KEYSTONE handles. Such handles are used in ICT equipment. There is a whole range of cans, frames, adapters and RACK panels with KEYSTONE handles designed to attach elements with KEYSTONE latches.

Examples of solutions for cans, frames, adapters and panels with KEYSTONE connectors are presented on the following examples:

The cans, frames, panels, adapters and KEYSTONE connector modules offered by us can be found in our offer by entering KEYSTONE in the 'search in user objects' field.

• Connector: RJ45 shielded socket (STP)
• Category: 8.1, Class I, ISO/IEC TR11801-9901-2014, ANSI/TIA 568-C.2-1, GHMT Channel Link certified
• Bandwidth: 2000MHz
• Material: housing - zinc alloy, RJ45 connector contacts - gold plated nickel plated phosphor bronze, terminal contacts - tinned phosphor bronze
• Twisted pair conductor type: wire/link AWG22~24 (Ø conductors 0.5~0.7mm, Ø conductors in insulation 1.0~1.5mm)
• Contact color coding: EIA/TIA 568AiB
• Diameter of the cable: 5.5~9.0mm
• Socket dimensions (width/height/depth): 16.5/20.3/41.5mm
• Standard Keystone 19.35mm x 14.8mm
• Weight: approx. 25g

Specifications and detailed parameters are available at www.stratos.pl/specyfikacje/48910.pdf

The product we offer is a new, unused, factory packed product. The offered item, like all items sold by us, is a product currently available in our warehouse, which allows immediate shipment.
