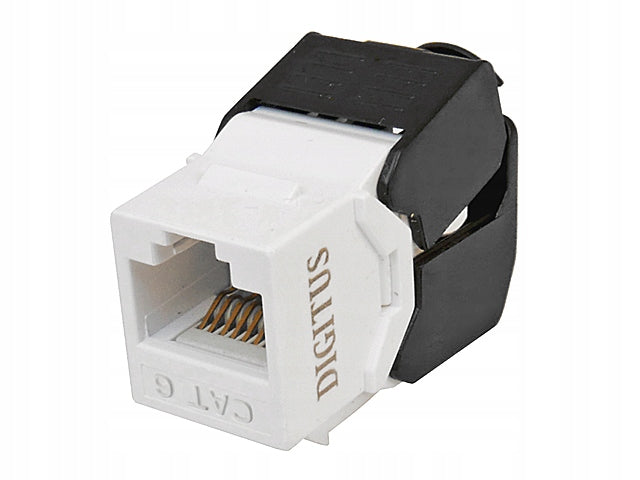

Tinklo lizdas RJ45/8P8C, kat.6, UTP, KEYSTONE, be įrankių, DIGITUS

Trumpai apie prekę

Prekė: Tinklo lizdas RJ45/8P8C, kat.6, UTP, KEYSTONE, be įrankių, DIGITUS. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Digitus
• Modelis: DN-93603

Catalog No.: 48911

The supplier of the item is the renowned German company DIGITUS. The data sheet, hyperlink to the manufacturer’s website and detailed specification are available at: www.stratos.pl/strony/48911.htm

The offered unshielded RJ45 cat.6 connector (class E) meets EN 50173 and ISO/IEC 11801 standards, enables installation on unshielded UTP twisted pair cable with a thickness of conductors (link or wire) in the range of AWG 22-26 and ensures compliance with Gigabit Ethernet parameters (class E, category 6A). Color coding carried out according to the EIA/TIA 568AiB standard, i.e. both currently used.

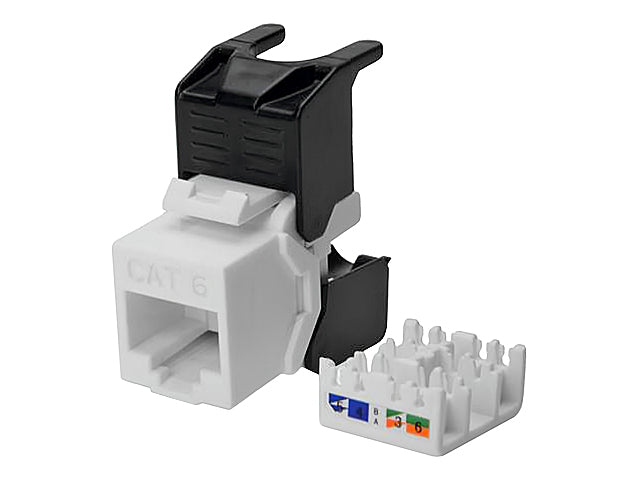

The special design means that connecting the cable can be carried out tool-free or tool-like. Knife contacts are made according to the LSA / KRONE standard, so it is possible to press the veins using the tool of this standard. Tool-free connection of the cable consists in the proper arrangement of twisted pair wires in the pressure cap (colored icons indicate the correct location of the wires for the standard 568A or 568B), trimming of protruding ends, placing the lid on the contact strips and folding movable "wings" - pressing the wires into the appropriate contacts will be realized after snapping the "wings".

The offered socket has a width of only 16mm, which allows for installation in closely located KEYSTONE structural holes (e.g. in 24-port panels for 19" installation cabinets. The dimensions of the socket are presented below:

The socket has hooks of the KEYSTONE standard so that it is possible to easily (through a latch) attach in KEYSTONE handles. Such handles are used in ICT equipment. There is a whole range of cans, frames, adapters and RACK panels with KEYSTONE handles designed to attach elements with KEYSTONE latches.

Examples of solutions for cans, frames, adapters and panels with KEYSTONE connectors are presented on the following examples:

The cans, frames, panels, adapters and KEYSTONE connector modules offered by us can be found in our offer by entering KEYSTONE in the 'search in user objects' field.

• Connector: RJ45 unshielded socket (UTP)
• Category: 6, Class E, 1GBase-T, ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C
• Bandwidth: 250MHz
• Contact Type: LSA/KRONE
• Contact color coding: EIA/TIA 568AiB
• Material: ABS housing UL 94V-0, gold plated contacts 0.5μm on a phosphor bronze backing
• Socket dimensions (width/height/depth): 16/20/35mm
• Standard Keystone 19.35mm x 14.8mm
• Weight: approx. 6g

The product we offer is a new, unused, factory packed product. The offered item, like all items sold by us, is a product currently available in our warehouse, which allows immediate shipment.
