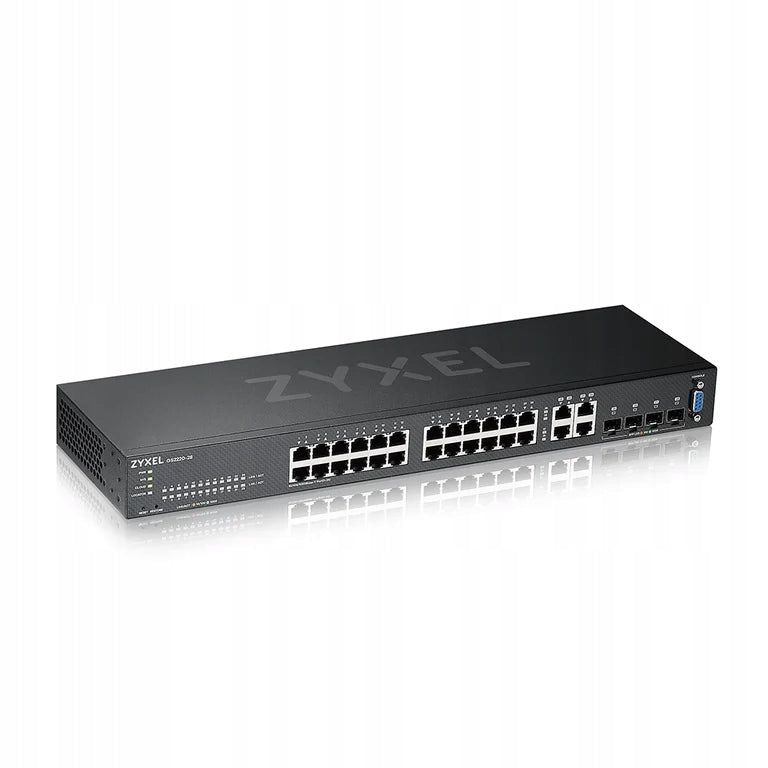

Tinklo komutatorius Zyxel GS2220-28-EU0101F, valdomas, L2, gigabitinis

Trumpai apie prekę

Prekė: Tinklo komutatorius Zyxel GS2220-28-EU0101F, valdomas, L2, gigabitinis. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Zyxel
• Modelis: EAN-0760559126759

Zyxel GS2220-28-EU0101F. Switch Type: Managed, Switch Layer: L2. Basic RJ-45 Ethernet Switching Ports Type: Gigabit Ethernet (10/100/1000), Basic RJ-45 Switching Number of Ethernet Ports: 24. Address table size: 16000 inputs, Routing/switching throughput: 56 Gbit/s. Communication standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.1Q, IEEE ... Possibilities of mounting in the frame

✏️ Key Technical Specifications:

• Construction - Rack Mounting Capability: Yes
• Management Features - Switch Type: Managed
• Management Features - Switch Layer: L2
• Management Features - Quality of Service (QoS) Support: Yes
• Management Features - Web-based Management: Yes
• Management Features - Command Line Interface (CLI) Configuration: Yes
• Data Transfer - Routing/Switching Capacity: 56 Gbit/s
• Data Transfer - Forwarding Rate: 42 Mpps
• Data Transfer - MAC Address Table: 16000 entries
• Data Transfer - Packet Buffer Memory: 1.5 MB
• Multicast Features - Multicast Support: Yes
• Power over Ethernet (PoE) - PoE Support: No
• Network - Communication Standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
• Network - 10G Support: No
• Network - Copper Ethernet Cabling Technology: 10BASE-TX, 1000BASE-T
• Network - Flow Control Support: Yes
• Network - Link Aggregation: Yes
• Network - Traffic Control: Yes
• Network - Spanning Tree Protocol: Yes
• Network - VLAN Support: Yes
• Network - Virtual LAN Features: Port-based VLAN, Private VLAN, Protocol-based VLAN, Voice VLAN
• Ports & Interfaces - Basic Switching RJ-45 Ethernet Ports Quantity: 24
• Ports & Interfaces - Basic Switching Ethernet RJ-45 Port Type: Gigabit Ethernet (10/100/1000)
• Ports & Interfaces - SFP Combo Port Quantity: 4
• Features - Product Color: Black
• Features - Device Software Update: Yes
• Performance - Internal Memory: 256 MB
• Performance - Flash Memory: 32 MB
• Performance - Noise Level: 0 dB
• Performance - Fanless: Yes
• Performance - MTBF (Mean Time Between Failures): 989157 h
• Dimensions & Weight - Product Width: 441 mm
• Dimensions & Weight - Product Depth: 131 mm
• Dimensions & Weight - Product Height: 44 mm
• Dimensions & Weight - Product Weight: 2.2 kg
• Dimensions & Weight - Package Width: 558 mm
• Dimensions & Weight - Package Depth: 214 mm
• Dimensions & Weight - Package Height: 79 mm
• Dimensions & Weight - Package Weight: 2.91 kg
• Package Contents - Cables: AC
• Power - Maximum Power Consumption: 22.5 W
• Power - AC Input Voltage: 100 - 240 V
• Power - AC Input Frequency: 50 - 60 Hz
• Protection - System Event Log: Yes
• Protection - DHCP Features: DHCP client, DHCP relay, DHCP snooping, DHCPv6 client, DHCPv6 relay
• Protection - Access Control List (ACL): Yes
• Protection - IGMP Snooping: Yes
• Protection - Encryption/Security: SNMP, SNMPv2, SNMPv3, SSH-2, SSL/TLS
• Protection - MAC Address Filtering: Yes
• Protection - Authentication Method: IEEE 802.1x, RADIUS
• Protection - Authentication: Guest VLAN, MAC-based authentication
• Operating Conditions - Heat Dissipation: 76.725 BTU/h
• Operating Conditions - Operating Temperature Range: 0 - 50 °C
• Operating Conditions - Storage Temperature Range: -40 - 70 °C
• Operating Conditions - Operating Relative Humidity: 10 - 95%
• Operating Conditions - Non-operating Relative Humidity: 10 - 95%
• Certifications - Certificates: LVD, BSMI FCC 15 A, CE EMC A, BSMI ENC RoHS A
• Logistics Data - Harmonized System (HS) Code: 85176990
• Classification - Manufacturer Code: GS2220-28-EU0101F
• Classification - EAN: 760559126759
• Classification - Product ID: 80156129
