Tinklo komutatorius SG105PE, 5x GbE, 4x PoE+

Trumpai apie prekę

Prekė: Tinklo komutatorius SG105PE, 5x GbE, 4x PoE+. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: TP-Link
• Modelis: 417169473

SG105PE Switch Smart 5xGb (4xPoE+)

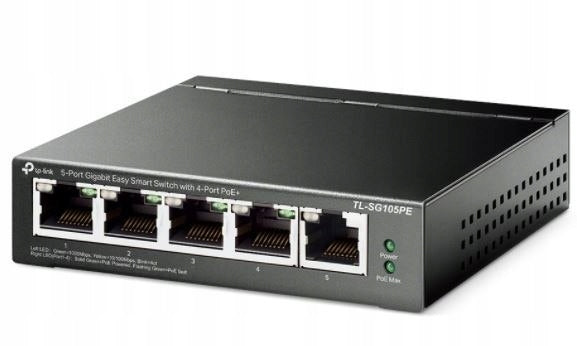

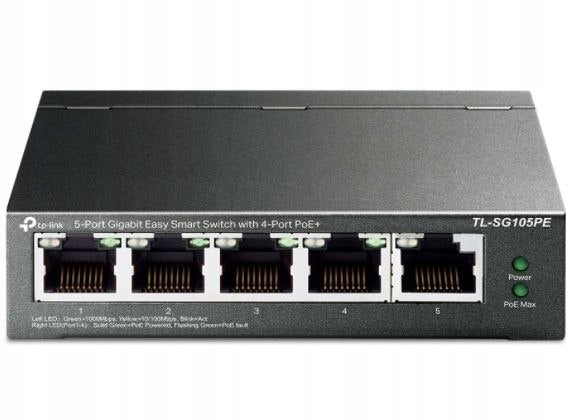

TL-SG105PE. Easy Smart Switch, 5 Gigabit Ports, including 4 PoE+ Ports

• 5 RJ45 ports 10/100/1000 Mbps
• 4 PoE+ ports supporting 802.3af/at standards, power and data transfer via a single cable
• Up to 30W of power on each PoE port
• Up to 65W total PoE power
• Network monitoring, traffic prioritization, VLAN, and PoE Auto Recovery features
• Easy Plug and Play installation
• Management via web configuration page and Easy Smart Configuration Utility

Wide range of possible applications The TL-SG105PE switch is fully compatible with PoE-powered devices such as IP cameras, access points and IP phones. It also works with wired devices without PoE support - computers, printers and IPTV.

A switch designed for many applications 4 PoE+ ports with a total power of 65 W Compliance with 802.3af/at PoE+ standards means that up to 30 W of power is available on each PoE port. Up to 65 W of total PoE power* of the switch equipped with 4 gigabit PoE+ ports is an ideal solution, m.in . for monitoring systems, offices, dormitories and small businesses. The device is fully compatible with IP cameras, access points, IP phones, computers, printers, etc.

Simplified Management The TL-SG105PE provides users with the ability to monitor their network and control changes in network traffic. Using the configuration page or management tool, the user has access to many useful features, including network monitoring, traffic prioritization, and improved QoS.

Simplified Management The TL-SG105PE provides users with the ability to monitor their network and control changes in network traffic. Using the configuration page or management tool, the user has access to many useful features, including network monitoring, traffic prioritization, and improved QoS.

Durable metal housing The sensitive components of the switch are protected by a durable housing made of high-quality metal. Such solid protection guarantees long-term and stable operation of the device. The TL-SG105PE is a reliable product, which is confirmed by numerous tests based on rigorous standards.

Product Information Switch Class SMART Application Home and Small Office (up to 16 ports) Switching Layer L2 Network Architecture GigabitEthernet Number of Ports 10/100/1000 Mbps 5 Number of Ports QSFP+ None Forwarding Mode Store-and-forward Forwarding Rate 7.44 Mpps Packet Buffer 1.5 MB MAC Address Table Size 2000 Jumbo Frame Support Yes Jumbo Frame Size 16 KB Stackability No Number of VLAN Groups 32 VLAN

• Supports up to 32 VLANs simultaneously (out of 4,000) VLAN IDs)
• MTU/Port/Tag VLAN

Supported protocols and standards

• IEEE 802.3i,
• IEEE 802.3u,
• IEEE 802.3ab,
• IEEE 802.3af,
• IEEE 802.3x,
• IEEE 802.1q,
• IEEE 802.1p,
• IEEE 802.3at

QoS

• Port-based prioritization/802.1p queuing/DSCP support
• Support for 4 priority queues
• Transmission rate limiting function for each port
• Storm Control function

L2 functions

• IGMP Snooping V1/V2/V3
• Static Link Aggregation
• Port mirroring
• Cable condition diagnostics
• Loop prevention
• PoE Auto Recovery
• Extend Mode

Other functions

Auto-negotiation/AUTO-MDI/MDIX

Housing type

Tower Slim

Fan

NO

Charger

External

Accessories included

• TL-SG105PE
• Charger
• Installation instructions
• Rubber feet

Power supply

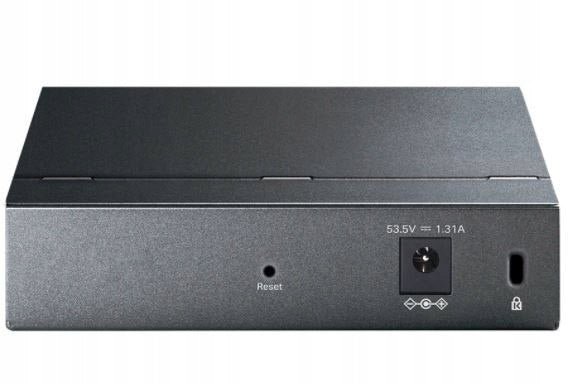

External power supply (output: 53.5 V DC/1.31 A)

Dimensions

99.8 × 98 × 25 mm

Other parameters

Certificates: FCC, CE, RoHS
