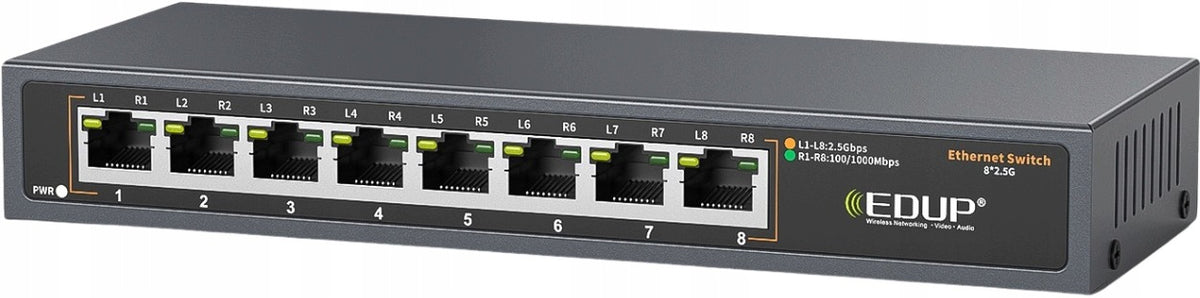

Tinklo komutatorius 8 portų LAN Ethernet RJ45 2.5Gb/s

Trumpai apie prekę

Prekė: Tinklo komutatorius 8 portų LAN Ethernet RJ45 2.5Gb/s. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: EDUP
• Modelis: 577288469

EDUP EP-SG7820

✅ Modern, compact network switch 10/100/1000/2500 Mb/s is the ideal solution for home and business users who need a stable, fast and reliable LAN connection.

✅ The device is equipped with 8 RJ45 ports with a bandwidth of up to 2.5Gb/s each, thanks to which they offer up to 2,5 times faster speed than standard, which ensures lightning-fast data transfer and full use of the capabilities of modern devices.

✅ Compliance with IEEE 802.3, 802.3u, 802.3ab, 802.3x and 802.3bz standards guarantees energy-efficient operation and support for the most common network technologies.

✅ This is a great solution for devices that are missing a network adapter with an RJ45 connector.

✅ The device works on the principle of Plug & Play. No need to install additional software, works automatically when connected.

➡ Product Features:

• 8 RJ45 ports with 10/100/1000/2500 Mbps bandwidth
• Compliance with IEEE 802.3/u/ab/bz/x standards
• Flow control IEEE 802.3x in full duplex and backpressure mechanism in half duplex
• Support for MAC address table up to 16 000 entries with automatic learning
• Switching without locks at full speed
• Plug & Play (no drivers or additional software required)
• Silent work
• Efficient heat dissipation system
• Can be mounted on a desk or on a wall (has mounting holes)
• Compact and modern housing
• Wide range of applications

➡ Connection method

Step 1: Connect the power

• Connect the power supply to the switch and to the power source (socket).
• Switch will start working automatically (no configuration required)

Step 2: Connect devices

• Connect the switch to the router (use an Ethernet cable and connect it from the router's LAN port to one of the switch ports)
• Then connect other devices to other switch ports e.g. computer, IP camera, WiFi 6 access point, NAS file server, other network devices.

➡ Specification:

• Manufacturer: Edup
• Model: EP-SG7820
• Type: RJ45 splitter
• Number of ports: 8
• Interface: RJ45 (10/100/1000/2500Mbps)
• Standard: IEEE 802.3/EEE 802.3u/802.3ab/802.3bz/802.3x
• Transmission range: Up to 100m
• Cable requirements: Cat5e, Cat6
• Power Supply: DC12V/1A
• Dimensions: 198 x 74x 29 (mm)

➡ Package contains:

• 1x RJ45 network splitter EP-SG7820

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer	EDUP
Parametry	Number of ports	8
Parametry	EAN (GTIN)	5908066711395
Parametry	Manufacturer code	577288469
