Tinklo kabelių testeris ir porų ieškiklis UNI-T UT682D

Trumpai apie prekę

Prekė: Tinklo kabelių testeris ir porų ieškiklis UNI-T UT682D. Kategorija: Detektoriai.

• Gamintojas: UNI-T
• Modelis: UT682D

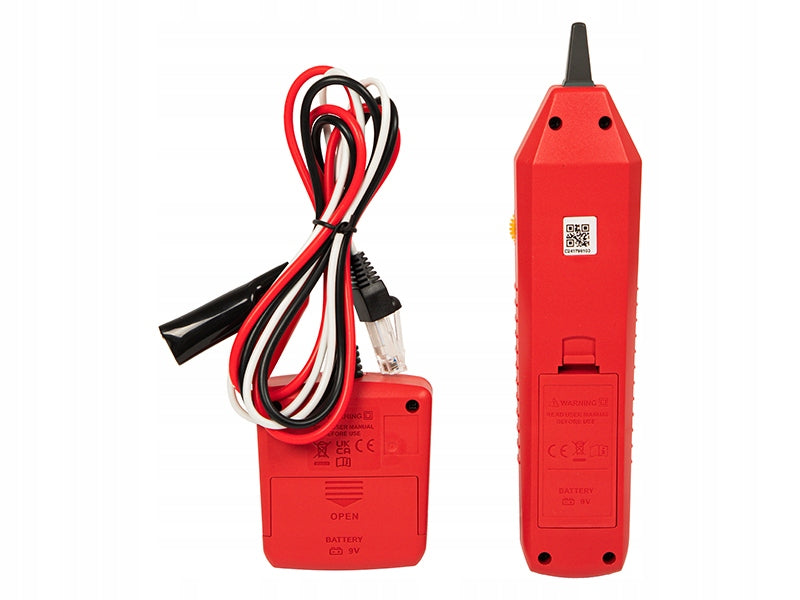

The UT682 cable tracker consists of a transmitter and receiver, it is able to track Ethernet/telephone/power cables without opening their insulation. UT682 can troubleshoot Ethernet cables and is the recommended tool for debugging communication cables and audio/video cables.

• Tracking telephone/ethernet/power cables
• DC level test
• Ability to check voltage and polarity levels
• Verification of Ethernet cable wiring order
• Quick open/short circuit test
• Volume control
• Headphone connector for working in noisy environments
• Dual cycle measurement mode
• Low battery indicator

Cable Tracking Features:

• Cable Types: Phone Line / Twisted Pair / Electrical Wire
• Phone line tracking distance: ≥3000m
• Polarity marking for telephone lines (DCV function, range: ±(5V~52V)): Yes
• Distinguishing between telephone lines and LAN cables (Jack's Distinction): Yes
• Transmitter output voltage: 8V DC with new battery
• Maximum receiver standby current (~10mA): Yes
• Maximum receiver operating current (40mA (alternating current, effective value): Yes
• Protection of transmitter input voltage: 60V DC
• Working temperature: 0~40℃
• Storage temperature: -10~50℃
• Transmitter power supply: 9V
• Receiver power supply: 9V
• Working humidity: 20~75%RH
• Storage humidity: 10~90%RH
• Dimensions: Transmitter 74 mm x 68 mm x 28 mm, receiver 208 mm x 47 mm x 33 mm
• Weight: Transmitter 150g, receiver 130g

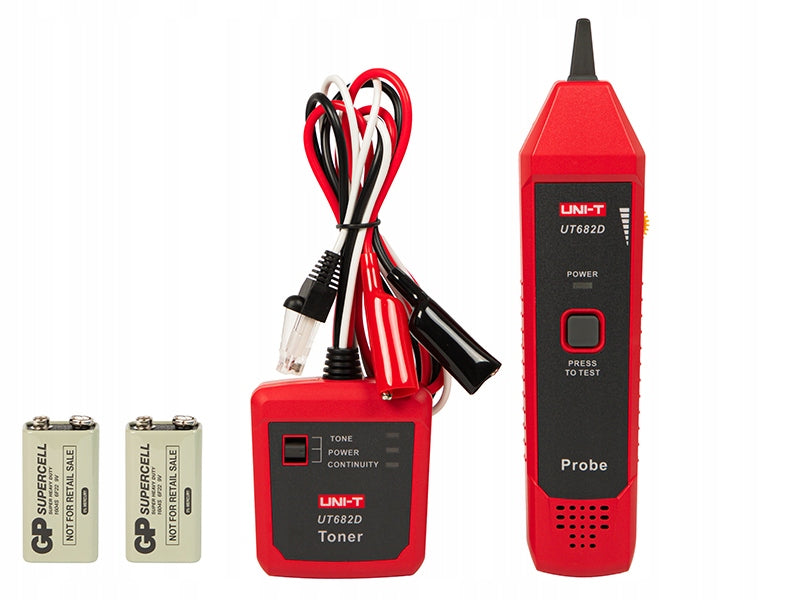

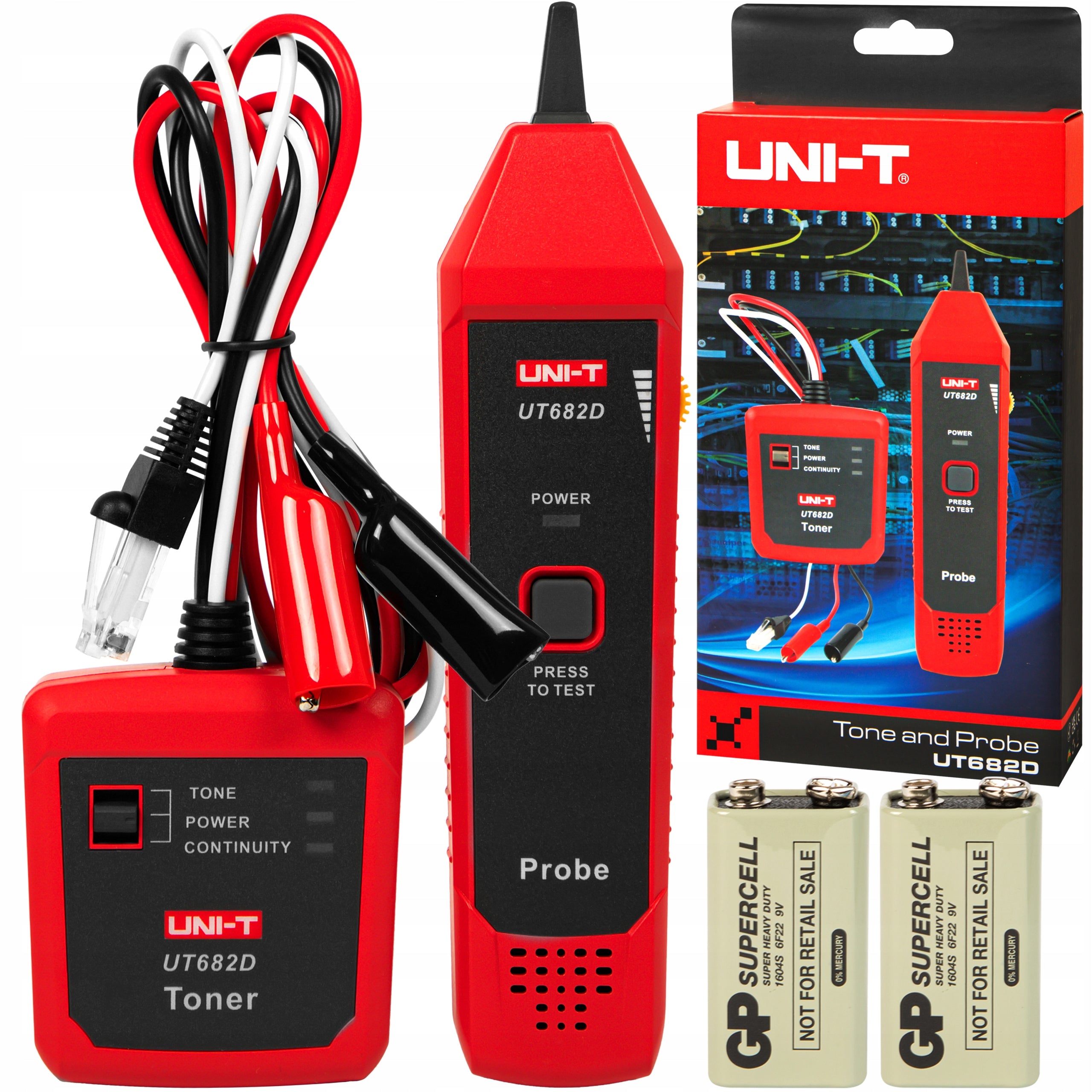

• Meter (receiver) UT682D
• Meter (transmitter) UT682D
• User manual
• 9V x2 battery
