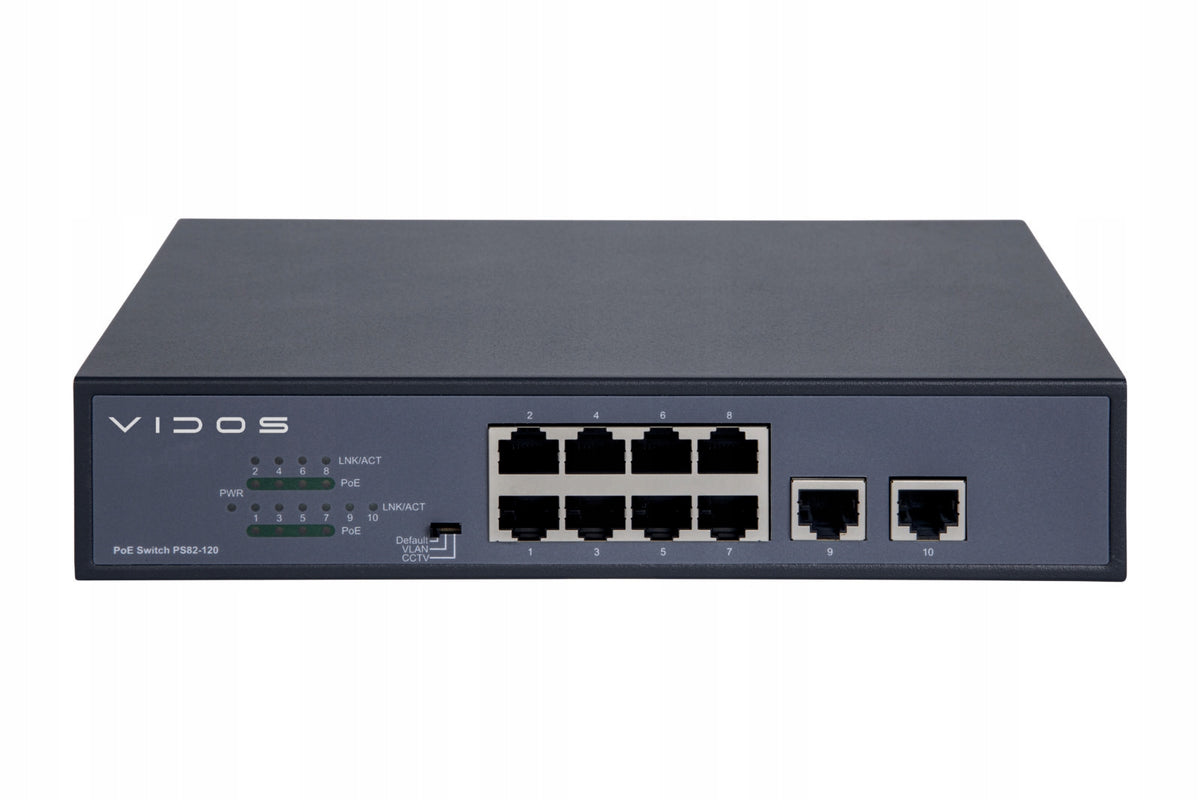

Tinklo jungiklis Vidos One PS82-120, 8 PoE prievadai

Trumpai apie prekę

Prekė: Tinklo jungiklis Vidos One PS82-120, 8 PoE prievadai. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Vidos
• Modelis: PS82/60

Product Code: PS82-120

Switch PS82-120 is designed to support video intercom and CCTV systems.

The switch is equipped with 8 Ethernet ports supporting PoE (Power Over Ethernet) technology used to power devices in the IEEE 802.3af/a standard.

Additional 2 UPLINK ports are used to connect to the LAN or extend the system with additional switches.

The device is equipped with a switch of VLAN and CCTV modes. VLAN mode allows for cooperation with virtual networks, while CCTV mode introduces separation between individual PoE ports and by limiting the data rate to 10Mbps, increases the communication range to 250 m.

The Vidos PS82-120 switch is easy to install and requires no configuration. With its exceptional performance and quality, it is the perfect device for expanding your small home or office network.

FUNCTIONS:

• Supported standards: IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3 af, IEEE802.3 at
• Number of ports:
• 8x PoE Ethernet, RJ-45 (10/100Mbps)
• 2x Ethernet UPLINK, RJ-45 (10/100Mbps)
• Wiring:
• 10BASE-T: category 3,4,5 UTP cable (≤100m)
• 100BASE-TX: Category 5 UTP cable (≤100m)
• Data transfer rate:
• 10Base-T: 14881Mbps/Port
• 100Base-TX: 148810Mbps/Port
• Capacity: 2,0Gbps
• MAC Addressing: 8K, Automatic Learning, Automatic Patching
• Power Supply: 48V DC PoE
• Possibility of cascade connection
• Passive cooling
• PoE Ports: 8
• UPLINK ports: 2
• PoE capacity: 120W (max)
• Operating temperature: 0°C ~ 40°C
• Dimensions: 220x150x44mm

Specifications
