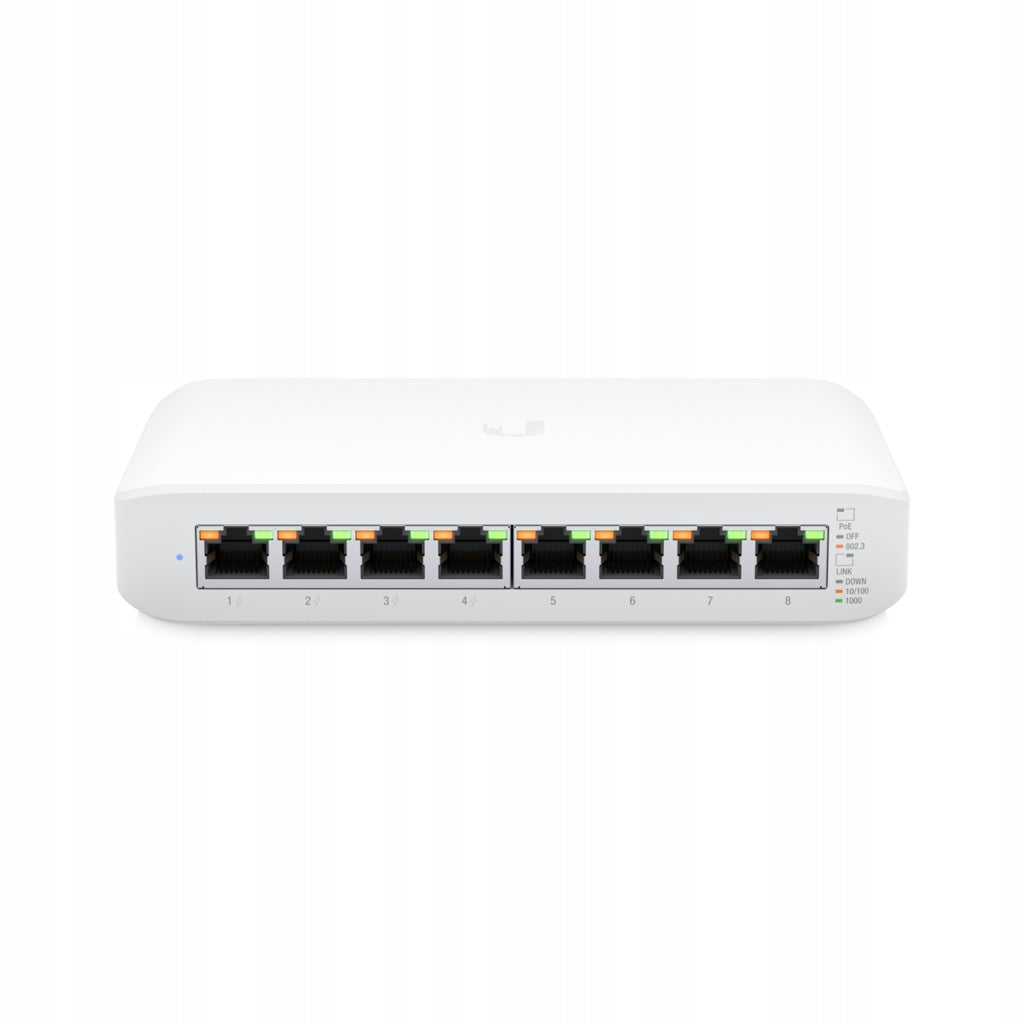

Tinklo jungiklis Ubiquiti UniFi Switch Lite 8 PoE (USW-Lite-8-PoE)

Trumpai apie prekę

Prekė: Tinklo jungiklis Ubiquiti UniFi Switch Lite 8 PoE (USW-Lite-8-PoE). Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Ubiquiti
• Modelis: USW-Lite-8-PoE

Ubiquiti Networks® UniFi Switch™ is a fully managed, Gigabit PoE-enabled switch belonging to the UniFi® product family.

Operating system installed: Android 10.0

UniFi Switch provides the ability to process traffic on all ports, at maximum speed without any packet loss.

The total bandwidth of the 8‑port model is up to 8Gbps.

PoE flexibility

In the UniFi Switch standard, it automatically detects devices powered by 802.3af/at, so that new devices can be automatically powered by PoE (max. 30W per port).

Main features of the USW-Lite-8-PoE model:

• 8 Gigabit RJ45 ports
• 4 PoE ports – IEEE 802.3af/at with Auto-Sensing (Pins 1,2+, 3,6 -)
• Total bandwidth: 8 Gbps
• Maximum power consumption: 8W (60W at full PoE load)
• Quiet, fanless operation

The package contains:

-UniFi Switch Lite 8 PoE

- mounting bracket for wall/substrate with studs,

- DC 54V 1.1A power supply,

- instructions.

Hardware Specifications:

• Dimensions: 99.6 x 163.7 x 31.7mm (3.92 x 6.44 x 1.25")
• Weight: 450g
• Total bandwidth: 8 Gbps
• Ethernet ports: 8x 10/100/1000 Mbps Ethernet RJ45 Ports
• PoE ports: 4x PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)
• Maximum power consumption: 60W using PoE ports; 8W without PoE
• Power supply: DC socket – 50-57V DC range
• Power Supply Included: 54V DC, 1.1A
• LED signaling: PoE (Ports 5-8), Ethernet (green: 1Gbit, amber: 10/100Mbps), Power supply and system status (blue/white LED)
• Network Interfaces: 8 x 10/100/1000 Mbps RJ45 Ethernet
• Certification: CE, FCC, IC
• Rack Mount: No
• Operating temperature: -15 to +45oC
• Operating Humidity: 5-95% non-condensing

Program Specifications:

Some parameters configurable from the UniFi Controller software:

• Operation mode (switching, mirroring, or aggregate) per port
• Network/VLAN configuration
• Jumbo frame and flow control services
• Network settings
• Storm control setting per port
• Spanning tree configuration
• 802.1x control and RADIUS VLAN
• Debug terminal option for command-line interface

Port Status:

• Connection speed and duplex mode
• TX/RX data rates
• Network/VLAN setting

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer	Ubiquiti
Parametry	Number of ports	8
Parametry	EAN (GTIN)	810010071156
Parametry	Manufacturer code	USW-Lite-8-PoE
