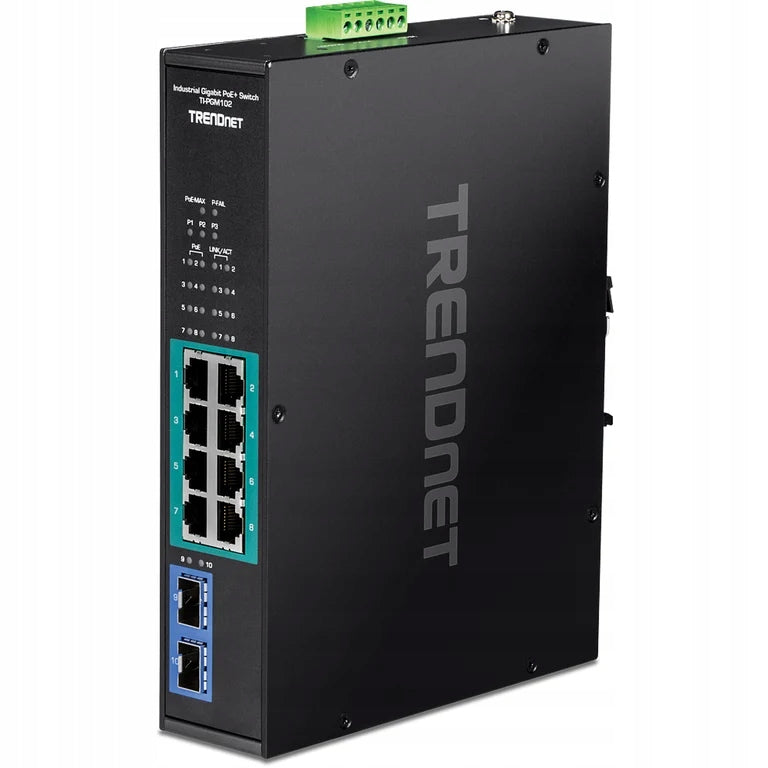

Tinklo jungiklis Trendnet TI-PGM102, 10/100/1000 Mbps Gigabit Ethernet

Trumpai apie prekę

Prekė: Tinklo jungiklis Trendnet TI-PGM102, 10/100/1000 Mbps Gigabit Ethernet. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Trendnet
• Modelis: TI-PGM102

Trendnet TI-PGM102. Basic RJ-45 Ethernet Switching Ports Type: Gigabit Ethernet (10/100/1000), Basic RJ-45 Switching Number of Ethernet Ports: 8, Number of SFP Modules Installed: 2. Full duplex. Address table size: 4000 inputs, Routing/switching throughput: 20 Gbit/s. Communication standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at. DC input voltage: 48 - 55 V. PoE support. Wall Mount / Ceiling Projection

✏ The most important technical parameters:

• Construction - Housing material: Metal
• Construction - DIN mounting on rail: Yes
• Data transfer - Routing/switching bandwidth: 20 Gbit/s
• Data transfer - Forwarding speed: 14,88 Mpps
• Data transfer - Address table size: 4000 inputs
• Data transfer - Store-and-forward: Yes
• Data transfer - Compatible with Jumbo Frames: Yes
• Data transfer - Jumbo Frames extension: 1
• Data transfer - Packet buffer memory: 1,5 MB
• Power over Ethernet (PoE) - PoE Support: Yes
• Power over Ethernet (PoE) - Power over Ethernet Plus (PoE+) number of ports: 8
• Power over Ethernet (PoE) - Total Power over Ethernet (PoE) budget: 240 W
• Working conditions - Temperature range (operation): -20 - 65 °C
• Working conditions - Relative humidity range: 0 - 95%
• Network - Communication standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at
• Network - Auto-Negotiation: Yes
• Network - Full duplex: Yes
• Network - Half duplex: Yes
• Network - Supported auto-learning MAC addresses: Yes
• Network - Supported auto-aging MAC addresses: Yes
• Features - Colour of product: Black
• Features - Wall Mount / Ceiling Projection: Yes
• Weight and sizes - Product height: 45 mm
• Weight and sizes - Product width: 210 mm
• Weight and sizes - Product depth: 160 mm
• Weight and sizes - Product weight: 1,1 kg
• Performance - LEDs: Yes
• Performance - MTBF (Mean Interval Period): 1000000 h
• Ports and interfaces - Basic RJ-45 switching Number of Ethernet ports: 8
• Ports and interfaces - Basic RJ-45 Ethernet Switching Ports Type: Gigabit Ethernet (10/100/1000)
• Ports and interfaces - Number of Gigabit Ethernet ports: 8
• Ports and interfaces - Number of SFP modules installed: 2
• Strength - IP rating: IP30
• Content of the package - Quick Start Guide: Yes
• Package Contents - Hook Mounting Kit: Yes
• Power - Power Source: DC
• Power - Backup Power Support (RPS): Yes
• Power - Power supply included: No
• Power - Maximum power consumption: 6,38 W
• Power - Power Protection Features: Overcharge
• Power - DC input voltage: 48 - 55 V
• Classification - Manufacturer code: TI-PGM102
• Classification - EAN: 0710931162202
• Classification - Product ID: 97225688
