Tinklo jungiklis TP-LINK TL-SG105E, 5 jungčių, gigabitinis, Easy Smart

Trumpai apie prekę

Prekė: Tinklo jungiklis TP-LINK TL-SG105E, 5 jungčių, gigabitinis, Easy Smart. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: AB
• Modelis: ACT-97AE-KILTPLSWI0169

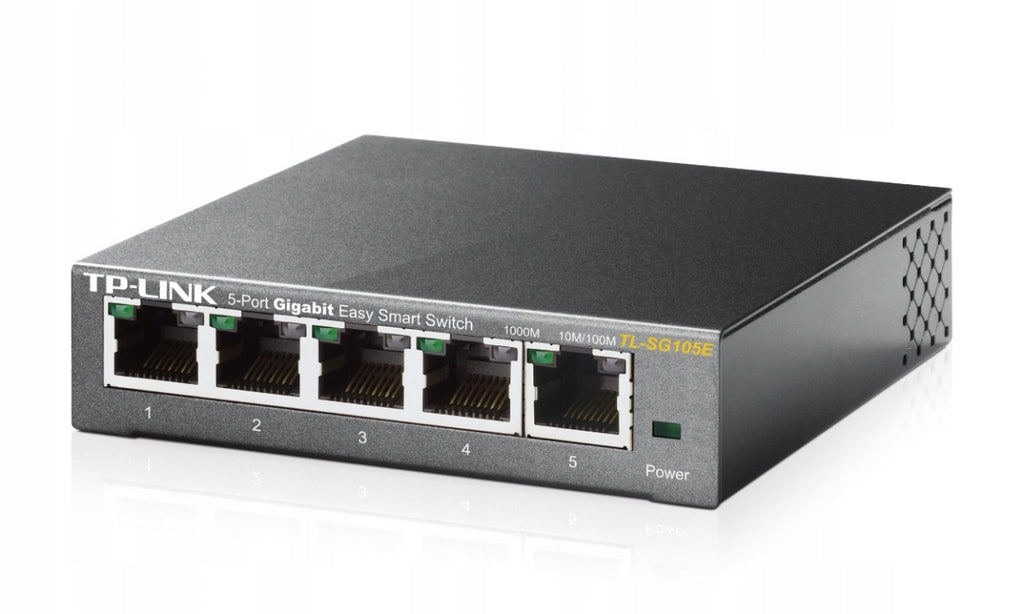

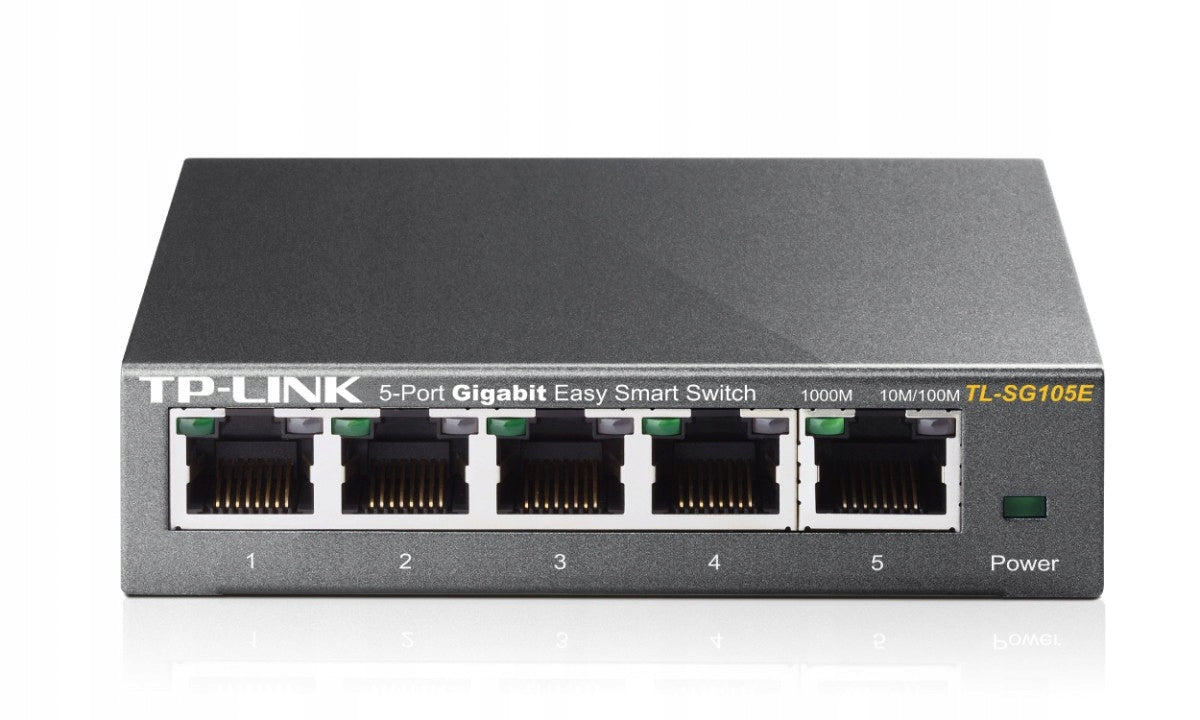

Easy Smart Switch - 5 Port Gigabit Switch TL-SG105E

Main features:

- 5 RJ 45 10/100/1000 Mbps ports

- Network monitoring, network traffic prioritization and VLAN capabilities

- Innovative technology saves up to 75% of energy

- No configuration required - Plug&Play

- Manage with Easy Smart Configuration Utility (Windows)

Application of the product

The Easy Smart TL-SG105E switch is a device designed for small and medium-sized businesses where it is necessary to use the basic functions of local network management. With port mirroring, loop prevention and cable health diagnostics, administrators can easily monitor network traffic. Support for port-based QoS and 802.1P tagging enables you to maintain the highest bandwidth for the most important connections in your corporate network. In addition, support for port-based, tag-based and MTU-based VLANs enables improved security and proper separation of network resources. In addition, the TL-SG105E switch is environmentally friendly, as it uses innovative technology to save up to 75% of energy consumption.

Simple and effective management

The Easy Smart TL-SG105E switch from TP-LINK is equipped with easy-to-use layer two management functions, available from the Easy Smart Configuration Utility (for Windows). With support for port mirroring, loop prevention and port health diagnostics, the TL-SG105E enables you to identify and locate any issues in your corporate network. In addition, administrators can leverage port-based QoS support or 802.1p tagging to ensure seamless transmissions such as voice or video broadcasts. Additionally, to increase network performance and security, the switch supports port-based VLANs, tag markings and MTUs (enable easy uplink port configuration). With its management capabilities, the TL-SG105E provides greater functionality than unmanaged switches, while being a cost-effective and easy-to-use solution for your network.

Energy-efficient Ethernet - environmentally friendly

By creating a gigabit Ethernet network, you can now choose an environmentally friendly solution! The TL-SG105E uses technology that enables high-bandwidth networks with high energy savings. The device automatically adjusts the required power consumption depending on the connection status and cable length, reducing power consumption.

Disabling power to unused ports

Traditional network switches consume a significant amount of power for ports, even if the devices connected to them are turned off. The TL-SG105E automatically detects the connection status of each port, reducing the power consumption of inactive ports.

Power consumption depending on cable length

Theoretically, the use of shorter cables should reduce energy consumption, due to lower energy losses in their length. However, most devices use the same amount of energy, regardless of the length of the cables. The TL-SG105E analyses the length of cables connected to it and regulates the amount of energy consumed by the ports accordingly.

Ease of use

The TL-SG105E switch is easy to use and install. Thanks to Auto MDI/MDIX, there is no need for patch cables. The automatic negotiation function detects the speed of the connected device (10, 100 or 1000Mbps) on each port, ensuring the best transmission performance. The small size makes it take up little space when using the desk. The LEDs display information about the current status of each port, allowing for easy diagnostics of connections.

• Switch class:SMART
• Application:Home and small office
• Switching modes:L2
• Network architecture :GigabitEthernet
• Number of ports 10/100 Mbps:None
• Number of ports 10/100/1000 Mbps:5
• Number of 10Gb ports:None
• Number of PoE ports (PoE + PoE+):None
• Number of PoE+ ports:None
• Number of COMBO ports:None
• Number of SFP ports:None
• Number of SFP+ ports:None
• Console port:No
• Forward mode:Store-and-forward
• Transfer speed:7.4 Mpps
• Package buffer:2 MB
• MAC address array size:8192
• Support Jumbo frames:Yes

• Jumbo frame size:16 KB
• Stackable:No
• Number of VLAN groups:32
• VLAN:- Simultaneous support for up to 32 VLANs (with 4096 VLAN IDs)- MTU/Port/Tag VLAN
• Supported protocols and standards:- IEEE 802.3- IEEE 802.3u- IEEE 802.3ab- IEEE 802.3x- IEEE 802.1q- IEEE 802.1p
• QoS:- Support port-based prioritization/802.1p queuing- Support 4 priority queues- Transmission speed limiting function for each port- Storm Control function
• Functions L2:- IGMP Snooping- Connection aggregation- Port mirroring- Cable status diagnostics- Loop prevention
• Other functions:Auto-MDI/MDIX auto-negotiation
• Housing type:Desktop
• Fan :No
• Power Supply :Internal
• Accessories included:- TL-SG105E- Power cable- User manual- CD- Rubber feet
• Power supply:100-240VAC, 50/60Hz
• Dimensions:100 x 98 x 25 mm
• Other parameters:- 5 ports provide high performance, suitable for fast transfer of large files- Innovative technology saves up to 75% of energy- Flow control 802.3x - data transmission optimization- Support for 16K Jumbo frames- Network health monitoring functions - port mirroring, loop prevention, etc. - Support QoS function- IGMP Snooping function- Easy central management
• Certificates:CE,FCC Class B,RoHS
• Environmental requirements:- Permissible operating temperature: 0 - 40 degrees C- Permissible storage temperature: -40 to 70 degrees C- Permissible air humidity: 10 - 90% (non-condensing)- Permissible storage humidity: 5-90% (non-condensing)
• Supported operating systems:Windows XP,Windows Vista,Windows 7,Windows 8
• Data Act:Link
