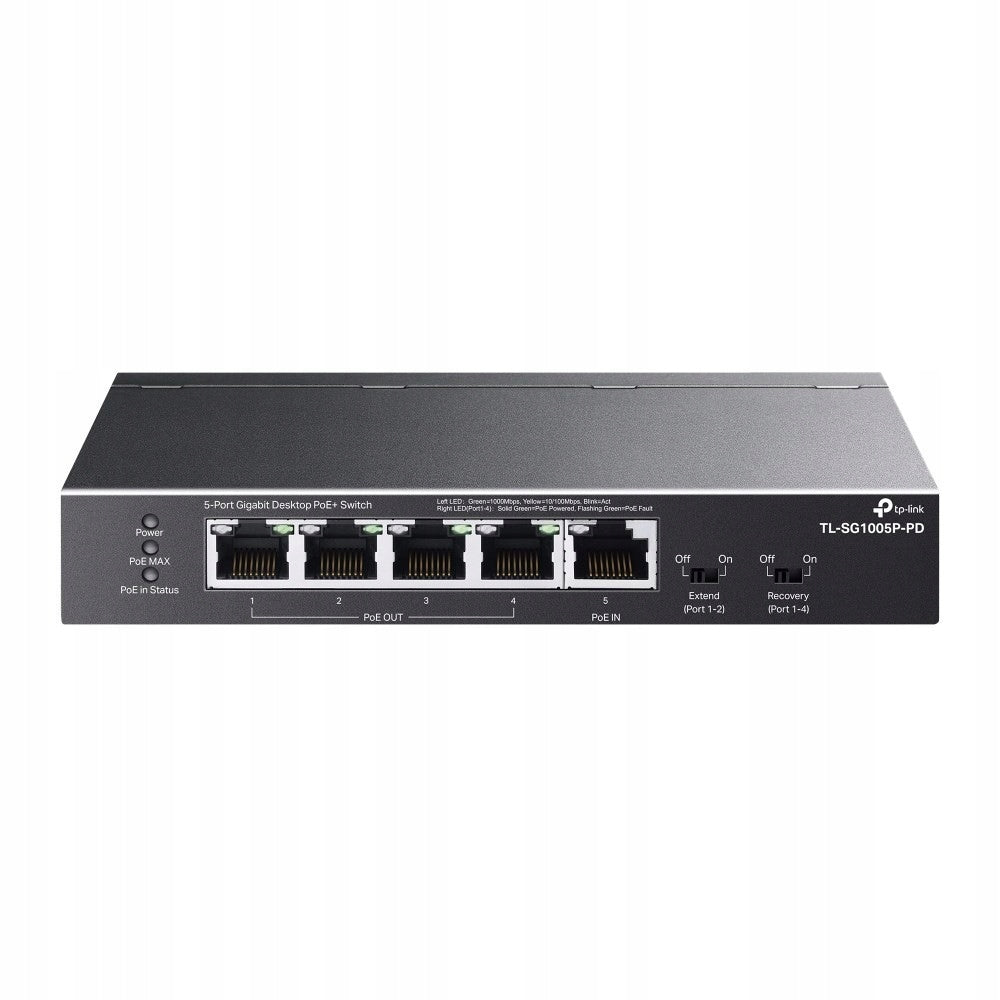

Tinklo jungiklis TP-LINK TL-SG1005P-PD

Trumpai apie prekę

Prekė: Tinklo jungiklis TP-LINK TL-SG1005P-PD. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: TP-Link
• Modelis: TL-SG1005P-PD

Design

• Number of fans: 0 went.
• Wall mountable: Yes
• LEDs: Yes
• Product color: Black

Power

• Power source: PoE
• Power supply included: No
• Power consumption (max): 68,59 W

Protection

• IGMP snooping: Yes

Features of management

• Service Quality (QoS): Yes

Working conditions

• Heat emission: 233,206 BTU/h
• Admissible relative humidity: 5 - 90%
• Temperature range (storage): -40 - 70 °C
• Temperature range (operation): -30 - 70 °C
• Relative humidity range: 10 - 90%

Network

• Supported cable types: Cat4, Cat5e, Cat5, Cat6, Cat3
• Copper Ethernet cabling technology: 100BASE-TX, 1000BASE-T, 10BASE-T
• Support 10G: Yes
• Automatic MDI/MDI-X: Yes
• Flow control support: Yes
• Supported auto-learning of MAC addresses: Yes
• Supported auto-aging MAC addresses: Yes
• Auto-Negotiation: Yes
• Communication standards: IEEE 802.1p, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3af, IEEE 802.3x, IEEE 802.3i, IEEE 802.3bt

Efficiency

• Without windmill: Yes

Contents of the pack

• User Guide: Yes

Ports and interfaces

• Basic RJ-45 switching Number of Ethernet ports: 5
• Basic RJ-45 Ethernet Switching Ports Type: Gigabit Ethernet (10/100/1000)

Data transmission

• Routing/switching throughput: 10 Gbit/s
• Store-and-forward: Yes
• Address table size: 2000 inputs
• Transfer speed: 7,44 Mpps

Power over Ethernet (PoE)

• Number of Fast Ethernet (PoE) ports: 5
• Total Power over Ethernet (PoE) budget: 66 W
• PoE support: Yes
