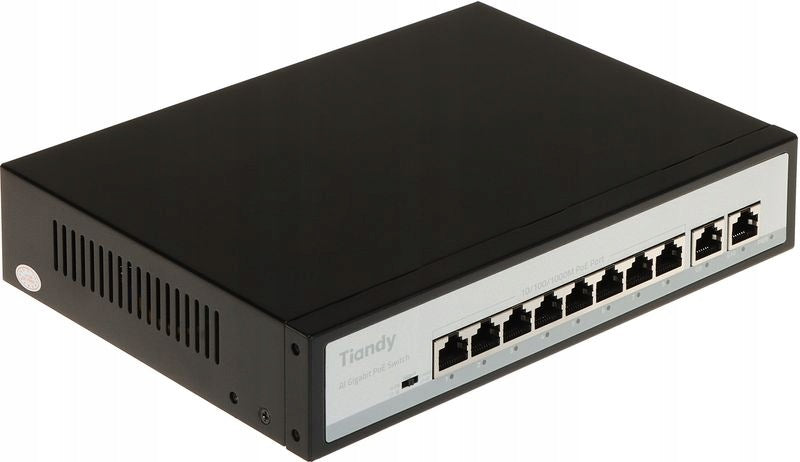

Tinklo jungiklis TC-P3S010, 8 PoE prievadai

Trumpai apie prekę

Prekė: Tinklo jungiklis TC-P3S010, 8 PoE prievadai. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Tiandy
• Modelis: TC-P3S010 SPEC:G/0820/AT/110

High-quality gigabit network switch from Tiandy designed for reliable power supply and data transmission in IP monitoring systems as well as home and office networks.

Up to 8 Gigabit ports with PoE+ power supply (802.3af/at standard) with a maximum power of up to 30W per single port and a total power budget of up to 110W.

The additional 2 Gigabit Uplink ports ensure smooth communication with your router, recorder, or main switch without clogging your work ports.

The real work of Plug & Play means no complicated configuration is necessary – the device works immediately when connected to power.

The built-in PoE Watchdog function automatically monitors the status of connected devices and, if suspended, automatically cuts off and restores power by restarting the equipment.

The durable, compact housing made of graphite-colored metal perfectly dissipates heat and ensures a long service life with quiet fanless operation.

THREE PRACTICAL MODES OF OPERATION

• Normal mode: Standard operation of the gigabit switch with full bandwidth on all ports.
• VLAN mode: Works as hardware port isolation from 1 to 8. Devices cannot see each other, which increases security and prevents unnecessary network load by only communicating with Uplink ports.
• Extend Mode: Allows you to extend the range of data transmission and PoE power supply on ports 7 and 8 up to 220 meters (with a speed release of up to 10 Mb/s), which is ideal for mounting cameras over long distances.

ADVANCED SAFEGUARDS AND PURPOSE

The switch is equipped with professional surge protection against atmospheric discharges (up to 4 kV) and electrostatic ESD. This ensures that the connected equipment is safe during storms and voltage fluctuations. The device also meets the strict NDAA certification.

It works perfectly with devices such as:

• IP surveillance cameras
• NVR recorders
• Wi-Fi access points (Access Point)
• VoIP phones
• Computers and network printers

TECHNICAL DATA

• Manufacturer: Tiandy
• Model: TC-P3S010
• Number of LAN ports: 8x RJ45 PoE Gigabit (10/100/1000 Mbps) + 2x RJ45 Uplink Gigabit (10/100/1000 Mbps)
• PoE standard: IEEE 802.3af / IEEE 802.3at
• PoE output power: Up to 30 W per port (Maximum total budget: 110 W)
• Switching performance: 20 Gbps
• Package redirection speed: 14.88 Mpps
• MAC address table: 2k
• Overvoltage protection: 4 kV (2 kV differential), ESD 6/8 kV
• Power supply: 100 - 240 V AC (built-in power supply)
• Own power consumption: max 10 W
• Housing: Metal, Desktop type
• Dimensions: 220 x 161 x 44 mm
• Weight: 0.98 kg
