Tinklo jungiklis SG1048, 48 x 1GB, stalinis / į spintą

Trumpai apie prekę

Prekė: Tinklo jungiklis SG1048, 48 x 1GB, stalinis / į spintą. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: TP-Link
• Modelis: 417187866

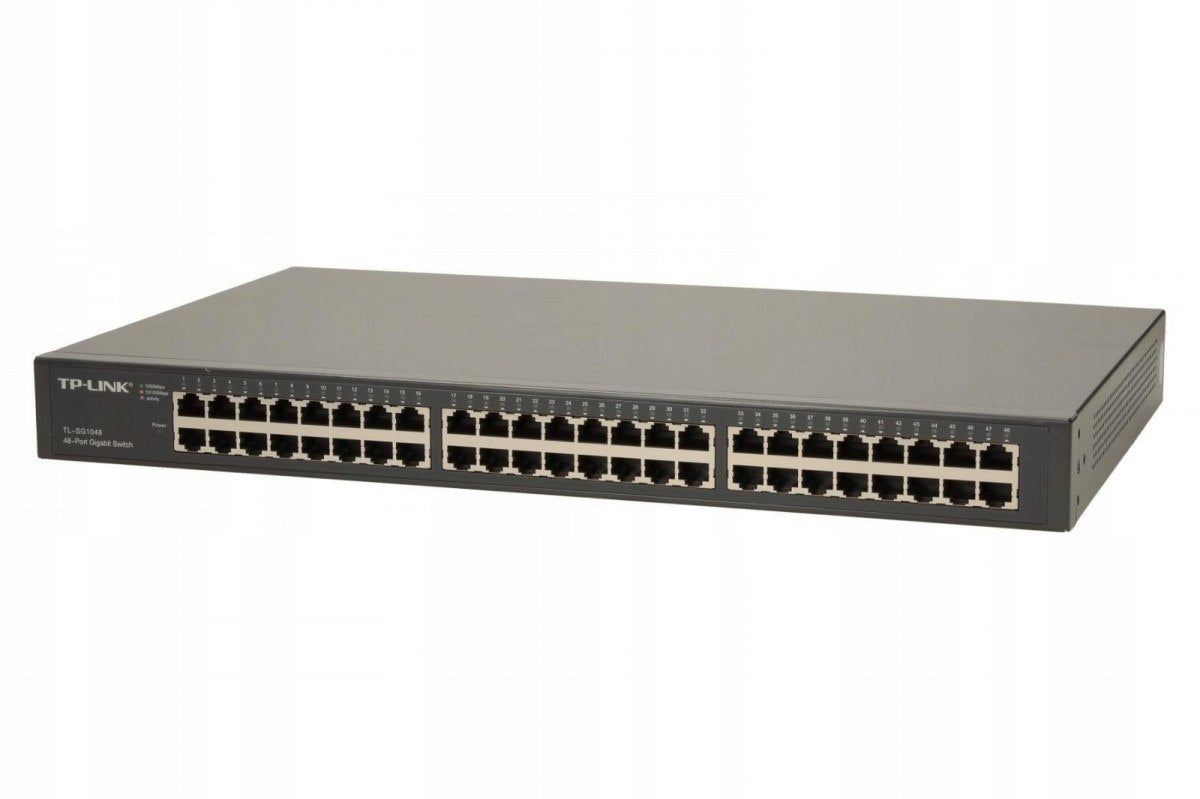

SG1048 switch L2 48x1GB Desktop/Rack

The 48 port gigabit TL-SF1048 switch is designed for users with high network connection quality requirements. The device is easy to use and has no complex management functions. It is equipped with 48 ports 10/100Mbps. TL-SF1048 switch is an inexpensive device that guarantees high work efficiency. It is a good choice for network administrators looking for the best solutions at the lowest possible prices.

Automatic switch operation thanks to plug and play function ensures simple and hassle-free installation. The device does not require additional software. With MDI/MDIX, there is no need for patch cables or uplink ports. The automatic connection negotiation function detects the speed of the connected device (10, 100 or 1000Mbps) on each port, ensuring the best transmission performance. The desktop enclosure allows you to place the device in places where there is not much free space. A safe and convenient solution is also to place the switch in the cabinet. LEDs indicate the operating status of the device and detect major errors in transmission.

The TL-SG1048 uses a seamless data packet switching architecture for wired networks. The switching capacity is 96Gb/s, thanks to which the maximum bandwidth of the links is used. An array of 8K MAC addresses ensures the scalability of even large networks. Support for bandwidth control standard for full duplex mode (802.3x) and backpressure function for half duplex mode ensures smooth network traffic and reliable data transmission.

Product Information

Application

Medium and large companies (over 16 ports)

Network architecture

GigabitEthernet

Number of ports 10/100/1000 Mbps

48

Technical specification

Ports 48 RJ45 10/100/1000Mbps ports

Automatic connection speed negotiation and automatic patching (Auto-MDI/MDIX)

External power supply Input: 100~240VAC, 50/60Hz Output: 12VDC/8,5A

Data Flow Control (802.3X), Back Pressure

Ports with Auto-Uplink

Store-and-forward

Yes

Support for Jumbo frames

Yes

MAC Address Table Size

8000

Housing type

Rack (Switche/UPS)

Declarations and certificates

FCC, CE, RoHS

Other parameters

Working environment:

Permissible operating temperature: 0℃~40℃ (32℉~104℉);

Permissible storage temperature: -40℃~70℃ (-40℉~158℉);

Permissible air humidity: 10%~90%, non-condensing

Permissible storage humidity: 5%~90%, non-condensing

Accessories included

Desktop Switch, 48 Gb Ports

Power cable

User manual

Dimensions

440*360*44 mm

Functions

Filtering 100% of packets eliminates transmission of erroneous packets

Support bandwidth control standard for full duplex mode (IEEE802.3x) and backpressure function for half duplex mode

Seamless network traffic switching architecture enables packet forwarding and filtering at full speed with maximum link bandwidth

Switching capacity 96Gb/s

Thanks to the MDI/MDIX function, there is no need for patch cables

Support auto-learning and auto-aging MAC addresses

Ports support N-Way automatic connection speed negotiation and Store and Forward

Desktop enclosure, rack mounting possible

Simple installation with Plug and Play
