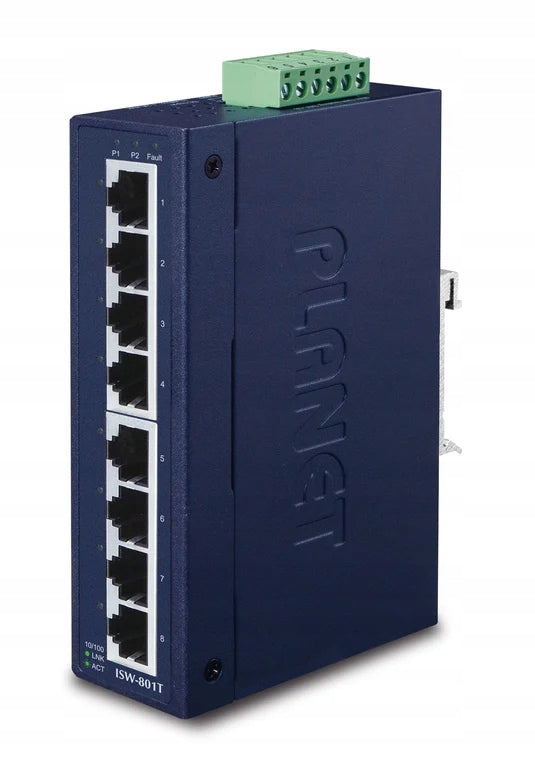

Tinklo jungiklis PLANET ISW-801T, 8 prievadų, Fast Ethernet, nesuvaldomas

Trumpai apie prekę

Prekė: Tinklo jungiklis PLANET ISW-801T, 8 prievadų, Fast Ethernet, nesuvaldomas. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Planet
• Modelis: ISW-801T

PLANET ISW-801T. Switch Type: Not Managed, Switch Layer: L2. Basic RJ-45 Ethernet Switching Ports Type: Fast Ethernet (10/100), Basic RJ-45 Switching Number of Ethernet Ports: 8. Full duplex. Address table size: 1024 inputs, Routing/switching throughput: 1,6 Gbit/s. Communication standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x. Wall mounting / ceiling projection

✏ The most important technical parameters:

• Management Features - Switch Type: Not Managed
• Management features - Switch layer: L2
• Data transfer - Routing/switching bandwidth: 1,6 Gbit/s
• Data transfer - Bandwidth: 1,19 Mpps
• Data transfer - Address table size: 1024 inputs
• Power over Ethernet (PoE) - PoE Support: No
• Network - 10G support: No
• Features - Colour of product: Blue
• Network - Communication standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
• Ports and interfaces - Basic RJ-45 switching Number of Ethernet ports: 8
• Network - Copper Ethernet cabling technology: 10BASE-T, 100BASE-TX
• Ports and interfaces - Basic RJ-45 Ethernet Switching Ports Type: Fast Ethernet (10/100)
• Ports and interfaces - Number of Fast Ethernet ports (copper): 8
• Features - Wall Mount / Ceiling Projection: Yes
• Network - Store-and-forward: Yes
• Features - Full duplex: Yes
• Features - LEDs: Yes
• Network - Flow control support: Yes
• Network - Auto-Negotiation: Yes
• Network - Supported MAC address auto-learning: Yes
• Network - Supported auto-aging MAC addresses: Yes
• Features - Temperature range (operation): -40 - 75 °C
• Weight and sizes - Product width: 135 mm
• Weight and sizes - Product depth: 87 mm
• Weight and sizes - Product height: 32 mm
• Weight and sizes - Product weight: 428 g
• Certificates - Certificates: FCC, CE
• Power - Power supply included: No
• Power - Power consumption: 2,1 W
• Strength - IP rating: IP30
• Design - Stackable product: No
• Construction - Rack mounting options: No
• Construction - Housing material: Metal
• Power Supply - Backup Power Supply (RPS) Support: Yes
• Construction - DIN mounting on rail: Yes
• Working conditions - Relative humidity range: 5 - 95%
• Working conditions - Temperature range (storage): -40 - 75 °C
• Working conditions - Permissible relative humidity: 5 - 95%
• Working conditions - Heat emission: 7,1 BTU/h
• Logistics data - Harmonised system code (HS): 85176990
• Classification - Manufacturer code: ISW-801T
• Classification - EAN: 4711213687228
• Classification - Product ID: 27321365
