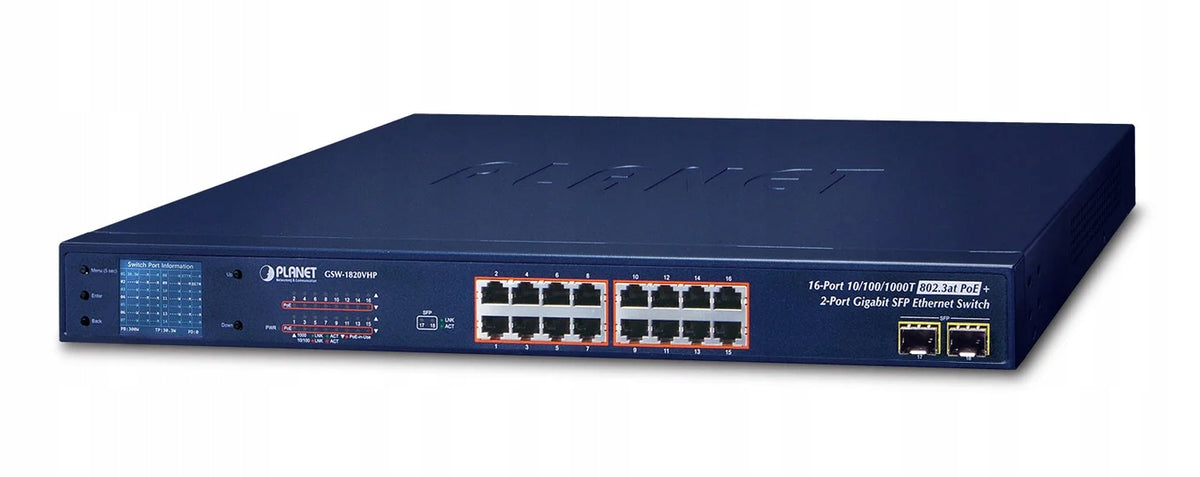

Tinklo jungiklis PLANET GSW-1820VHP, 18 prievadų, Gigabit, nevaldomas

Trumpai apie prekę

Prekė: Tinklo jungiklis PLANET GSW-1820VHP, 18 prievadų, Gigabit, nevaldomas. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Planet
• Modelis: GSW-1820VHP

PLANET GSW-1820VHP. Switch Type: Not Managed. Basic RJ-45 Ethernet Switching Ports Type: Gigabit Ethernet (10/100/1000), Basic RJ-45 Switching Number of Ethernet Ports: 16. Full duplex. Address table size: 8000 inputs, Routing/switching throughput: 36 Gbit/s. Communication standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z. PoE support. Rack Mount Capabilities, Layout: 1U

✏ The most important technical parameters:

• Data transfer - Routing/switching bandwidth: 36 Gbit/s
• Data transfer - Bandwidth: 26,8 Mpps
• Data transfer - Address table size: 8000 inputs
• Data transfer - Store-and-forward: Yes
• Data transfer - Compatible with Jumbo Frames: Yes
• Data transfer - Jumbo Frames extension: 9216
• Power over Ethernet (PoE) - Number of Fast Ethernet (PoE) ports: 16
• Power supply via Ethernet (PoE) - Power supply via Ethernet (PoE) power supply per port: 30 W
• Power over Ethernet (PoE) - Total Power over Ethernet (PoE) budget: 300 W
• Performance - Colour of product: Blue
• Management Features - Switch Type: Not Managed
• Ports and interfaces - Basic RJ-45 switching Number of Ethernet ports: 16
• Ports and interfaces - Basic RJ-45 Ethernet Switching Ports Type: Gigabit Ethernet (10/100/1000)
• Ports and interfaces - Number of SFP slots: 2
• Design - Layout: 1U
• Construction - Housing material: Metal
• Features - Communication standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
• Features - Heat emission: 1132 BTU/h
• Features - Number of fans: 3 went.
• Features - Rack mounting options: Yes
• Network - 10G support: No
• Network - Automatic MDI/MDI-X: Yes
• Network - Full duplex: Yes
• Network - Supported MAC address auto-learning: Yes
• Network - Supported auto-aging MAC addresses: Yes
• Network - VLAN support: Yes
• Weight and sizes - Product width: 440 mm
• Weight and sizes - Product depth: 233 mm
• Weight and sizes - Product height: 44 mm
• Weight and sizes - Product weight: 3,4 kg
• Contents of the package - User Manual: Yes
• Power - Maximum power consumption: 330 W
• Power - Input current: 5 A
• Power - PoE Support: Yes
• Power - AC input voltage: 100 - 240 V
• Power - AC input frequency: 50 - 60 Hz
• Other Features - Certificates: FCC Part 15 Class A, CE
• Working conditions - Relative humidity range: 10 - 90%
• Working conditions - Temperature range (operation): -10 - 60 °C
• Working conditions - Temperature range (storage): -10 - 70 °C
• Working conditions - Permissible relative humidity: 5 - 90%
• Classification - Manufacturer code: GSW-1820VHP
• Classification - EAN: 4711605283755
• Classification - Product ID: 33415685
