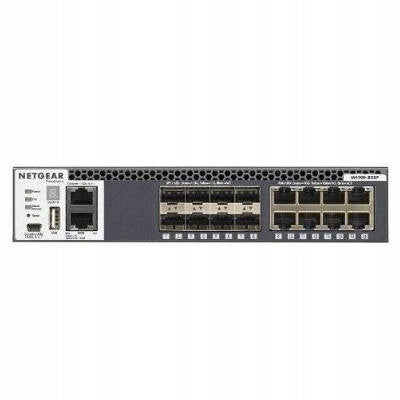

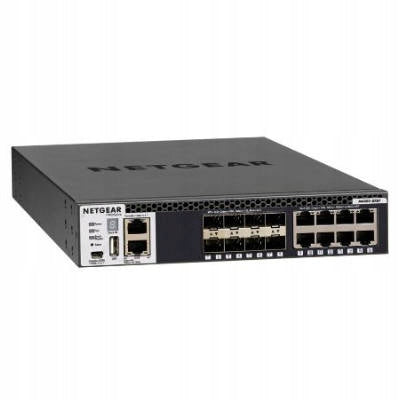

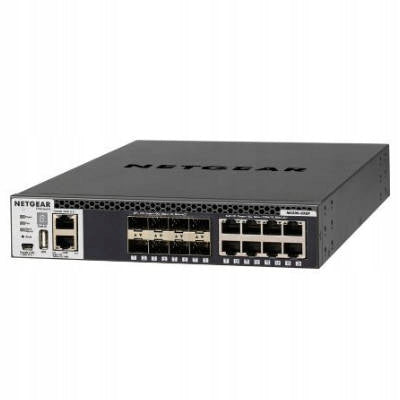

Tinklo jungiklis Netgear M4300-8X8F XSM4316S-100NES

Trumpai apie prekę

Prekė: Tinklo jungiklis Netgear M4300-8X8F XSM4316S-100NES. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Netgear
• Modelis: XSM4316S-100NES

NETGEAR XSM4316S-100NES is a professional managed L3 layer switch from the NETGEAR M4300 series, designed for corporate networks, data centers and AV-over-IP installations. The device offers 16 ports 10 Gigabit Ethernet SFP+, providing very high bandwidth and minimum latency required for professional audio-video transmission systems.

The switch belongs to the NETGEAR M4300 Intelligent Edge series, which is designed to build scalable and efficient networks for data, voice and video transmission in real time. With support for stacking and spine-leaf architecture, the device can work as part of a network core or distribution in high-bandwidth installations.

The XSM4316S is particularly valued in the AV and broadcast industries because it provides the networking features required by AV-over-IP systems such as multicast, time synchronization, audio-video traffic prioritization and automatic management of multimedia streams.

Switch NETGEAR XSM4316S is used in installations where high bandwidth, very low latency and stable multicast audio-video transmission are required.

The most common uses:

Professional AV-over-IP installations

• 4K/8K video signal distribution in IP networks
• SDVoE (Software Defined Video over Ethernet)
• Image distribution systems in conference rooms
• installations in television and production studios

Network audio systems

• Real-time multi-channel audio transmission
• audio networks in stage and concert installations
• distribution of audio signal in public facilities

Transmission and event installations

• LED video systems
• transmission infrastructure in TV studios
• live production systems

IT infrastructure

• 10G server aggregation
• campus networks and data centers
• Enterprise-class WiFi networks

The M4300 series is designed to support data, video and voice traffic simultaneously on a single converged network.

The switch offers advanced features for AV-over-IP and network audio installations.

Support multicast AV

• NETGEAR IGMP Plus™ – automatic multicast configuration in AV network
• IGMP Snooping (IPv4)
• MLD Snooping (IPv6)
• IGMP Querier
• Multicast VLAN Registration (MVR)
• Multicast routing PIM-SM/PIM-DM

As a result, only devices that need an audio-video stream receive data on the network, which significantly reduces the load on the infrastructure.

Audio and video synchronization

• IEEE 1588 PTPv2 (Precision Time Protocol)
• Transparent Clock
• synchronization of audio-video devices in real time

This is crucial for professional audio systems where clock synchronization needs to be very precise.

Prioritization of AV traffic

• Auto-VoIP – automatic VoIP traffic detection
• Voice VLAN
• LLDP-MED for IP phones
• QoS based on 802.1p and DiffServ

The switch can automatically recognize audio movement and give it the highest priority.

Audio standards supported by network infrastructure

Switch can work in networks using professional IP audio protocols, m.in.:

• Dante
• AES67
• AVB / TSN
• Ravenna
• Livewire+
• Q-LAN
• NDI Audio / Video
• SDVoE

With support for multicast, QoS, and time synchronisation, this device is ideal for real-time audio transmission systems.

• 16 ports 10G SFP+ for very high bandwidth
• stacking up to 8 switches into one logical switch
• spin-leaf architecture for large networks
• support for AV multicast and IGMP Plus
• PTPv2 for audio-video synchronization
• advanced IPv4 and IPv6 routing
• high reliability and redundancy of power
• line-rate work without loss of performance

The switch provides full L2, L3 and L4 functions without the need to purchase additional licenses, which greatly simplifies the implementation in AV and IT installations.

Network interfaces

Network ports

16 × 10GBASE-X SFP+

Supported port speeds

1 Gbps

10 Gbps

Port of management

1 × Gigabit Ethernet OOB (Out-of-Band)

Console port

1 × RJ-45 RS232

1 × Mini-USB

USB port

1 × USB for logs and configuration

Efficiency

Switching fabric

320 Gb/s

Switching bandwidth

line-rate

Forwarding rate

up to 357 Mpps

Delay

< 1.83 µs (10G SFP+)

Package buffer

16 MB

MAC board

16 000 addresses

ARP/NDP

888 entries

VLAN

up to 4096 VLAN

Routing table

IPv4: up to 512 routes

IPv6: up to 512 routes

Layer 2 features

IGMP Snooping v1/v2/v3

MLD Snooping v1/v2

IGMP Querier

NETGEAR IGMP Plus

Multicast VLAN Registration (MVR)

Spanning Tree

STP

RSTP

MSTP

PVST / PVRST

Link Aggregation

LACP (IEEE 802.3ad / 802.1AX)

Port Mirroring

RSPAN

Layer 3 Features

Static IPv4/IPv6 routing

Policy-Based Routing (PBR)

Routing protocols

RIP v2

VRRP

OSPF v2

OSPF v3

Multicast routing

PIM-SM

PIM-DM

DVMRP

QoS and traffic control

8 QoS queues

802.1p CoS

DiffServ DSCP

Rate limiting

Traffic shaping

Auto-VoIP

Auto-iSCSI

Security

802.1X Port Authentication

MAC Authentication Bypass (MAB)

Captive Portal

DHCP Snooping

Dynamic ARP Inspection

IP Source Guard

ACL L2/L3/L4

TRAYCS+

RADIUS

SSH v2

SSL/TLS

SNMPv3

Governance

CLI (Command Line Interface)

Web GUI

SNMP

RMON

sFlow

LLDP / LLDP-MED

NMS300 Central Management

Automatic DHCP / BootP installation

High availability features

Stacking to 8 switches

Virtual Chassis

Non-Stop Forwarding (NSF)

Redundant power supplies

Link dependency

Distributed Link Aggregation

Physical parameters

Housing

Rack 19"

Height

1U (half-width)

Cooling

Front-to-back fans

Noise level

OK. 35 dB

Power supply

AC 110-240 V

Power supply

modular

Working conditions

Operating temperature

0 – 50°C
