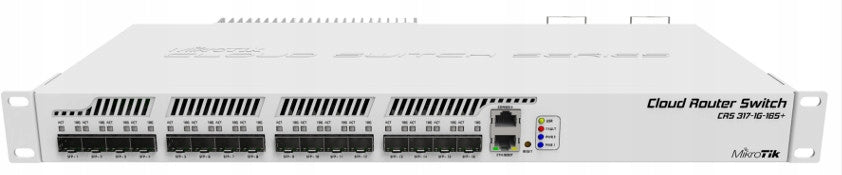

Tinklo jungiklis MIKROTIK ROUTERBOARD CRS317-1G-16S+RM

Trumpai apie prekę

Prekė: Tinklo jungiklis MIKROTIK ROUTERBOARD CRS317-1G-16S+RM. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: MikroTik
• Modelis: CRS317-1G-16S+RM

​

MikroTik Routerboard RTB-CRS317-1G-16SPLRM

The most important features

• 16 slots for SFP+ inserts
• Compatible with both SFP+ and SFP cartridges
• Efficient switch chip
• Processor with a clock speed of 800 MHz
• 1 GB of RAM
• Dual boot - RouterOS and SwitchOS

Product Description

CRS317-1G-16S+RM is a powerful, managed Layer 2/3 switch. It is equipped with 16 slots for SFP+ inserts, ordinary SFP inserts can also be successfully inserted into the slots. The device has a powerful switch chip that allows you to use the capabilities of 16 ports with a bandwidth of 10 Gbps. The product also has a processor with a clock speed of 800 MHz and 1 GB of RAM, so it can partially work in the Layer 3 layer, without performance problems.

Switch has a dual boot function - the user can choose to use SwitchOS or RouterOS. Using SwitchOS, we get a graphical interface and all the functions of a managed switch. In addition, the software supports MAC filtering, VLAN configuration, mirror traffic or bandwidth limiting. RouterOS, on the other hand, allows you to take advantage of more advanced features in Layer 3.

The offered product is enclosed in a housing adapted for mounting in a 19" rack. It is passively cooled, but also has fans that turn on when the temperature rises. The device is equipped with two built-in power supplies that can work redundantly. In the event of failure of one, the power supply will be responsible for the other.

Technical specification

Processor98DX8216B0Clock processor800 MHz RAM1 GBBuilt-in memory16 MBType of built-in memoryFlashPorts16 SFP+Support SFP and SFP+Support DDMIOperating systemRouterOS and SwitchOSLicense RouterOSLevel 6Serial portRJ45Power supplyBuilt-in power supply110 -240 V ACNumber of inputs AC2Redundancy of power suppliesYesMaximum power consumption42 Active coolingYesCPU temperature monitoringYesAdmissible operating temperatureFrom -40 to 70 degrees CDimensions443x224x44 mm

Performance test (switch configuration)

ModeConfiguration1518 bytes512 bytes64 bytesSwitchingLayer 2 throughput13085.2 kpps158906.4 Mb/s37828.9 kpps154947.4 Mb/s239583.3 kpps1222666.7 Mb/sSwitchingLayer 2 capacity13085.2 kpps317812.7 Mb/s37828.9 kpps309894.7 Mb/s239583.3 kpps245333.3 Mb/sSwitchingLayer 1 throughput13085.2 kpps161000 Mb/s37828.9 kpps161000 Mb/s239583.3 kpps161000 Mb/sSwitchingLayer 1 capacity13085.2 kpps322000 Mb/s37828.9 kpps3220000 Mb/s239583.3 kpps322000 Mb/s

Performance test

ModeConfiguration1518 bytes512 bytes64 bytesBridgingNone268.3 kpps3258.2 Mb/s361.2 kpps1479.5 Mb/s355.2 kpps181.9 Mb/sBridging25 bridge filter rules98.4 kpps1195 Mb/s98.6 kpps403.9 Mb/s98 kpps50.2 Mb/sRoutingBrak254.4 kpps3089.4 Mb/s309.8 kpps1268.9 Mb/s315.4 kpps161.5 Mb/sRouting25 simple queues104.6 kpps1270.3 Mb/s104.4 kpps427.6 Mbps104.6 kpps53.6 Mb/sRouting25 ip filter rules104.6 kpps1270.3 Mb/s103.4 kpps423.5 Mb/s103.9 kpps53.2 Mb/s

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer	MikroTik
Parametry	Product weight with unit packaging	2 kg
Parametry	Number of ports	1
Parametry	EAN (GTIN)	4752224002167
Parametry	Manufacturer code	CRS317-1G-16S+RM
Parametry	Packaging status	original
Parametry	Certificates of conformity	CE
