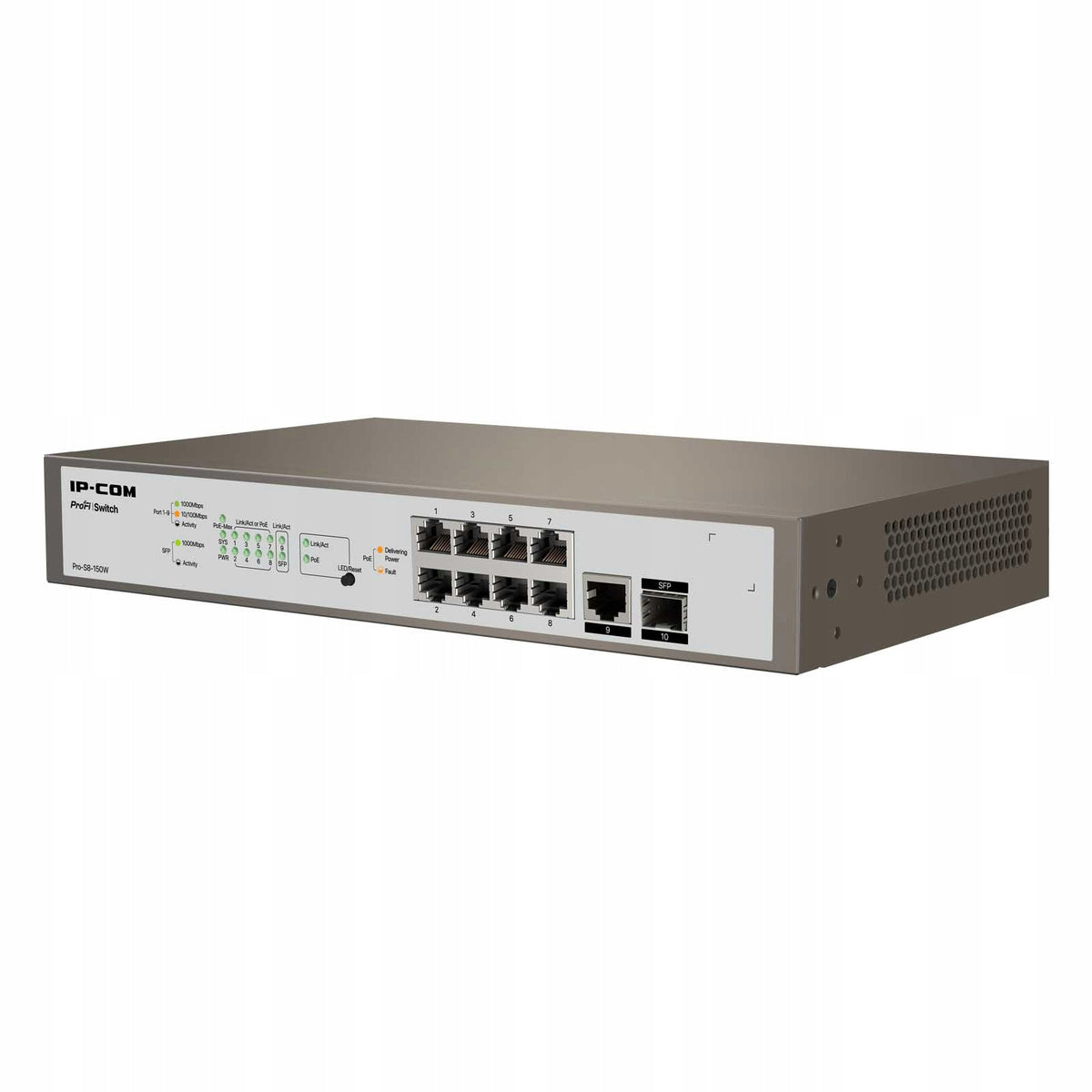

Tinklo jungiklis IP-COM Pro-S8-150W, 8x Gigabit Ethernet, PoE, SFP

Trumpai apie prekę

Prekė: Tinklo jungiklis IP-COM Pro-S8-150W, 8x Gigabit Ethernet, PoE, SFP. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Ip-Com
• Modelis: Pro-S8-150W

• Compliance with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x,IEEE 802.1p, IEEE 802.1q, IEEE 802.1w, IEEE 802.1d, IEEE 802.1s, IEEE 802.3af/at
• 8x Gigabit Ethernet 10/100/1000 Base-T PoE ports
• 1x Gigabit Ethernet 10/100/1000 Base-T port
• 1x 1000 Base-X SFP slot
• 16K MAC Address Board and Automatic MAC Address Learning
• Buffer 12Mb
• Switching bandwidth: 20 Gbps
• Support for multiple services such as static routing, VLAN, IGMP, QoS, ACL, DHCP Snooping, ARP and Telnet
• Support IP-COM Profi Soft controller management

The IP-COM Pro-S8-150W is a 8-port gigabit PoE switch from the IP-COM Profi software controller switch series, specifically designed for scenarios such as small and medium-sized businesses and smart hotels.

The switch can offer PoE output power up to 130W and support centralized control and management by IP-COM Profi software controller, enabling users to deploy networks

The Pro-S8-150W switch supports a static routing protocol that supports Layer 2 isolation and Layer 3 communication, thus achieving efficient and fast Layer 3 forwarding.

Switch supports centralized device management and health monitoring by the Profi controller and supports remote access to cloud services, which is not limited by the device installation location.

IP-COM Pro-S8-150W provides 8x Gigabit PoE ports compliant with IEEE802.3af/at standards. The maximum output power of the entire switch is 130W, and the maximum output power of a single port is 30W. Users can flexibly set the PoE power time, which means that the PoE power can be turned on and off at regular intervals.

The system can automatically generate a network topology. It supports ONVIF-based IP camera detection and LLDP-based network device detection, as well as online/offline status detection for all devices on the network, which improves LAN performance and maintenance, as well as reduces maintenance costs.

Network standards:

• IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x, IEEE802.3af/at, IEEE802.1p, IEEE802.1q, IEEE802.1w, IEEE802.1d, IEEE802.1s

LED Indicators:

• 1x LED Link/Act or PoE for each port
• 1x LED conversion mode Link/One Link/Act for each device
• 1x LED PoE mode conversion for each device
• 1x LED PoE Max for each device
• 1x LED power supply for each device
• 1x LED SYS for each device

Ports:

• 8x Ethernet 10/100/1000 Base-T (PoE) ports
• 1x Ethernet port 10/100/1000 Base-T (data)
• 1x 1000 Base-X SFP port

Protection against lightning:

• Port: 6 kV
• Power supply: 6 kV

Transmission mode:

• Store-and-forward

Switching capacity:

• 20 Gbps

Packet Transfer Rate:

• 14.9 Mpp

Switching buffer:

• 12 Mb/s

MAC Address Table:

• 16k

Input Voltage:

• 100 - 240 V AC 50/60 Hz

PoE Power Supply:

• Ports 1 to 8 support IEEE 802.3af/at standard PoE power
• 1 2 4 5 + and 3 6 7 8 -

Total wear of the switch:

• Power consumption of the whole switch: <150W
• Maximum PoE output power: 130 W

M1/R10/K588/AE6154

• 294 x 179.6 x 44 mm

Environment:

• Operating temperature: 0°C - 45°C
• Operating humidity: (10% - 90%)RH, non-condensing
• Storage temperature: -40°C - 70°C
• Storage humidity: (5% - 90%)RH, non-condensing

Certificates:

• FCC, CE, RoHS

PoE power management:

• PoE port configuration and power supply with priority
• PoE over-temperature protection
• PoE scheduled management
• Support intelligent management and PoE-powered device detection (port status, power assignment and PoE-powered device status)

Security-related functionality:

• Support ARP receiving limit
• Support unknown mac address discard
• Support DoS attack defense
• Support 802.1x security authentication
• Support RADIUS authentication

VLANs:

• IEEE 802.1Q VLAN
• VLAN Layer-3 interfaces
• Support three port modes: Access, Trunk and Hybrid

DHCP:

• Support DHCP server
• Support DHCP relay
• Support DHCP snooping
• Support Option 82 policy configuration

Routing:

• Support inter-VLAN routing
• Support IPv4 static routing
• Support dynamic ARP and static ARP
• Support ARP aging configuration

Port aggregation:

• Support static aggregation
• Support LACP dynamic aggregation
• Support a maximum of 32 aggregation groups and a maximum of 8 member ports in each group

STP (Spanning Tree Protocol):

• Support IEEE 802.1d STP (Spanning Tree Protocol)
• Support IEEE 802.1w RSTP (Rapid Spanning Tree Protocol)
• Support IEEE 802.1s MSTP (Multiple Spanning Tree Protocol)
• Support edge ports
• Support BPDU statistics
• Support BPDU Guard, BPDU Filter
• Support Root Guard, Loop Guard, and Loopback-detection

Multicast:

• IGMP Snooping V1 / V2 / V3
• Support port fast leave

Port mirroring:

• N: 1 port mirroring supported

QoS:

• Support SP (Strict Priority)
• Support SWRR (Simple Weighted Round Robin)
• Support WRR (Weighted Round Robin)
• Support 802.1p port trust mode
• Support DSCP port trust mode
• Support a maximum of 8-queue service quality mapping
• Support Tail Drop
• Support storm suppression
• Support port speed limit

ACL:

• Support MAC ACL
• Support IPv4 ACL

Loading and updating:

• Support FTP/TFTP/HTTP upgrade
• Support con guration import and export

Management and maintenance:

• Support centralized control and management by Profi software controller
• Support CLI configuration
• Support Telnet remote configuration
• Support SNMP V1/V2/V3
• Support web management and maintenance
• Support system logs
• Support log classification
• NTP support
• Support Ping & Tracert tests
• Support memory and CPU monitoring
