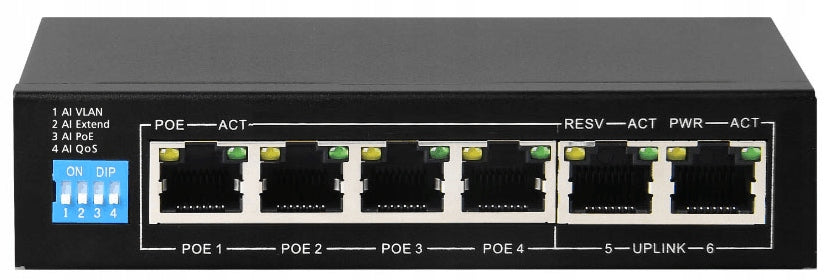

Tinklo jungiklis INTERNEC SPE124E, 6 jungtys (2 įprastos, 4 PoE)

Trumpai apie prekę

Prekė: Tinklo jungiklis INTERNEC SPE124E, 6 jungtys (2 įprastos, 4 PoE). Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: no brand
• Modelis: SPE124H

The SPE124E is a specialized, unmanaged switch for indoor applications, designed to support monitoring systems and other network systems. It provides 4 PoE ports with a bandwidth of 10/100 Mbps (for connecting PoE cameras) and 2 uplink ports (for connecting a recorder, router or another switch). Switch SPE124E offers five operating modes: default, VLAN, extended, AI PoE and QoS, which are selected via the switch.

• 4 PoE ports 10/100 Mbps
• 2 uplink ports 10/100 Mbps
• Total power 60W
• Operating modes: standard, VLAN, extended, AI PoE, QoS

Technical parameters:

Ports

• Number of PoE ports: 4
• Number of uplink ports: 2
• Number of VLAN ports: 4
• Number of Extend ports: 4
• Max speed: 100 Mbps

Standard

• Transmission standard: IEEE802.3i, IEEE802.3u, IEEE802.3x
• Transmission type: Store-and-Forward
• PoE standard: IEEE802.3 af, IEEE802.3 at
• Package forwarding rate: 1.2 Mpps

POE

• Power per port: ≤ 30W
• Total power: ≤ 60W
• PoE Standard: End-span 1/2(+), 3/6(-)

Operating mode

• Standard Mode: Up to 100m on each PoE port at 100Mbps, 100Mbps on uplink ports, communication between all ports ensured
• V-LAN mode: Up to 100m on each PoE port at 100Mbps, 100Mbps on uplink ports, separated PoE ports, communication only via uplink ports
• Extend Mode: 100Mbps on uplink ports, separated PoE ports, communication via uplink ports only, up to 250m on 1-4 ports at 10Mbps
• QoS mode: Sets the priority of video data transmission over other data.
• AI PoE Mode: Detects a malfunctioning PoE device and automatically restarts it.

General

• AC/DC power supply: 48 – 56 VDC
• Power Supply: External
• Working temperature: 0°C ÷ 40°C
• Ambient humidity: 10 ÷ 90%
• Fan: No
• Dimensions: 125 x 75 x 27mm
• Elements included: Power cord, DC power supply
