Tinklo jungiklis IMOU SG108C, 8 RJ45 jungtys, Plug&Play

Trumpai apie prekę

Prekė: Tinklo jungiklis IMOU SG108C, 8 RJ45 jungtys, Plug&Play. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Imou
• Modelis: 535447597

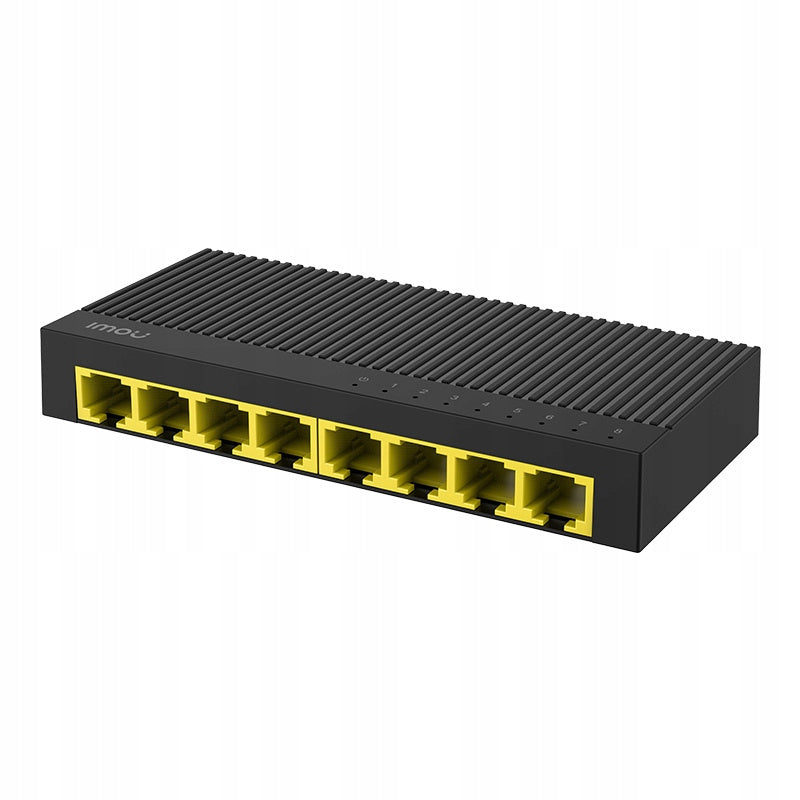

The IMOU SG108C LAN Switch offers 8 RJ45 ports, providing fast and stable network connectivity. It supports automatic speed negotiations in the range of 10/100/1000 Mbps, and the Auto MDI/MDIX function eliminates the need for patch cables. In addition, the 802.3X Flow Control protocol ensures effective control of data flow. Installation of the device is quick and hassle-free, and the Plug & Play function increases the convenience of use.

• Manufacturer: IMOU
• Model: SG108C
• Network port: 8 ports 10/100/1000 Mbps
• PoE support: No
• Working temperature: from 0℃ to 40℃
• Working humidity: from 10 to 90%
• Energy consumption: 3W
• LED indicator: 1x power supply, 8x Link/Ack
• Category: Unmanaged switch
• Switching bandwidth: 16 Gbps
• Package forwarding speed: 1.488Mpps*8
• Package buffer memory: 4Mb
• Jumbo frame: 15K
• MAC table size: 8K
• Overvoltage protection: Common mode: 2 KV; Differential mode: 1 KV
• Power supply: DC5V1A
• Housing material: Plastic
• Installation method: Desk/wall mount
• Dimensions: 133.2 x 62 x 21 mm
• Weight: 79 g

✔ Fast and stable connectivity: Offers 8 RJ45 ports with automatic speed negotiation (10/100/1000 Mbps), allowing you to efficiently manage intense data traffic.

✔ Auto MDI/MDIX function: Automatically recognizes the type of connected cable, eliminating the need for patch cables and simplifying network configuration.

✔ 802.3X Flow Control protocol: Ensures stability and efficiency of data flow, preventing packet loss and network congestion, which is important under heavy load.

✔ Easy installation and Plug & Play operation: Quick installation without the need for complicated configuration and immediate operation of the device make it an ideal solution for users who value simplicity.

✔ High bandwidth: The total bandwidth of 16 Gbps and packet transfer rate of 1.488 Mpps per port enable efficient management of high data traffic.

✔ Containable buffer memory: 4 Mb of packet buffer memory supports efficient handling of network traffic, which is crucial in high-load environments.

Enjoy the convenience of high bandwidth and connectivity that the IMOU SG108C LAN switch provides. With 8 RJ45 ports, this device is ideal for managing intense data traffic and providing the performance needed for modern network applications. Each port supports Auto-Negotiation, allowing you to automatically adjust the data transfer speed from 10 to 1000 Mbps. As a result, the switch is widely compatible with a variety of equipment and allows you to optimize the connection speed according to your current needs, providing you with smooth and efficient network operation, whether you are transferring large files, streaming high-definition video or using advanced applications.

The advanced 802.3X Flow Control function offered by the IMOU switch ensures stability and efficiency of data flow in the network. This flow control mechanism allows you to manage and coordinate data transmission between the switch and connected devices, which is especially important in situations of high network load. Thanks to this, the device is able to prevent the loss of data packets and reduce the risk of network congestion – so it is an excellent solution for both demanding business users and advanced home applications.

The switch is unmanaged, which translates into simplicity in use without the need for complicated configuration. It offers a total bandwidth of 16 Gbps and a packet transfer rate of 1.488 Mpps per port. Packet buffer memory is 4 Mb, which supports efficient handling of network traffic. The device supports Jumbo frames up to 15K and has a MAC array with 8K entries. It also provides surge protection up to 2 KV in common mode and 1 KV in differential mode.

With Auto MDI/MDIX support, the IMOU switch automatically recognizes the type of cable connected, eliminating the need for special patch cables. The applied solution greatly simplifies the network configuration process. An additional advantage is Plug & Play, which is a function that guarantees immediate operation of the device – you do not need to install additional drivers.

The housing of the device is made of high-quality plastic, which translates into lightness (79 g) and durability. The dimensions of the switch are only 133.2 x 62 x 21 mm, so you can freely place it on your desk or mount it on the wall.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer	Imou
Parametry	Number of ports	8
Parametry	EAN (GTIN)	5907980057220
Parametry	Manufacturer code	535447597
