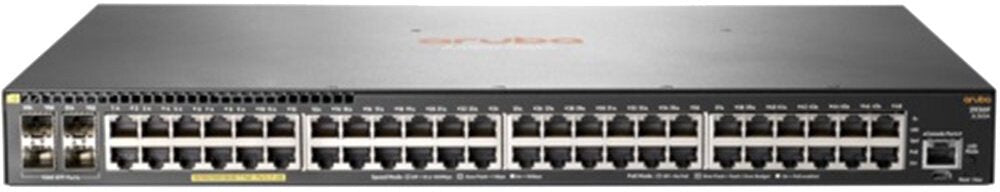

Tinklo jungiklis HPE Aruba 2930F 48G PoE+, 4 SFP

Trumpai apie prekę

Prekė: Tinklo jungiklis HPE Aruba 2930F 48G PoE+, 4 SFP. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: HPE
• Modelis: Aruba 2930F 48G PoE+ 4SFP

HPE Aruba 2930F 48G PoE+ 4SFP Swch

HEWLETT PACKARD ENTERPRISE

The Aruba 2930F series switches are designed for customers creating digital workplaces optimized for mobile users. These entry-level Layer 3 access switches are easy to deploy and operate with advanced security and network management tools such as Aruba ClearPass Policy Manager, Aruba AirWave, and the cloud-based Aruba Central service. The Virtual Switching Framework (VSF) technology provides stack scale and ease of installation at the edge of enterprise networks and in small and medium-sized business or field office networks. The 2930F Series provides SDN performance and support, Access OSPF, 10 GbE parent links, PoE+, reliable QoS, static routing and RIP capabilities, and requires no software license.

Efficient access layer switches

The Aruba 2930F series switches are a powerful, secure and easy-to-use solution for installation at the edge of corporate networks and in small and medium-sized business networks or field offices.

Optimized for the digital workplace with unified management tools such as Aruba ClearPass Policy Manager, Aruba Airwave and Aruba Central. It automatically provides optimal configuration when connected to Aruba access points, allowing you to prioritize PoE, configure your VLAN, and protect against dangerous access points.

Stacking with the Virtual Switching Framework (VSF) technology and convenient, built-in 1 GbE or 10 GbE parent links and PoE+ models ensure adequate network access performance.

The comprehensive set of Layer 3 core features includes OSPF access routing, static routing and RIP, access control lists (ACLs), sFlow and IPv6, and does not require a software license.

Based on the powerful ProVision ASIC chip and support for OpenFlow technology, Aruba 2930F switches are ready to take advantage of SDN applications such as HPE Network Visualizer, Optimizer and Protector.

Performance and power at the network edge

The Aruba 2930F Series switches are designed together with the powerful Aruba ProVision ASIC chip, which provides mobile campus networks with SDN optimizations, ultra-low latency, increased packet buffer and energy consumption adjustment.

The ability to choose the configuration of queues and the associated memory caching allows you to adjust the network operation to specific performance requirements.

The Virtual Switching Framework (VSF) technology enables up to four physical switches to be virtualized into a single logical device, providing a simpler, more transparent and more efficient network.

Security and quality of service you can rely on

The Aruba 2930F series switches offer security and quality of service features that allow you to meet the requirements of constantly changing company policies and compliance standards, as well as protect your data from both internal and external attacks.

Efficient multi-level access security includes source port filtering, RADIUS/TACACS+, SSL, Port Security and MAC address lock.

Specifications: HEWLETT PACKARD ENTERPRISE ARUBA 2930F 48G PoE+ 4SFP+ Switch

• Manufacturer: HPE
• Product Code: JL262A#ABB
• Switch Type: Managed
• Description: HPE Aruba 2930F 48G PoE+ 4SFP+ - Switch - L3 - Yes - 48 x 10/100/1000 + 4 x 1 Gigabit / 10 Gigabit SFP - Rack-mountable
• Device Type: Switch - 48 ports - L3 - Yes - Stackable
• Form Factor: 1U Rack-mountable
• Subtype: Gigabit Ethernet
• Ports: 48 x 10/100/1000 + 4 x 1 Gigabit / 10 Gigabit SFP
• Performance: Throughput: 95.2 Mpps - Switching capacity: 128 Gbps - Latency (1 Gbps): 3.8 μs - Latency (10 Gbps): 1.6 μs
• Capacity: Jumbo frame support: 9220 - IPv4 routing table entries: 10000 - IPv6 routing table entries: 5000
• MAC Address Table Size: 32K entries
• Routing Protocol: OSPF, RIP, RIP-1, RIP-2, BGP, IGMPv2, IGMP, OSPFv2, static IP routing, IGMPv3, OSPFv3, static IPv4 routing, static IPv6 routing, RIPng, MLD, CIDR
• Encryption Algorithm: MD5, SSL
• Authentication Method: RADIUS, PAP, CHAP, TACACS, TACACS+
• Features: Flow control, full duplex capability, DHCP support, BOOTP support, ARP support, VLAN support, IGMP snooping, Syslog support, DiffServ support, IPv6 support, SNTP support, sFlow, Spanning Tree Protocol (STP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control Lists (ACL) support, Quality of Service (QoS), Jumbo Frames support, DHCP server, STP Root Guard, Uni-Directional Link Detection (UDLD), LLDP support, Link Aggregation Control Protocol (LACP), Management Information Base (MIB), MAC address lockout, dynamic ARP protection, DHCP protection, Dynamic VLAN Support (GVRP), Multiple VLAN Registration Protocol (MVRP), Neighbor Discovery Protocol (NDP), Class of Service (CoS), Type of Service (ToS), OpenFlow support, CPU protection, Internet Control Message Protocol (ICMP), ICMP Router Discovery Protocol (IRDP), Virtual Extensible LAN (VXLAN), Management Information Base (MIB) II
• Compliant Standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX
• PoE+: Yes
• Processor: 1 x ARM Cortex-A9: 1.016 GHz
• RAM: 1 GB DDR3 SDRAM
• Flash Memory: 4 GB
• Interfaces: 48 x 1000Base-T RJ-45 - 4 x Gigabit / 10Gbit LAN SFP - 1 x Serial (console)
• Expansion Slots: 1 (total) / 1 (free) expansion slot
• Installed Modules Quantity (max): 0 (installed) / 4 (max.)
• Power Supply: Internal power adapter
• Quantity Installed: 1
• Wattage: 740
• Mounting screws, 4 mounting ears, 4 bumper feet, zip tie: CISPR 22 Class A, CISPR 24, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, ICES-003 Class A, UL 60950-1 Second Edition, CSA C22.2 No. 60950-1-07 Second Edition, VCCI Class A, IEC 60825-1:2007, CNS 13438, EN 55024:2010, EN 55022:2010, IEC 60950-1:2005 + A1:2009 + A2:2013, EN 60825-1:2007, FCC CFR47 Part 15 A, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013
• Width: 44.25 cm
• Depth: 20.02 cm
• Height: 4.39 cm
• Weight: 2.41 kg

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer	HPE
Parametry	Number of ports	52
Parametry	Number of LAN (RJ-45) ports	1
Parametry	LAN port operating standard	not specified
Parametry	EAN (GTIN)	190017005768
Parametry	Manufacturer code	Aruba 2930F 48G PoE+ 4SFP
