Piegādes termiņš katrai precei ir norādīts pie cenas bloka.
Piegāde visā Latvijā: bez maksas.
Trumpai apie prekę
Prekė: Tinklo jungiklis Hikvision DS-XS10-P. Kategorija: Jungikliai ir koncentratoriai.
- Gamintojas: Hikvision
- Modelis: 569530847
122.24
69634

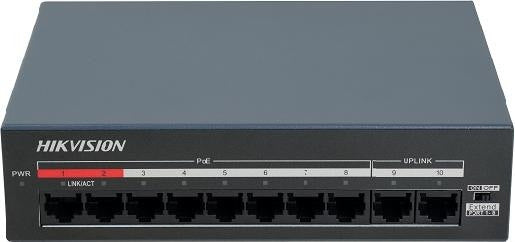

Hikvision DS-XS10-P Switch
Model: DS-XS10-P
Key features
- 8-port unmanaged PoE Fast Ethernet switch
- 8 x RJ45 10/100 Mbps PoE ports and 2 x RJ45 10/100 Mbps ports
- PoE power budget for the entire device: 60 W
- Long-distance transmission support
- High priority port support
Technical specifications
Model
DS-XS10-P
Case
Metal material
Net weight
0.56 kg (1.23 lbs)
Gross weight
0.64 kg (1.41 lbs)

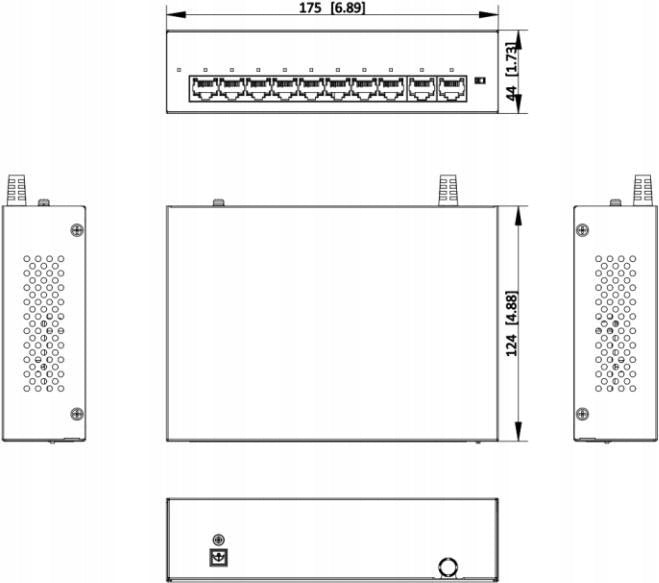

Dimensions (width × height × depth )
175.0 mm × 44.0 mm × 124.0 mm (6.89'' × 1.73'' × 4.88'')
Operating temperature
0 °C to 40 °C (32 °F to 104 °F)
Storage temperature
-40 °C to 85 °C (-40 °F to 185 °F)
Operating humidity
5% to 95% (non-condensing)
Relative humidity
5% to 95% (non-condensing)
Power supply
220V AC, 50Hz, 1.5A
Max. Energy consumption
60 W
Power consumption in standby mode
3.4 W

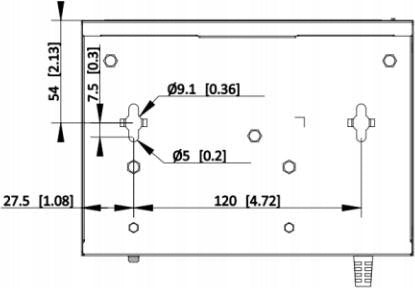

Mounting type
On the desk, on the wall
Surge protection
2 kV
Network parameters
Ports
8 × 10/100 Mb/s PoE port, 2 × 10/100 Mb/s RJ45 port
MAC address table
2 K
Switching performance
2 Gb/s
Packet forwarding speed
1.49 million operations per second
Internal cache
0.77 MB
PoE power supply
PoE port
PoE: Ports 1 to 8
Max. Port power supply
30 W
PoE power budget
60 W
Dialing function
Long-distance transmission
Long-distance transmission
Ports 1 to 8: Up to 300 m. Long range performance may vary depending on camera model or cable condition.
Approval
EMC
CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)
Without
Technical specifications
Model
DS-XS10-P
Case
Metal material
Net weight
0.56 kg (1.23 lbs)
Gross weight
0.64 kg (1.41 lbs)
Dimensions (width × height × depth )
175.0 mm × 44.0 mm × 124.0 mm (6.89'' × 1.73'' × 4.88'')
Operating temperature
0 °C to 40 °C (32 °F to 104 °F)
Storage temperature
-40 °C to 85 °C (-40 °F to 185 °F)
Operating humidity
5% to 95% (non-condensing)
Relative humidity
5% to 95% (non-condensing)
Power supply
220V AC, 50Hz, 1.5A
Max. Energy consumption
60 W
Power consumption in standby mode
3.4 W
Mounting type
On the desk, on the wall
Surge protection
2 kV
Network parameters
Ports
8 × 10/100 Mb/s PoE port, 2 × 10/100 Mb/s RJ45 port
MAC address table
2 K
Switching performance
2 Gb/s
Packet forwarding speed
1.49 million operations per second
Internal cache
0.77 MB
PoE power supply
PoE port
PoE: Ports 1 to 8
Max. Port power supply
30 W
PoE power budget
60 W
Dialing function
Long-distance transmission
Long-distance transmission
Ports 1 to 8: Up to 300 m. Long range performance may vary depending on camera model or cable condition.
Approval
EMC
CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)
Without
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer | Hikvision |
| Parametry | Product weight with unit packaging | 0.85 kg |
| Parametry | Number of ports | 10 |
| Parametry | EAN (GTIN) | 5908066532488 |
| Parametry | Manufacturer code | 569530847 |
| Parametry | Packaging status | original |
