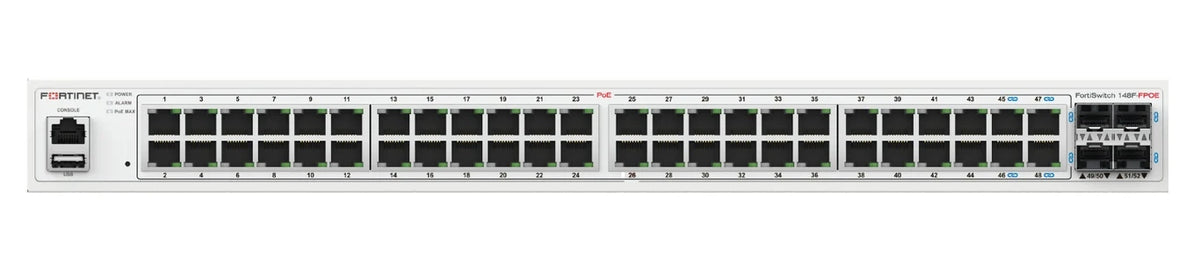

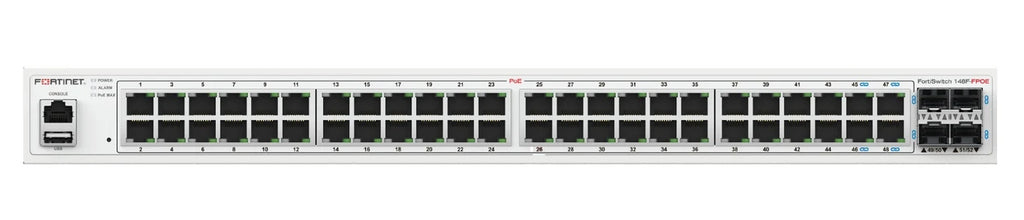

Tinklo jungiklis Fortinet FS-148F-FPOE, L2, Gigabit Ethernet, PoE

Trumpai apie prekę

Prekė: Tinklo jungiklis Fortinet FS-148F-FPOE, L2, Gigabit Ethernet, PoE. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Fortinet
• Modelis: 0842382190067

Fortinet FS-148F-FPOE. Switch layer: L2. Basic RJ-45 Ethernet Switching Ports Type: Gigabit Ethernet (10/100/1000), Basic RJ-45 Switching Number of Ethernet Ports: 48. Address table size: 32000 inputs, Routing/switching throughput: 176 Gbit/s. Communication standards: IEEE 802.3af, IEEE 802.3at. PoE support. Rack Mount Capabilities, Layout: 1U

✏ The most important technical parameters:

• Power over Ethernet (PoE) - PoE Support: Yes
• Power over Ethernet (PoE) - Total Power over Ethernet (PoE) budget: 740 W
• Construction - Rack mounting options: Yes
• Design - Colour of product: White
• Design - Layout: 1U
• Performance - Internal storage capacity: 512 MB
• Performance - Access Control List (ACL): Yes
• Data carrier - Flash memory size: 64 MB
• Ports and interfaces - Basic RJ-45 switching Number of Ethernet ports: 48
• Ports and interfaces - Basic RJ-45 Ethernet Switching Ports Type: Gigabit Ethernet (10/100/1000)
• Ports and interfaces - Number of Fast Ethernet (PoE) ports: 48
• Ports and interfaces - Number of Gigabit Ethernet ports: 48
• Ports and interfaces - Number of SFP+ slots: 4
• Network - 10G support: Yes
• Network - Communication standards: IEEE 802.3af, IEEE 802.3at
• Network - VLAN support: Yes
• Network - Connection aggregator: Yes
• Network - Spanning tree protocol: Yes
• Network - Number of VLANs: 4000
• Data transfer - Routing/switching bandwidth: 176 Gbit/s
• Data transfer - Bandwidth: 260 Mpps
• Data transfer - Address table size: 32000 inputs
• Data transfer - Packet buffer memory: 2 MB
• Weight and sizes - Product height: 44 mm
• Weight and sizes - Product weight: 4,68 kg
• Weight and sizes - Product width: 440 mm
• Weight and sizes - Product depth: 310 mm
• Management features - Switch layer: L2
• Features - Memory Type: DDR3-SDRAM
• Protection - Access Control List (ACL) Policy: 768
• Features - MTBF (Mean Interval Period): 87660 h
• Ergonomics - Certificates: FCC, CE, RCM, VCCI, BSMI, UL, CB, RoHS2
• Power - Maximum power consumption: 895,7 W
• Power - Backup Power Support (RPS): No
• Power - Power consumption: 893,5 W
• Power - AC input voltage: 100 - 240 V
• Power - AC input frequency: 50 - 60 Hz
• Working conditions - Temperature range (operation): 0 - 45 °C
• Working conditions - Temperature range (storage): -20 - 70 °C
• Working conditions - Relative humidity range: 10 - 90%
• Working conditions - Heat emission: 198,46 BTU/h
• Logistics data - Harmonised system code (HS): 85176990
• Classification - Manufacturer code:
• Classification - EAN: 0842382190067
• Classification - Product ID: 85885171
