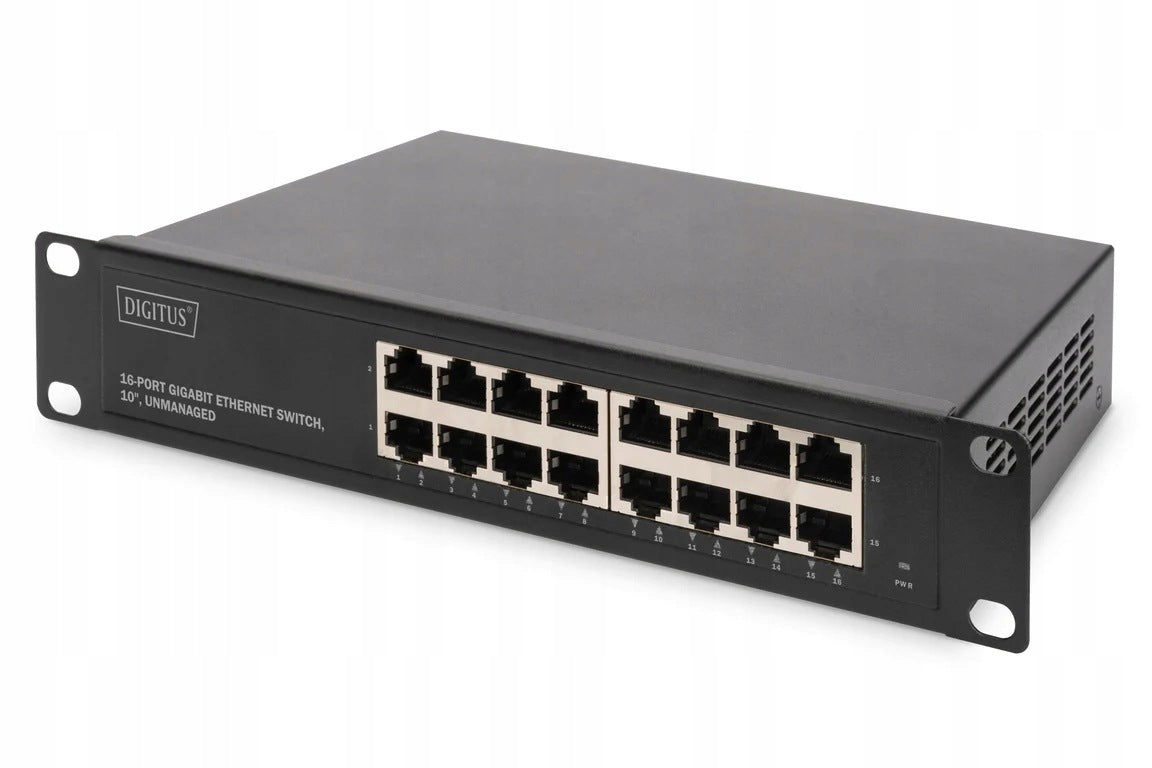

Tinklo jungiklis Digitus, 10 colių, 16 prievadų, Gigabit Ethernet, nevaldomas

Trumpai apie prekę

Prekė: Tinklo jungiklis Digitus, 10 colių, 16 prievadų, Gigabit Ethernet, nevaldomas. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Digitus
• Modelis: DN-80115-1

Digitus 10-inch Gigabit Ethernet switch, 16 ports, unmanaged. Switch Type: Not Managed. Basic RJ-45 Ethernet Switching Ports Type: Gigabit Ethernet (10/100/1000), Basic RJ-45 Switching Number of Ethernet Ports: 16. Full duplex. Address table size: 8000 inputs, Routing/switching throughput: 32 Gbit/s. Communication standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x. Power connector: AC input socket. Rack Mount Capabilities, Layout: 1U

✏ The most important technical parameters:

• Design - Layout: 1U
• Construction - Housing material: Metal
• Construction - Vandal-proof: No
• Network - 10G support: No
• Network - Communication standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
• Network - Automatic MDI/MDI-X: Yes
• Network - Copper Ethernet cabling technology: 10BASE-T, 100BASE-T, 1000BASE-T
• Network - Data transfer speed over Ethernet LAN: 10,100,1000 Mbit/s
• Network - Full duplex: Yes
• Network - Half duplex: Yes
• Network - Ethernet interface type: Gigabit Ethernet
• Network - VLAN support: No
• Ports and interfaces - Basic RJ-45 switching Number of Ethernet ports: 16
• Ports and interfaces - Basic RJ-45 Ethernet Switching Ports Type: Gigabit Ethernet (10/100/1000)
• Ports and interfaces - Number of Gigabit Ethernet ports: 16
• Ports and interfaces - Power connector: AC input socket
• Features - Colour of product: Grey
• Features - LEDs: Yes
• Features - Suitable for outdoor use: No
• Features - PoE Support: No
• Features - Rack mounting options: Yes
• Performance - Without windmill: Yes
• Weight and sizes - Product width: 250 mm
• Weight and sizes - Product depth: 150 mm
• Weight and sizes - Product height: 42 mm
• Data transfer - Routing/switching bandwidth: 32 Gbit/s
• Data transfer - Forwarding speed: 1488 Mpps
• Data transfer - Address table size: 8000 inputs
• Data transfer - Store-and-forward: Yes
• Package Contents - Cables: AC
• Power - Power Source: AC
• Power - Maximum power consumption: 15 W
• Power - AC input frequency: 50/60 Hz
• Power - AC input voltage: 100 - 240 V
• Working conditions - Temperature range (operation): 0 - 40 °C
• Working conditions - Temperature range (storage): -10 - 70 °C
• Working conditions - Relative humidity range: 5 - 95%
• Packaging data - Quick Start Guide: Yes
• Packaging data - Package width: 320 mm
• Packaging data - Package depth: 240 mm
• Packaging data - Package height: 37 mm
• Packaging data - Weight including packaging: 1,44 kg
• Packaging data - Packaging type: Box
• Packaging data - Package capacity: 5145,6 cm³
• Management Features - Switch Type: Not Managed
• Power Supply - Power Supply Included: Yes
• Power supply - Power location: Internal
• Logistics data - Height of reference box (external): 490 mm
• Logistics data - Width of bulk box (external): 345 mm
• Logistics data - Gross weight of main housing (external): 12,8 kg
• Logistics data - Length of main box (external): 330 mm
• Logistics data - Products in main box (external): 8 pcs.
• Logistics data - Harmonised system code (HS): 85176990
• Other functions - Country of origin: China
• Technical details - Gross weight of the mailing box (internal): 1,6 kg
• Technical details - Products for shipping box (internal): 1 pc.
• Classification - Manufacturer code: DN-80115-1
• Classification - EAN: 4016032509295
• Classification - Product ID: 143730596
