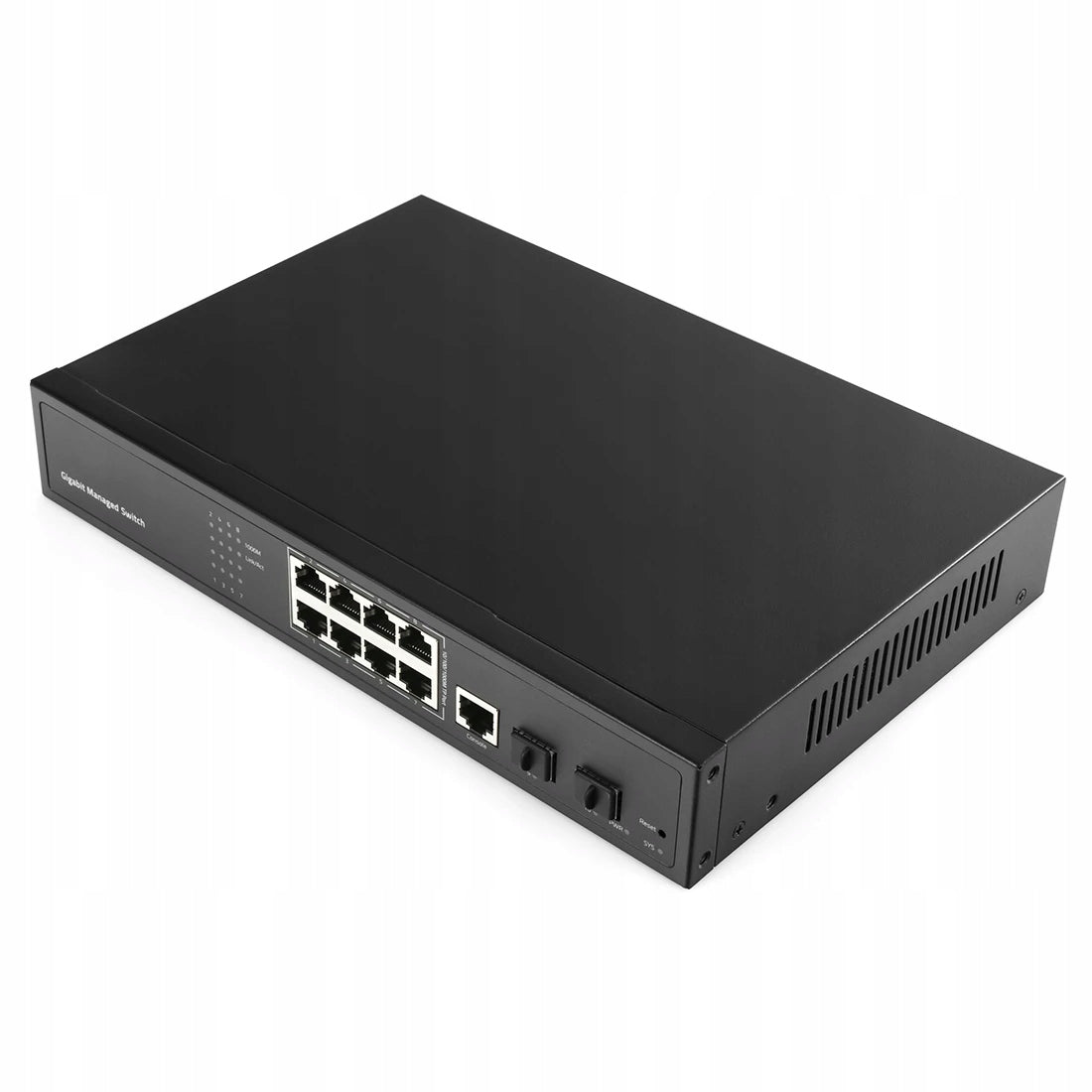

Tinklo jungiklis Cudy GS2008S2, valdomas, 8 LAN, 2 SFP, gigabitinis

Trumpai apie prekę

Prekė: Tinklo jungiklis Cudy GS2008S2, valdomas, 8 LAN, 2 SFP, gigabitinis. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Cudy
• Modelis: GS2008S2

Switch GS2008S2 L2 8xGE 2xSPF

GS2008S2 Switch 8-Port Gigabit + 2-Port Gigabit SFP L2 Managed

• Compliance with IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3x, IEEE802.3z, EEE802.3ad, IEEE802.1P,IEEE802.1Q
• IEEE802.3x Flow control support in Full-duplex and Half-duplex modes
• Supports automatic memorization and renewal of MAC addresses
• Ports: 8 x 10/100Mbps Auto-negotiation RJ45; 2 x 100/1000Mbps SFP
• Support Auto MDI/MDIX function and automatic negotiation, automatic mode selection and transmission speed
• Forwarding Mode: Store and forward
• Supports Storm Control, QoS, Port Mirroring, Link Aggregation Protocol
• LED Indicators
• Internal power supply

Product Features:

• Supported protocols and standards: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3x, IEEE802.3z, EEE802.3ad, IEEE802.1P, IEEE802.1Q,
• Management, monitoring, configuration: System information, Ping Test /Traceroute, Factory defualt, Backup/upgrade Management, Configuration Management,
• Security: Broadcast / Uncast / Multicast Storm Control, IEEE 802.1x, Radius, TACACS+, DHCP Snooping/DHCP Relay, DHCP Server, ERPS, IP Source Guard, ARP Check, DAI,
• Number of ports 10/100/1000 Mbps: 10
• Network architecture (switches): GigabitEthernet
• Capacity (Gbps switches): 20 Gbps
• Number of PoE ports (PoE + PoE+): None
• Console port: Yes
• Environmental requirements: Operating temperature: 0 - 45 C, Storage temperature: -40 - 70 C, Operating humidity: 10% ~ 90% RH without condensation, Storage humidity: 5% ~ 90% RH without condensation,
• switching systems: L2
• Number of COMBO ports: None
• Forward mode: Store-and-forward
• Power supply: AC 100-240V/50-60Hz 12/1.5A
• Number of PoE+ ports: None
• Number of QSFP+ ports: None
• Power supply (switches): Internal
• Transmission speed (Mpps): 14.88 Mpps
• Housing type: Desktop (PC/Switche)
• Power consumption: 7.35 W
• QoS: WRR (Weighted Round Robin), Port based QoS, IEEE 802.1p Class of Service, DSCP-based QoS, QoS basic mode, QoS advanced mode (Policy based),
• VLAN: Port based VLAN, Private VLAN, MAC based VLAN, Voice VLAN, Gvrp,
• Application (switches): Home and small office (up to 16 ports)
• Number of SFP+ ports: None
• Switch class: Managed
• Other functions: IP Configuration (IPV4, IPV6), User Configuration, Time Settings (SNTP), Log Management, SNMP Management (V1,V2C,V3), RMON (1,2,3,9), MAC Address Setting: Static Mac Setting, MAC Filtering, Dynamic Address Learn/Setting,
• Number of 10Gb ports: None
• Support Jumbo frames: Yes
• Number of ports 10/100 Mbps: None
• Dimensions: 280 x 180 x 44 mm
• Number of SFP ports: 2
• Stackable: No
• Mac address table size: 8000
• Number of ports 10/100/1000/2500 Mbps: None
• Fan (switches): No
• Number of SFP56 ports: None

Specifications
