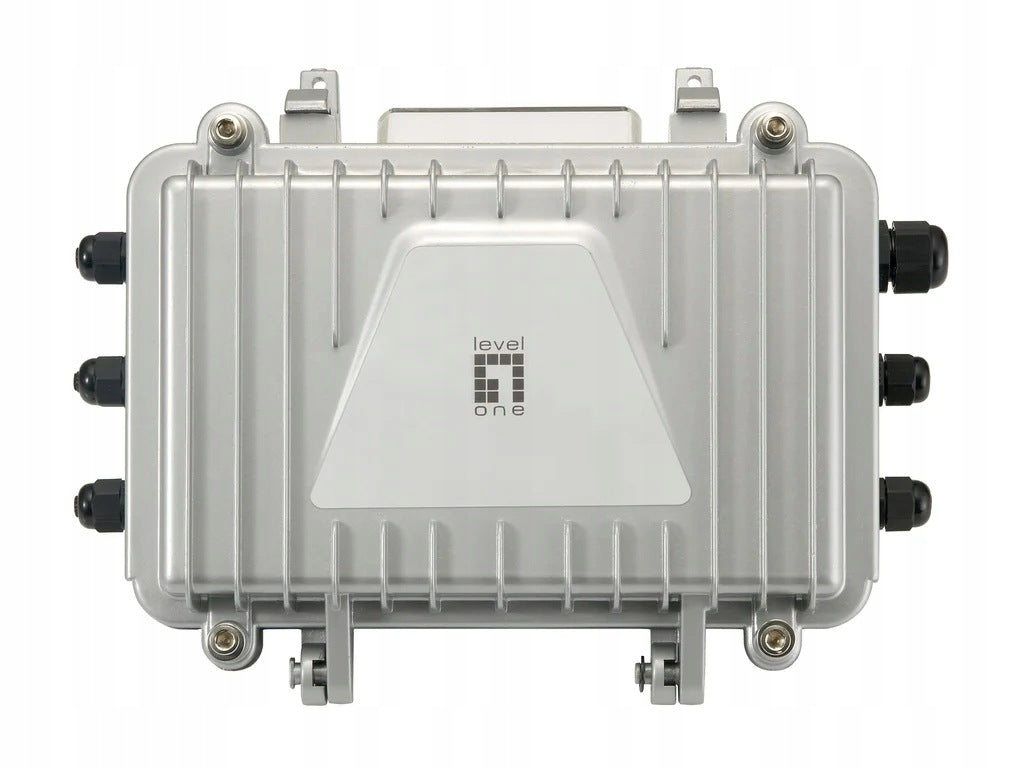

Tinklo imtuvas LevelOne PFE-1014R, pilkas

Trumpai apie prekę

Prekė: Tinklo imtuvas LevelOne PFE-1014R, pilkas. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: NoName
• Modelis: PFE-1014R

LevelOne PFE-1014R Model: Network Receiver, Maximum Transfer Distance: 2000 m, Real Data Transfer Rate: 100 Mbit/s. Wiring Technology: 10/100Base-T(X), Communication Standards: IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u. Fiber Optic Connector: LC. Product color: Grey, Mounting type: Wall, LEDs: LAN, PoE, Power supply. Power consumption: 20 W, Maximum power consumption: 60 W, Power over Ethernet (PoE) voltage range: 47 - 56 V

✏ The most important technical parameters:

• Working conditions - Relative humidity range: 10 - 90%
• Working conditions - Permissible relative humidity: 5 - 90%
• Working conditions - Temperature range (operation): -40 - 60 °C
• Working conditions - Temperature range (storage): 0 - 60 °C
• Power over Ethernet (PoE) - Number of Fast Ethernet (PoE) ports: 4
• Features - Model: Network Receiver
• Features - Real data transfer rate: 100 Mbit/s
• Features - Maximum transfer distance: 2000 m
• Features - Certificates: CE/FCC
• Light - Fiber Optic Connector: LC
• Data transfer - Address table size: 1000 inputs
• Data transfer - Packet forwarding range (10 Mbps): 14880 pps
• Data transfer - Packet forwarding range (100 Mbps): 148000 pps
• Network - Wiring technology: 10/100Base-T(X)
• Network - Communication standards: IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
• Network - Automatic MDIX IEEE: Yes
• Network - Flow control support: Yes
• Network - Two-way duplex transmission: Full, Half-duplex
• Design - Colour of product: Grey
• Design - LEDs: LAN, PoE, Power supply
• Ports and interfaces - Number of Ethernet LAN ports (RJ-45): 4
• Ports and interfaces - Number of ports: 1
• Ports and interfaces - Terminal port locking: Yes
• Power - Power consumption: 20 W
• Power - Maximum power consumption: 60 W
• Power - PoE Support: Yes
• Power - Power over Ethernet (PoE) voltage range: 47 - 56 V
• Strength - IP rating: IP66
• Weight and sizes - Product weight: 1 kg
• Weight and sizes - Product width: 240 mm
• Weight and sizes - Product depth: 200 mm
• Weight and sizes - Product height: 72 mm
• Packaging data - Package width: 250 mm
• Packaging data - Package depth: 210 mm
• Packaging data - Package height: 85 mm
• Packaging data - Weight including packaging: 200 g
• Content of the package - Quick Start Guide: Yes
• Package Contents - Cables: AC
• Content of packaging - Packaging type: Box
• Logistics data - Harmonised system code (HS): 85176990
• Logistics data - Country of origin: Taiwan
• Technical details - Mounting type: Wall
• Classification - Manufacturer code: PFE-1014R
• Classification - EAN: 4015867186916
• Classification - Product ID: 21602320
